TM-H140PN

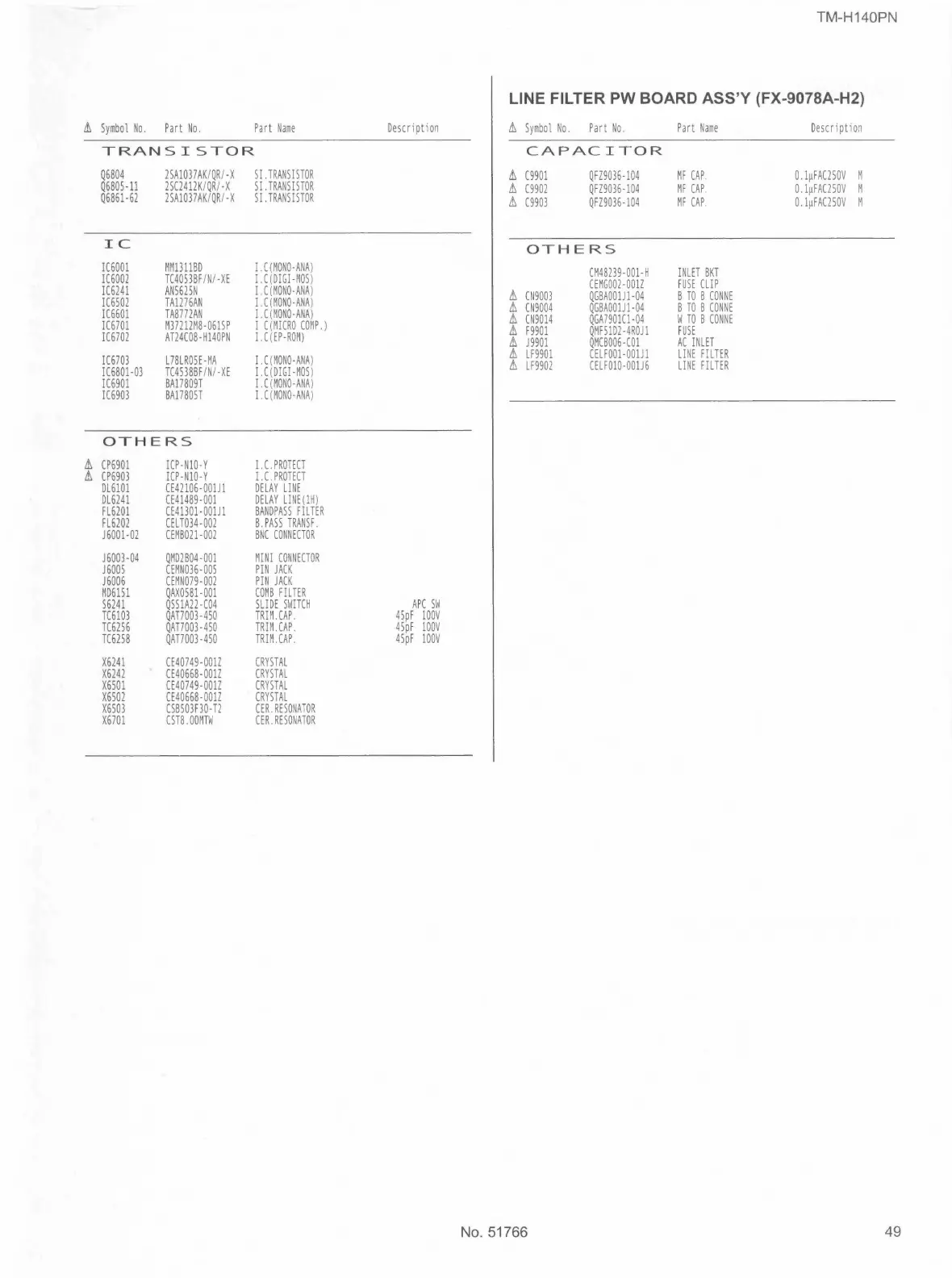

LINE FILTER PW BOARD ASS'Y (FX-9078A-H2)
it Symbol No. Part No. Part Name
Des er i pt ion
it Symbol No.
Part No. Pa rt Name Description
TRANSISTOR
CAPACITOR
Q6804
2SA1037AK/QR/-X SI. TRANSISTOR
t:,
(9901
QFZ9036-104 MF CAP.
0. lµFAC250V
Q6805-11
2SC2412K/QR/-X SI. TRANSISTOR
it C9902
QFZ9036-104 MF CAP.
O. lµFAC250V
06861-62
2SA1037AK/QR/-X SI. TRANSISTOR
it
(9903
QFZ9036-104
MF CAP. 0. lµFAC250V
IC
OTHERS
1(6001
MM13118D
I. C (MONO-ANA)
CM48239-001-H
INLET BKT
1(6002 TC40538F /NI-XE I .C(DIGI-MOS)
CEMG002-001Z
FUSE CLIP
1(6241
AN5625N
I. C (MONO-ANA)
it
CN9003
QGBAOOlJ 1-04
8 TO B CONNE
1(6502
TA1276AN
I. C (MONO-ANA)
it CN9004 QGBAOOlJ 1-04 8 TO B CONNE
1(6601
TA8772AN
I. C (MONO-ANA)
it CN9014
QGA7901Cl-04
W TO B CONNE
1(6701
M37212M8-0615P I C(MICRO COMP.)
it F9901
QHF51D2-4ROJ 1 FUSE
1(6702
AT24C08-H140PN
I.C(EP-ROM)
it J9901
QHCB006-CO 1 AC INLET
IC6703 L 78LR05E-HA
I .((MONO-ANA)
it LF9901
CELFOOl-OOlJ 1 LINE FILTER
1(6801-03
TC4538BF /N/-XE
I .C(DIGI-MOS)
it LF9902
CELF010-001J6 LINE FILTER
1(6901
BAl 7809T
I. ((MONO-ANA)
1(6903
BAl 7805T
I. C (MONO-ANA)
OTHERS
it CP6901
ICP-NlO-Y
I. C. PROTECT
it CP6903
ICP-NlO-Y I. C. PROTECT
DL6101 CE42106-001Jl
DELAY LINE
DL6241
CE41489-001 DELAY LINE (lH)
FL6201 CE41301-001J 1
BANDPASS FILTER
FL6202
CELT034-002
B. PASS TRANSF.
J6001-02
CEH8021-002 BNC CONNECTOR
J6003-04
QMD2B04-001 MINI CONNECTOR
J6005
CEMN036-005 PIN JACK
J6006
CEMN079-002
PIN JACK
MD6151
QAX0581-001 COMB FILTER
56241
QSS1A22-C04 SLIDE SWITCH APC SW
TC6103
QAT7003-450 TRIM.CAP.
45pF lOOV
TC6256
QAT7003-450 TRIM. CAP.
45pF lOOV
TC6258
QAT7003-450 TRIM. CAP.
45pF 100V
X6241 CE40749-001Z CRYSTAL
X6242 CE40668-001Z CRYSTAL
X6501 CE40749-001Z CRYSTAL
X6502 CE40668-001Z CRYSTAL
X6503
CSB503F30-T2 CER. RESONATOR
X6701 CSTB.OOMTW CER. RESONATOR
No. 51766
49
