JVC TM-H140PN

TM-H140PN

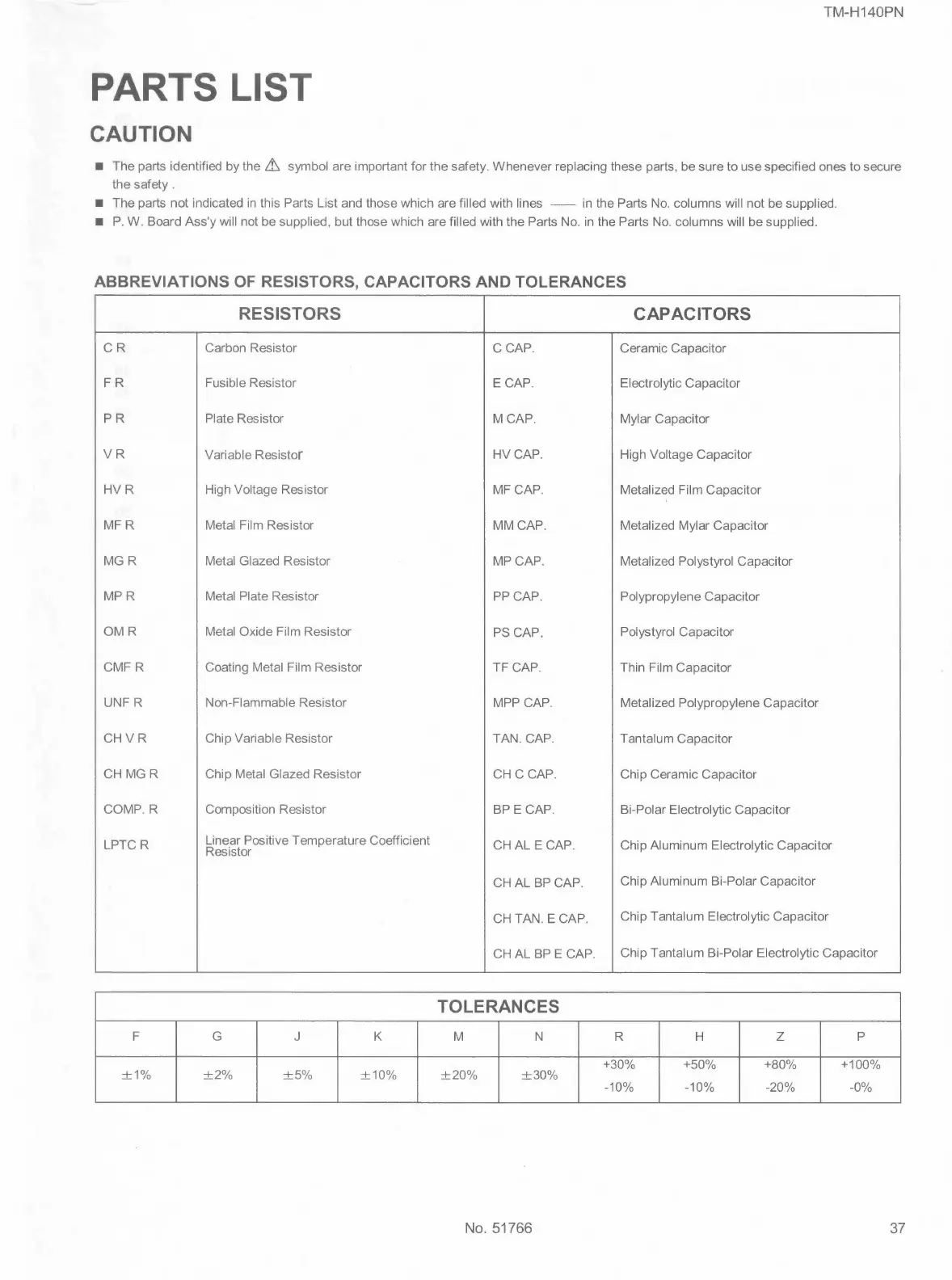

PARTS LIST
CAUTION
■ The parts identified by the Lt. symbol are important for the safety. Whenever replacing these parts, be sure to use specified ones to secure
the safety.
■ The parts not indicated in this Parts List and those which are filled with lines -- in the Parts No. columns will not be supplied.
■ P. W. Board Ass'y will not be supplied, but those which are filled with the Parts No. in the Parts No. columns will be supplied.
ABBREVIATIONS OF RESISTORS, CAPACITORS AND TOLERANCES
RESISTORS
CAPACITORS
CR
Carbon Resistor
CCAP. Ceramic Capacitor
FR Fusible Resistor
ECAP. Electrolytic Capacitor
PR Plate Resistor
MCAP. Mylar Capacitor
VR
Variable Resistor
HVCAP. High Voltage Capacitor
HVR
High Voltage Resistor MF CAP.
Metalized Film Capacitor
MFR Metal Film Resistor
MM CAP. Metalized Mylar Capacitor
MGR Metal Glazed Resistor MP CAP.
Metalized Polystyrol Capacitor
MPR Metal Plate Resistor
PP CAP. Polypropylene Capacitor
OMR Metal Oxide Film Resistor
PS CAP.
Polystyrol Capacitor
CMFR Coating Metal Film Resistor TF CAP.
Thin Film Capacitor
UNF R Non-Flammable Resistor
MPP CAP. Metalized Polypropylene Capacitor
CHVR Chip Variable Resistor TAN. CAP. Tantalum Capacitor
CH MGR Chip Metal Glazed Resistor
CH C CAP. Chip Ceramic Capacitor
COMP. R
Composition Resistor BP E CAP. Bi-Polar Electrolytic Capacitor
LPTC R
Linear Positive Temperature Coefficient
Resistor
CH ALE CAP. Chip Aluminum Electrolytic Capacitor
CHAL BP CAP.
Chip Aluminum Bi-Polar Capacitor
CH TAN. E CAP.
Chip Tantalum Electrolytic Capacitor
CH AL BP E CAP.
Chip Tantalum Bi-Polar Electrolytic Capacitor
TOLERANCES
F
G J K M N R H z
p
+30% +50% +80%
+100%
±1% ±2% ±5% ±10%
±20% ±30%
-10% -10% -20% -0%
No. 51766 37
