12
EXIT
CHROMA MENU
PHASE BRIGHT
CONTRAST VOLUME/SELECT
< MENU >
4
APERTURE : 00
ADJ. BAR POSI. :
LOWER
COLOR TEMP. : 6500
COLOR SYSTEM : AUTO
COMP. LEVEL : 00
RUSH DELAY : STD.
Menu items Purpose Setting range
APERTURE Picture aperture level
ADJ.BAR POSI Volume bar position
COLOR TEMP. Color temperature of white
balance
COLOR SYSTEM Color system
COMPO. LEVEL* Component level
RUSH DELAY Delay time
Front panel Function
Contents
button displayed
+ Increase (to max. value)
4
Forward the setting value
– Decrease (to min. value)
1
Reverse the setting value
VOLUME/
SELECT (–)
VOLUME/
SELECT (+)
Front panel Function
Contents
button displayed
CHROMA/ Forward selection mark (
4
)
PHASE
CONTRAST/ Reverse selection mark (
4
)
BRIGHT
Front panel Function
Contents
button displayed
MENU EXIT
Quit (or Release) the <MENU>
screen
1
2
3
4

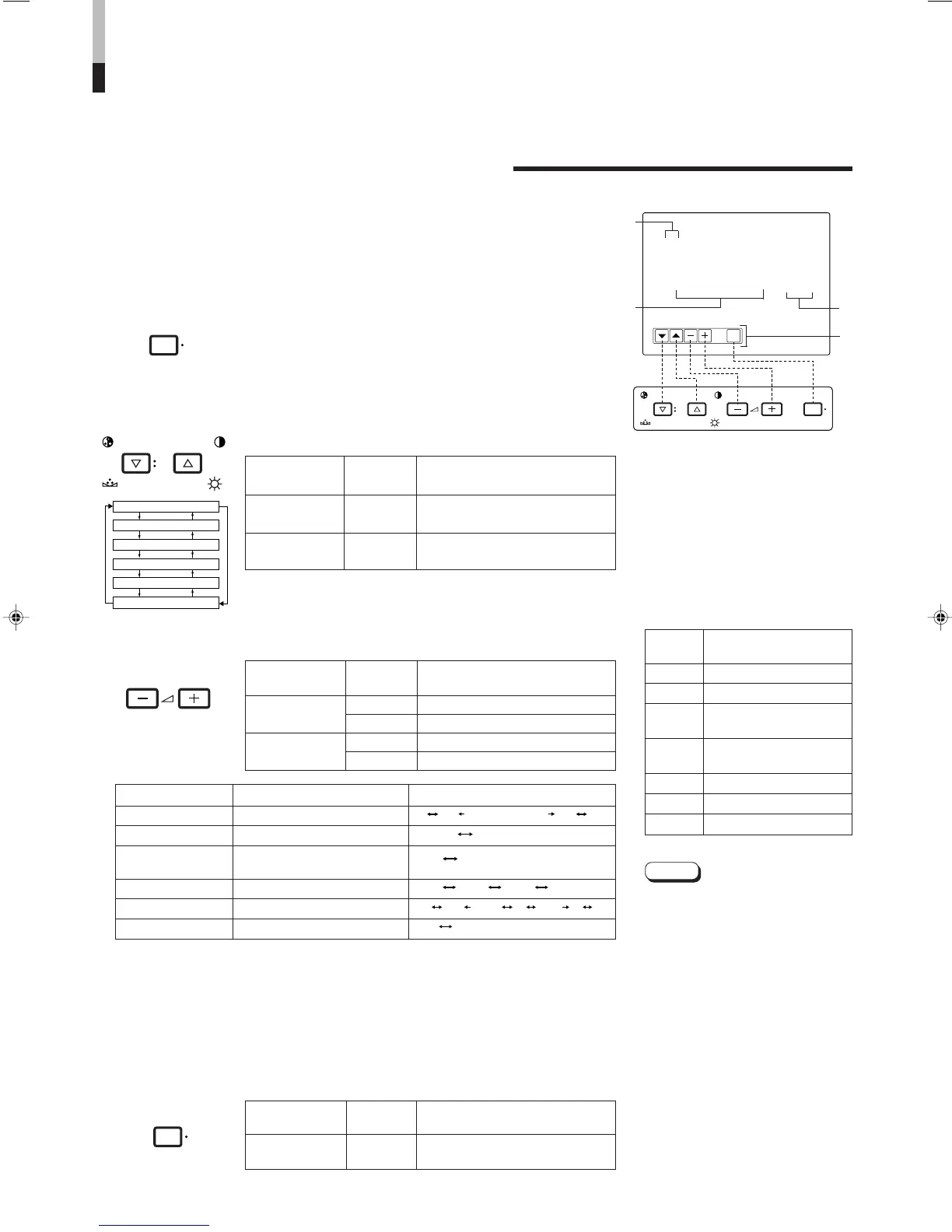

HOW TO USE THE MENU FUNCTIONS
• APERTURE • COLOR SYSTEM
• ADJ. BAR POSI. • COMPO. LEVEL*
• COLOR TEMP. • RUSH DELAY
You can set the following menu items.
Set them depending on your needs.
1. Press the MENU button.
The <MENU> screen is displayed.
* The on-screen display goes off automatically after about five
minutes with operation performed.
2. Press the CHROMA/PHASE or CONTRAST/BRIGHT
button to select MENU items.
A selection mark (
4
) is put next to the selected item.
APERTURE
ADJ. BAR POSI.
COLOR TEMP.
COLOR SYSTEM
COMPO. LEVEL*
RUSH DELAY
3. Press the VOLUME/SELECT buttons to set.
4. If you want to set the other menu items, repeat
procedures 2 and 3.
5. Press the MENU button to quit.
1 Selection mark (
4
): Indicates the
menu item you select.
2 Menu item: Menu items you can
select.
3 Setting display: Indicates the current
settings (value).
4 Function display: The functions of
the front panel buttons (5 buttons on
the left) correspond to the function
displayed.
<MENU> screen
<Front panel buttons>
Function
Contents
displayed
Forward the menu item.
Reverse the menu item.
– Lower the adjustment
value. (to the minimum)
+ Raise the adjustment
value. (to the maximum)
4
Forward the setting value.
1
Reverse the setting value.
EXIT Exits the <MENU> screen.
DISPLAY AND SELECTION IN THE <MENU>
SCREEN MODE (SETTING)
CHROMA
PHASE BRIGHT
CONTRAST
* For normal use, leave the COLOR SYSTEM setting to AUTO.
If reception is unsatisfactory in AUTO position, set it to the appropriate color system mode (NTSC or PAL).
* COMPO. LEVEL is displayed only with component serial digital (SDI) input. (Shown with INPUT-C and
INPUT-D except for RGB input.)
00 +01 +39 +40
• • • • • • • • • • • •
–40 –39 – 01 00 +1 +9 +10
• • • •
Note:
● RUSH DELAY sets the delay between
the time the power switch is pressed
and the time power is actually
supplied to the monitor’s circuits.
STD. : Power turns on approximately
1 second after the power
switch is pressed.
SLOW : Power turns on approximately
3 seconds after the power
switch is pressed.
* When turning on multiple Color-
Video Monitors simultaneously, it is
recommended to use STD. or
SLOW settings to reduce the rush
current of the entire system.
LCT1025-002A-H(EN) 02.4.25, 1:31 PM14
