JVC TM-H1750CG

ENGLISH
POWER
CHROMA MENU
ASPECT
INPUT SELECT
UNDER
SCAN
COLOR
OFF
BLUE
CHECK
PHASE
TM-H1950CG
BRIGHT
CONTRAST VOLUME/SELECT
AB
SLOT
CD
440 (17-3/8")
496 (19-5/8")
485 (19-1/9")
375 (14-7/8")
*
380.4 (15")
284.3 (11-1/4")
*
375 (14-7/8")
195.5 (7-3/4")
1.5
(1/16")
ø20
(7/8")
95.7
(3-7/8")
336 (13-1/4")
5 (1/4")
5 (1/4")

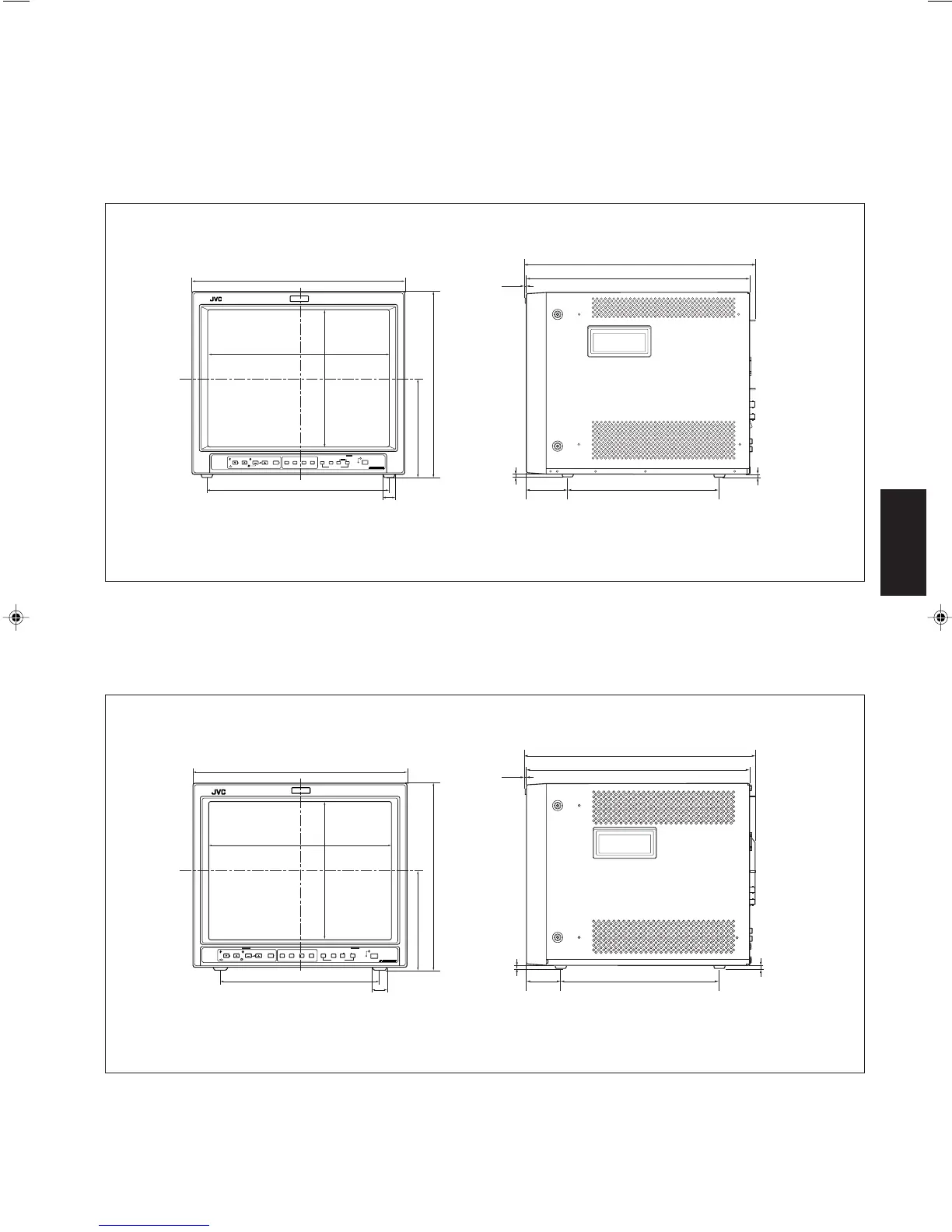

 Dimensions
< Front View >
< Side View >
* Asterisks (
*
) are used to indicate front panel
dimensions.
Unit : mm (inch)
21
POWER
CHROMA MENU
ASPECT
INPUT SELECT
SLOT
UNDER
SCAN
COLOR
OFF
BLUE
CHECK
PHASE
TM-H1750CG
BRIGHT
CONTRAST VOLUME/SELECT
AB
CD
395 (15-5/8")
418 (16-1/2")
407 (16-1/8")
68
(2-3/4")
286 (11-3/8")
3 (1/8")
3 (1/8")
336.3 (13-1/4")*
288 (11-3/8")
ø20
(7/8")
256 (10-1/8")*
334 (13-1/4")
175 (7")
1.5
(1/16")
< Front View >
< Side View >
* Asterisks (
*
) are used to indicate front panel
dimensions.
[TM-H1950CG]
[TM-H1750CG]
Unit : mm (inch)
