(No.MB330)1-15

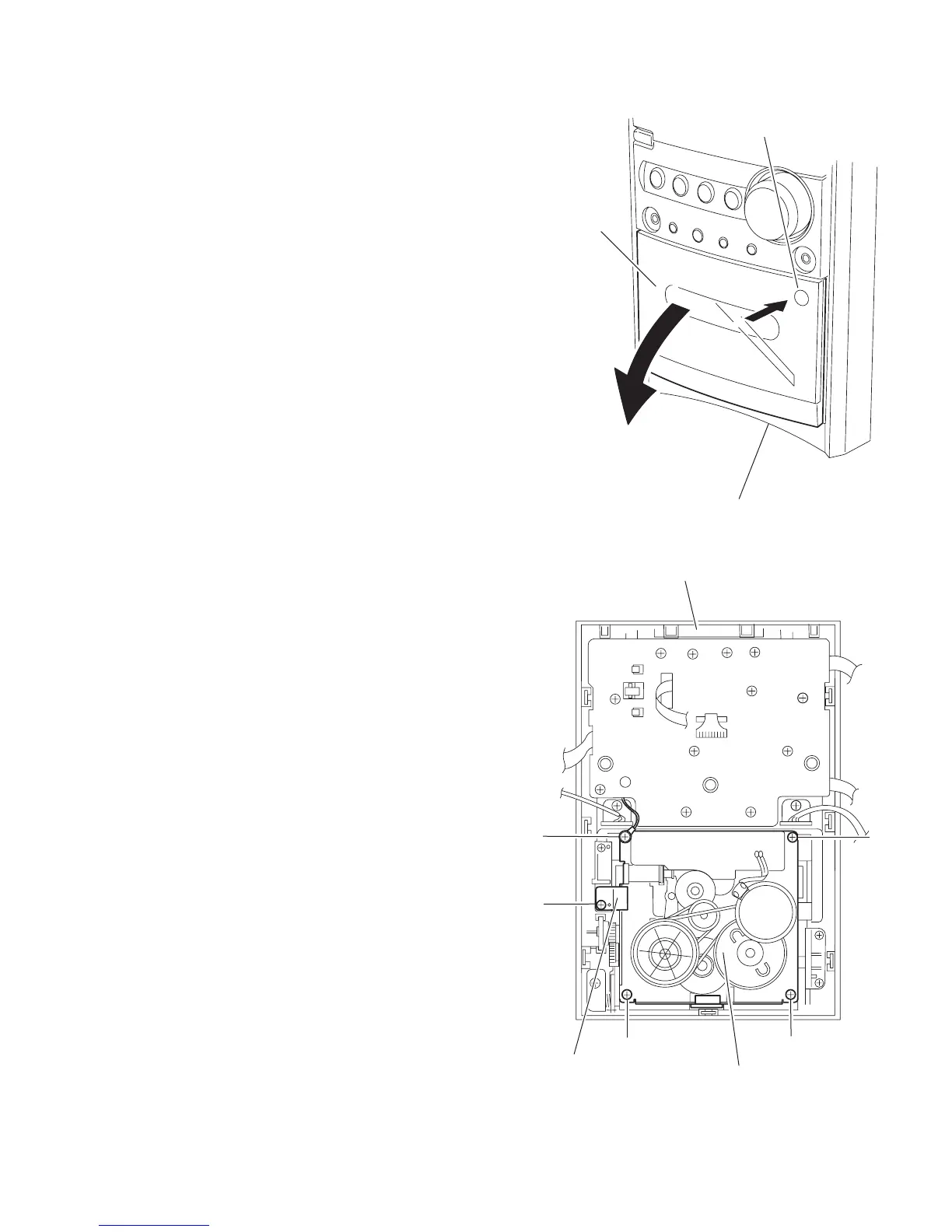

3.1.8 Removing the cassette mechanism assembly
(See Fig.18, 19)
• Prior to performing the following procedure, remove the front
panel assembly and the main board.
(1) Push 'PUSH OPEN' on the front panel to open the cassette
door.
(2) Remove the screw R attaching the bracket of the cassette
mechanism assembly.
(3) Remove the two screws S and the two screws T attaching
the cassette mechanism assembly.
Fig.18
Fig.19
Front panel assembly
Cassette door
PUSH OPEN
Cassette mechaanism assembly
Front panel assembly
Bracket
T
T
S
S
R
