(No.MB330)1-19
3.1.12 Removing the DAB module board
(See Fig.29,30)
• Prior to performing the following procedure, remove the front
panel assembly.
• Reference; It is not necessary to remove the main board.
(1) From the left side of the body, remove the two screws K’
attaching the DAB module board.
(2) Disconnect the wire from connector CN3
on the DAB mod-
ule board.
(3) Disconnect the DAB module board from connector JK10 on
the main board by pulling out. The holder comes off with
the DAB module board.
(4) Release the four joints g of the holder and remove the DAB
module board.

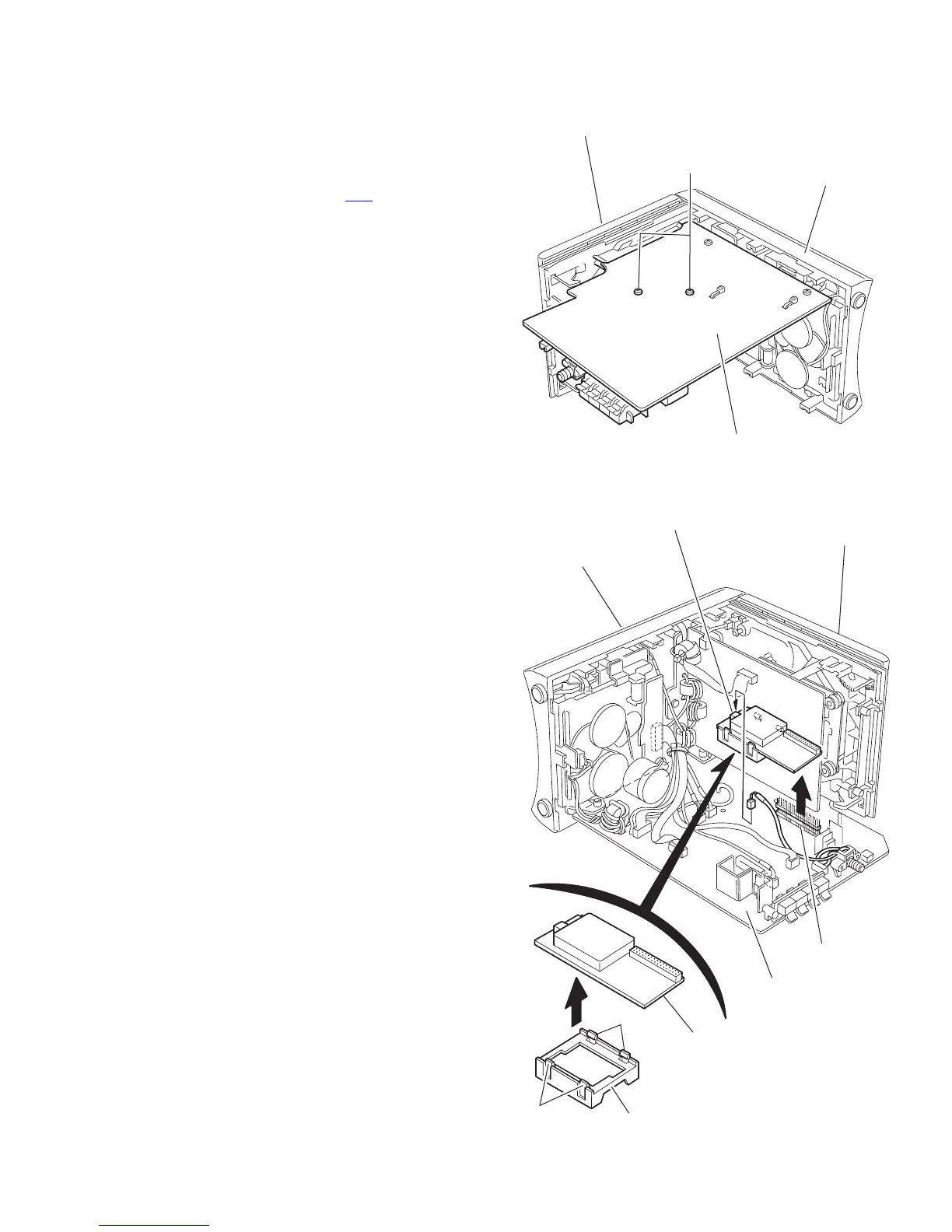

Fig.29
Fig.30
Main board
CD mechanism assembly
Front panel assembly
K'
CD mechanism assembly
Front panel assembly
Main board
JK10
Joint g
Joint g
DAB module board
DAB module board
CN3
Holder
To Next Page
