JVC UX-HB4 - Main Circuit Schematic Details

JVC UX-HB4
51 pages
Print Icon
To Next Page IconTo Next Page
To Next Page IconTo Next Page
To Previous Page IconTo Previous Page
To Previous Page IconTo Previous Page
Loading...
2-4
Parts are safety assurance parts.
When replacing those parts make
sure to use the specified one.

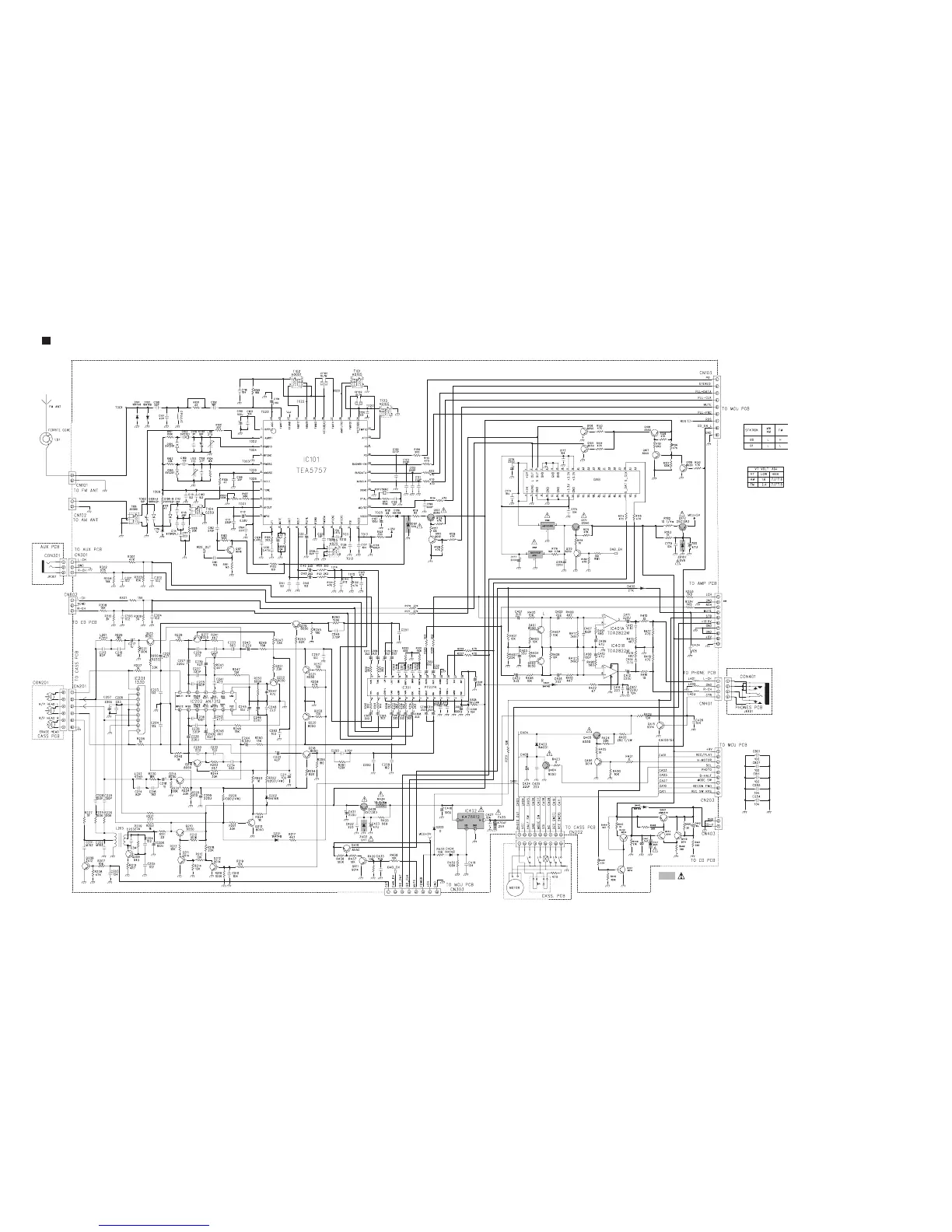

Main circuit
