(No.MB286)1-15

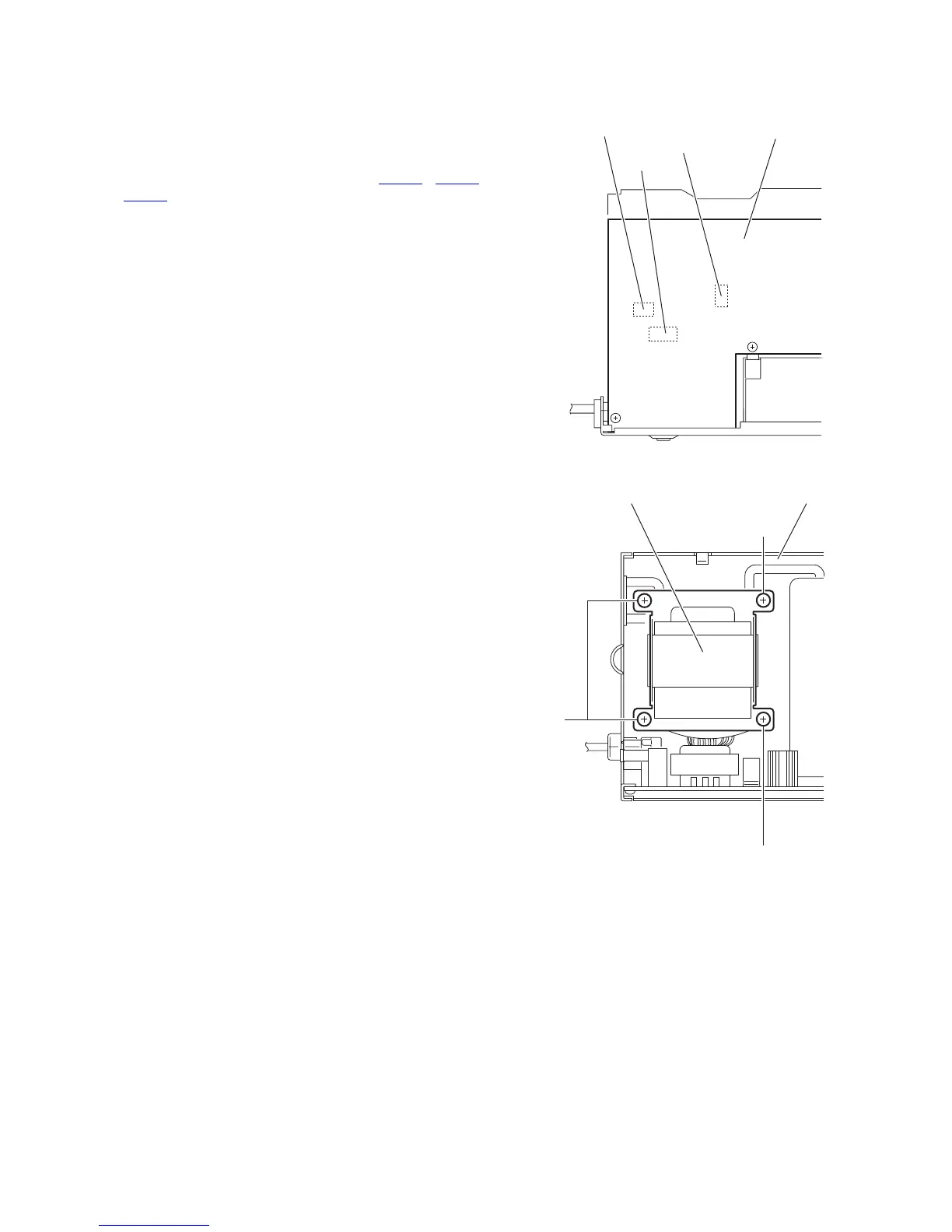

3.1.15 Removing the power transformer
(See Figs.24 and 25)
• Prior to performing the following procedures, remove the side
panels L/R, front panel assembly, top cover assembly, rear
panel, fan and main board.
(1) From the forward side of the power supply board, discon-
nect the wires from the connectors (CN102
, CN103,
CN105). (See Fig.24.)
Reference:
Remove the tuner, video board and the power supply
board as required. (See Figs.14, 15 and 18.)
(2) From the top side of the main body, remove the four screws
U attaching the power transformer. (See Fig.25.)
Fig.24
Fig.25
CN102
CN103
Power supply board
CN105
U
U
U
Power transformer Bottom chassis
To Next Page
