1-16 (No.MB286)
3.1.16 Removing the FL board
(See Fig.26)
• Prior to performing the following procedures, remove the side
panels L/R and front panel assembly.
(1) From the inside of the front panel assembly, remove the
three screws V and screw V’ attaching the FL board.
Reference:
When attaching the screw V’, attach the wire holder with
it and fix the wire with the wire holder as before.
(2) Take out the FL board from the front panel assembly and
disconnect the card wire from the connector CN751
on the
FL board.
Reference:
When attaching the FL board, align the projections p of
the front panel assembly in the holes of the FL board.

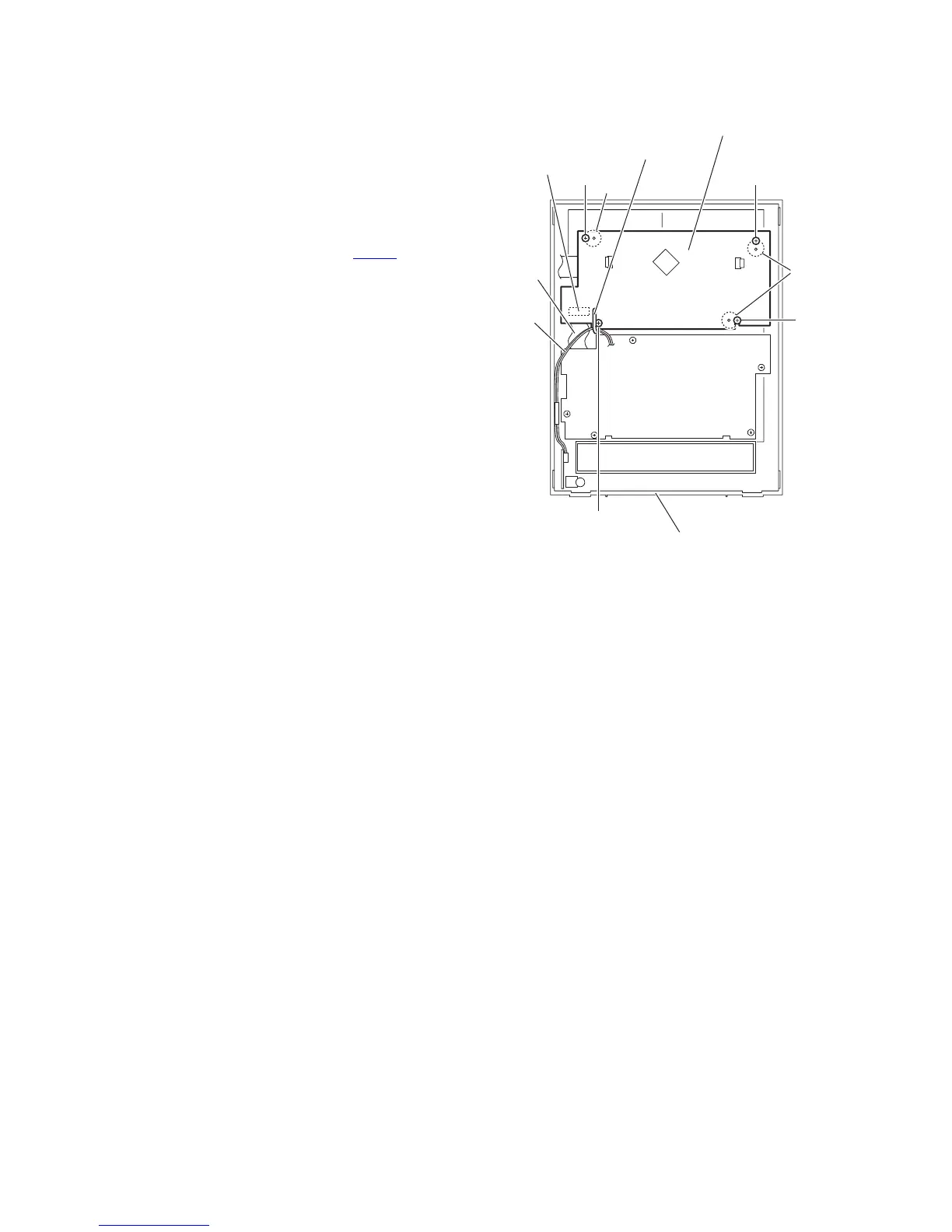

Fig.26
CN751
Card
wire
FL board
p
V
V
V
V'
p
Front panel assembly
Wire
Wire holder
To Next Page
