XL-FIISTN/XL-F116BK
XL-F215TN/XL-F216BK

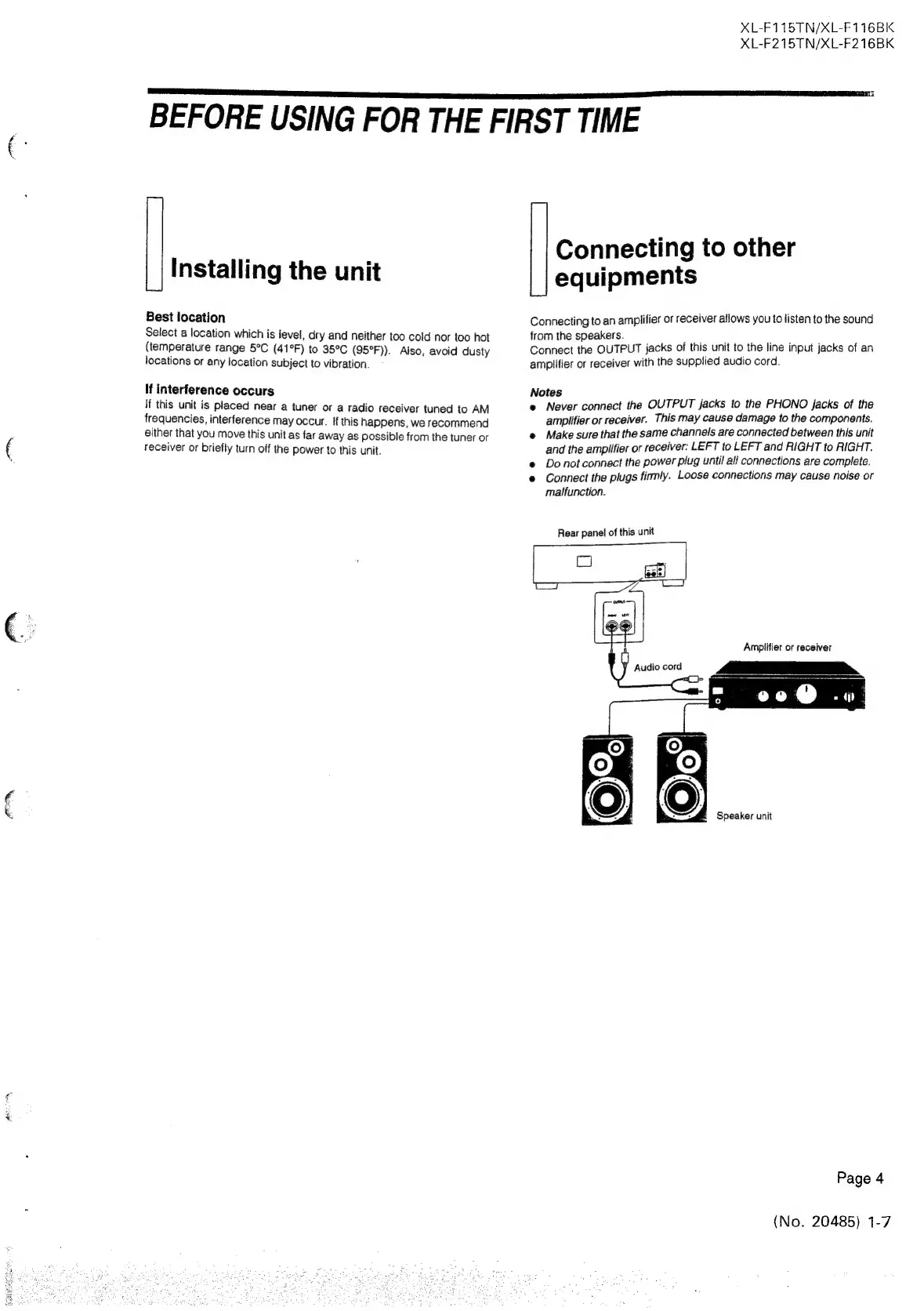

BEFORE
USING
FOR
THE
FIRST
TIME
Installing
the
unit
Best location
Select
a
location
which
is
level,
Gry
and
neither
too
cold
nor
too
hot
(temperature
range
5°C
(41°F)
to
35°C
(95°F)).
Also,
avoid
dusty
locations
or
any
location
subject
to
vibration.
If interference occurs
If
this
unit
is
placed
near
a
tuner
or
a
radio
receiver
tuned
to
AM
frequencies,
interference
may
occur.
{f
this
happens,
we
recommend
either
that
you
move
this
unit
as
far
away
as
possible
from
the
tuner
or
receiver
or
briefly
turn
off
the
power
to
this
unit.
Connecting
to
other
equipments
Connecting to an amplifier or receiver allows you to listen to the sound
from
the
speakers.
ee
Connect ni OUTPUT jacks of this unit to the line input jacks of an
amplifier
or
receiver
with
the
supplied
audio
cord.
Notes :
e Never connect the OUTPUT jacks to the PHONO jacks of the
amplifier or receiver. This may cause damage to the componenis.
Make sure that the same channels are connected between this unit
and the amplifier or receiver: LEFT to LEFT and RIGHT to RIGHT.
Do not connect the power plug until all connections are complete.
Connect the plugs firmly. Loose connections may cause noise or
malfunction.
Rear panel of this unit
Amplifier or receiver
Audio cord
Speaker unit
Page 4
(No. 20485) 1-7

JVC XL-F115TN Specifications

Power

power requirements	AC 120V ~, 60Hz
power consumption	18 watts

Audio Performance

frequency response	2 Hz to 20, 000 Hz (+1 dB)
dynamic range	More than 98.0 dB (at 1 kHz)
signal to noise ratio	More than 107.0 dB

Weight and Dimensions

dimensions	435 x 128 x 391 mm
weight	11.5 Ibs
