1-13
XL-R5000BK

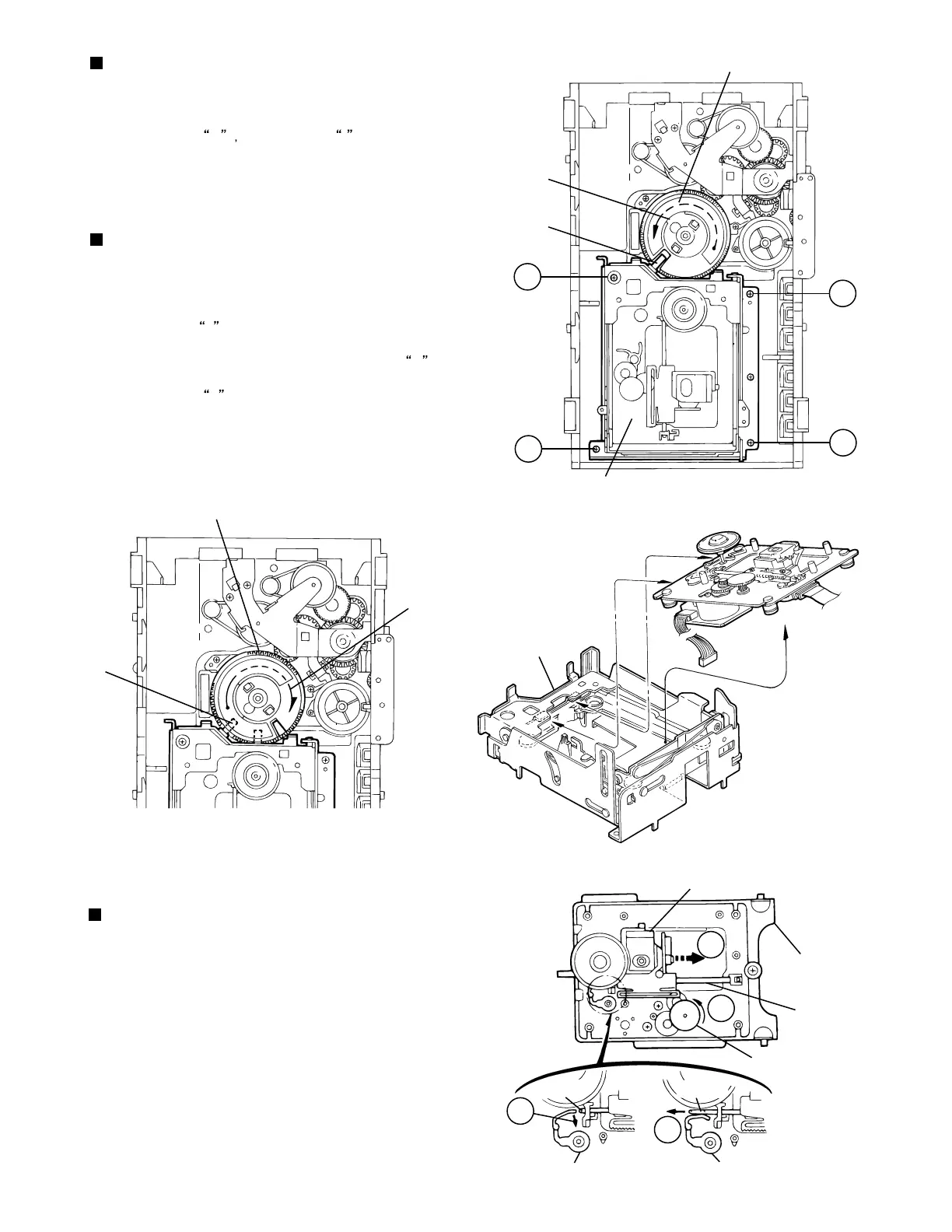

Removing the CD loading mechanism
assembly(See Fig.10)
1.
2.
While turning the cams R1 and R2 assembly in the
arrow direction
H align the shaft I of the CD
loading mechanism assembly to the position shown in
Fig.10.
Remove the four screws 6 retaining the CD loading
mechanism assembly.
Removing the CD traverse mechanism
(See Fig.11 and 12 )
1.
2.
For dismounting only the CD traverse mechanism
without removing the CD loading mechanism assembly,
align the shaft
J of the CD loading mechanism
assembly to the position shown Fig.11 while turning the
cam R1 and R2 assembly in the arrow direction
K .
By raising the CD loading mechanism assembly in the
arrow direction
L , remove the assembly from the
lifter unit
Fig.10
Fig.12
Fig.11
Fig.13
Removing the CD pick unit
(See Fig.13 )
1.
2.
3.
4.
Move the cam gear in the arrow direction a . Then, the
CD pickup unit will be moved in the arrow direction b .
According to the above step, shift the CD pickup unit to
the center position.
While pressing the stopper retaining the shaft in the
arrow direction c , pull out the shaft in the arrow
direction d .
After dismounting the shaft from the CD pickup unit,
remove the CD pickup unit
6
Cams R1, R2 assembly
I
CD loading mechanism assembly
6
H
Arrow
6
6
Lifter unit
CD traverse mechanism
L
Arrow
Cam R1, R2 assembly
K
Arrow
J
CD Pickup unit
CD loading
mechanism
Shaft
Cam gear
Shaft
Shaft
Stopper
Stopper
b
a
d
c
