JVC XL-R5000BK User Manual

4
English
Before proceeding, check whether the optical
digital cable can be connected.
• Connect a receiver or amplifier with digital audio capability to
the DIGITAL OPTICAL connectors on this unit.
• One connecting cable is used to transmit the stereo signals (L/
R) as a digital signal.
• If analog audio connections are also being made, try to use the
digital connectors on the receiver or amplifier that are labeled
the same way as the analog connectors.
• Before purchasing an optical digital cable (optional), make sure
that the cable in question can be connected to the amplifier, etc.
• Do not bend the optical digital cable at a sharp angle.
• When the power is turned on, the inside of the connector lights
up red. This light is for sending the digital signals. Although
this light will not harm your eyes, keep the protective cap in
place if the connector is not going to be used.

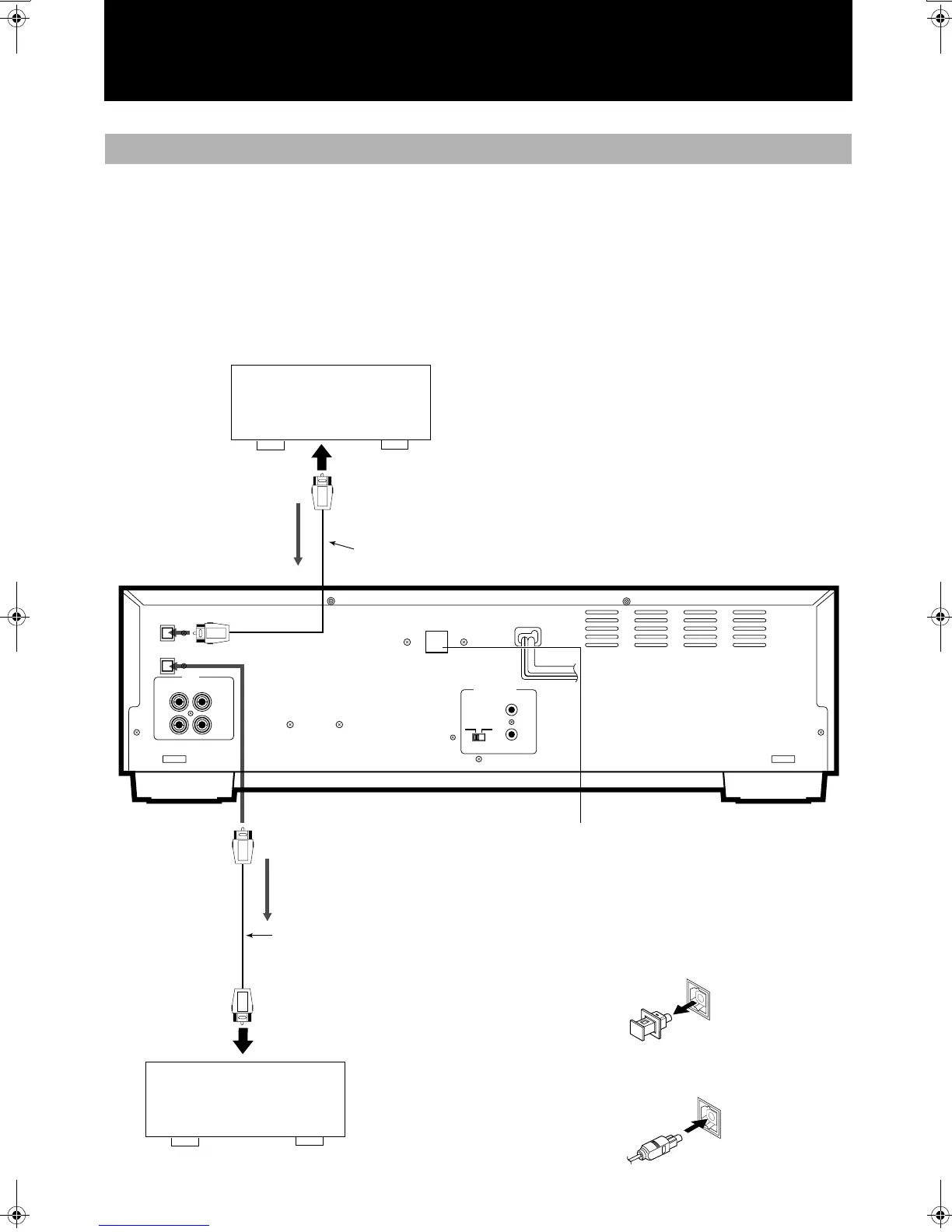

Digital Connections
DIGITAL IN
OPTICAL
DIGITAL OUT
OPTICAL
MODE
CDR TD
COMPU LINK
-
4
(SYNCHRO)
LINE
IN REC
( )
OUT PLAY
LEFTLEFT
RIGHTRIGHT
( )
VOLTAGE SELECTOR
Input signal
Optional optical digital cable
Receiver or amplifier with
digital OPTICAL connector
XL-R5000 CD/CDR MULTIPLE
COMPACT DISC RECORDER
To DIGITAL
OUT OPTICAL
connector
Output signal
Optional
optical digital
cable
To OPTICAL INPUT connector
To OPTICAL OUTPUT connector
CD player, etc.
How to use the OPTICAL connectors for the
connections
1 Remove the protective cap.
• When the connector is not going to be used, fit this protective
cap back in position.
2 Check that the end of the optical digital cable is
not dirty, and insert it securely.
Units have a voltage selector excluding units for
Canada, Europe, and U.S.A.
XL-R5000.book Page 4 Wednesday, March 29, 2000 6:37 PM
