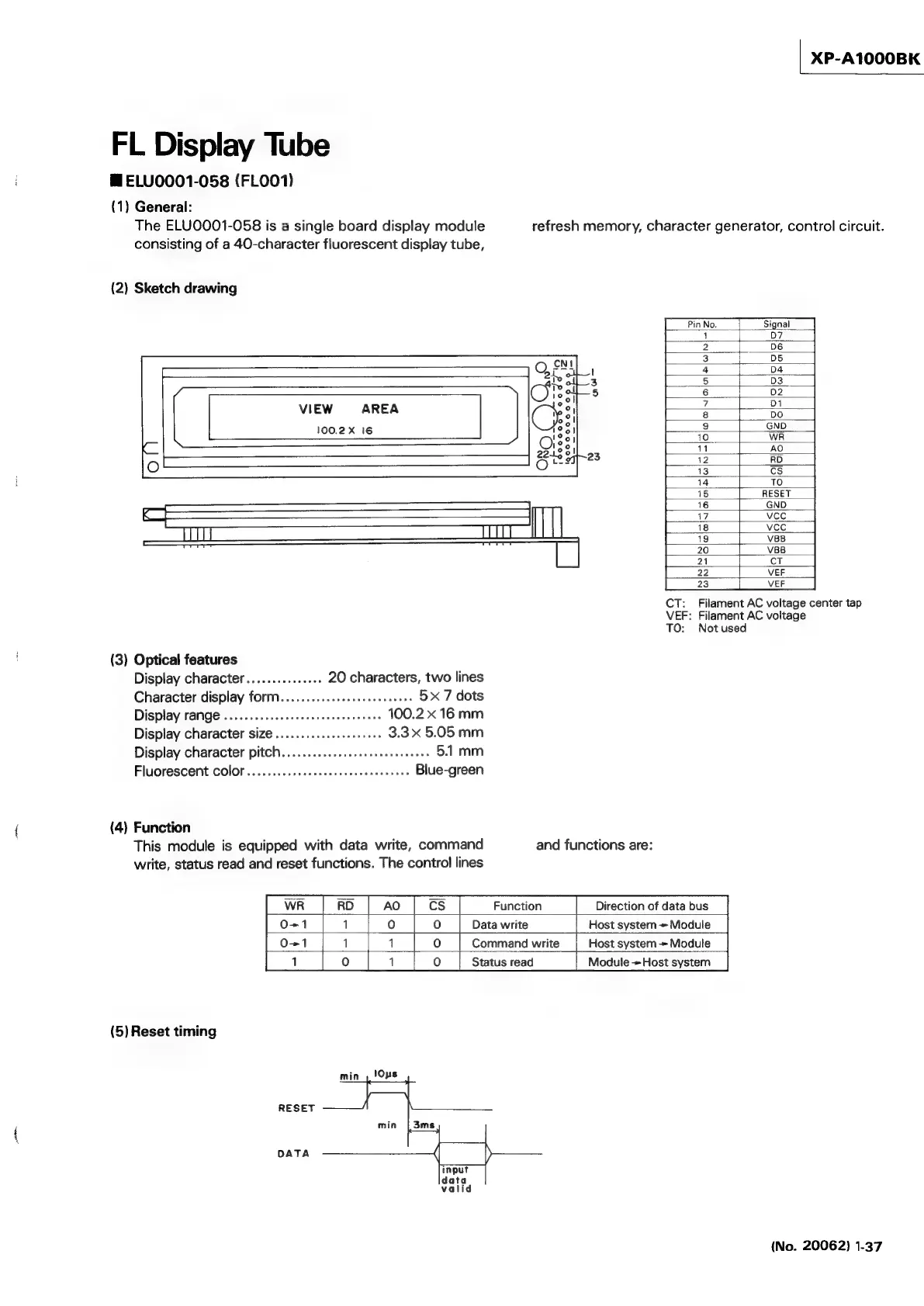

JVC XP-A1000BK - Page 37

XP-A1000BK
FL Display Tube
M@ ELU0001-058 (FLO01)
(1) General:
The ELUOQ001-058 is a single board display module refresh memory, character generator, control circuit.
consisting of a 40-character fluorescent display tube,
(2) Sketch drawing
VIEW AREA
100.2 X 16
CT: Filament AC voltage center tap
VEF: Filament AC voltage
TO: Notused
(3) Optical features
Display character............... 20 characters, two lines
Character display form...........:.:.:ceeeeeeers 5x 7 dots
Display range .........:ececeeeeeeeseeeeeeees 100.2 x 16 mm
Display character Size ................000e 3.3 x 5.05 mm
Display character pitch...............cceseeeeee ees 5.1 mm
Fluorescent Color.........:csceeceeseeeeeeeeeeees Blue-green
(4) Function
This module is equipped with data write, command and functions are:
write, status read and reset functions. The control lines
Function Direction of data bus
Data write Host system = Module
Command write Host system + Module
Status read Module + Host system
(5) Reset timing
RESET
DATA
(No. 20062) 1-37
