-XP-A1000BK

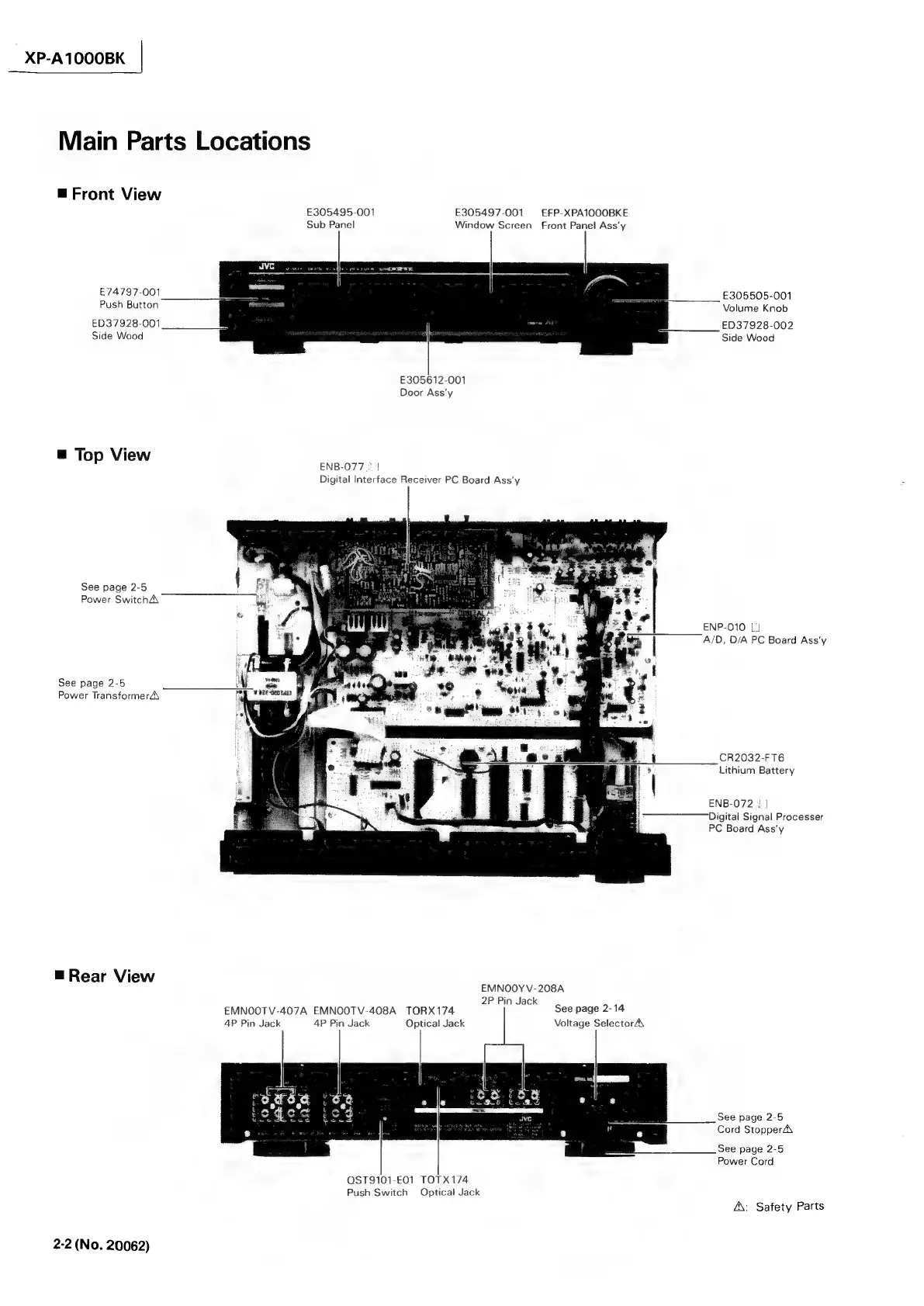

Main Parts Locations
@ Front View
£305495-001 E£305497-001 EFP-XPA1IOOOBKE
Sub Panel Window Screen Front Panel Assy
£305505-001
Volume Knob
ED37928-002
E74797-001
Push Button
ED37928-001
Side Wood Side Wood
E305612-001
Door Ass‘y
@ Top View
ENB-077 ! |
Digital Interface Receiver PC Board Ass'y
See page 2-5
Power SwitchA
ENP-010 [.'|
A/D, D/A PC Board Ass‘y
See page 2-5
Power TransformerA\
CR2032-FT6
Lithium Battery
ENB-072 | |
Digital Signal Processer
PC Board Ass'y
4 :
Rear
View
EMNOOYV-208A
2P Pi k
inslae See page 2-14
EMNOOTV-407A EMNOOTV-408A TORX174
Voltage SelectorA
4P Pin Jack 4P Pin Jack Optical Jack
See page 2-5
Cord Stopper
See page 2-5
Power Cord
QST9101-E01 TOTX174
Push Switch Optical Jack
A: Safety Parts
2-2 (No. 20062)
