JVC XT-G70RBK User Manual

EL-L (68707 ‘ON)

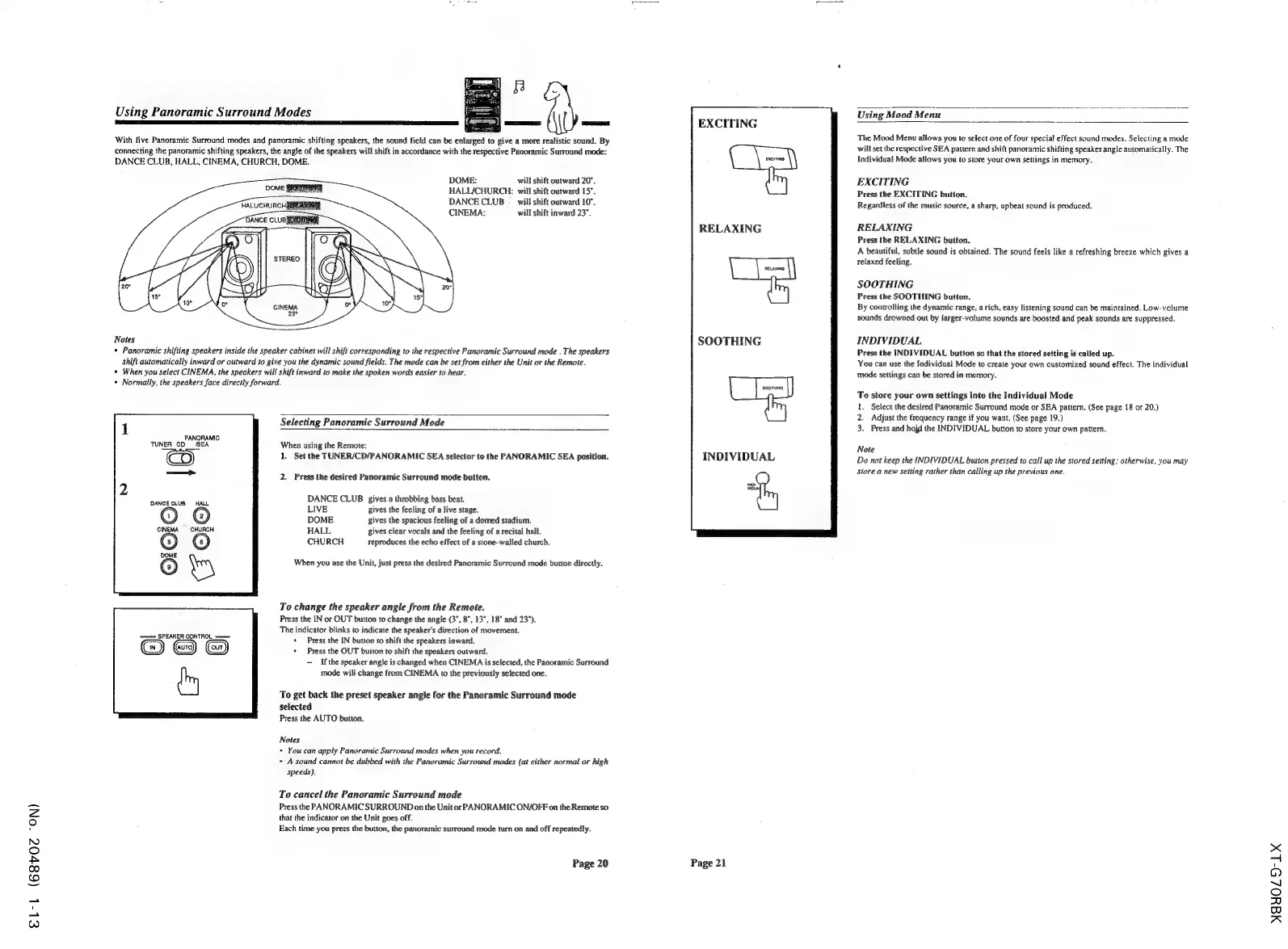

Using Panoramic Surround Modes
With five Panoramic Surround modes and panoramic shifting speakers, the sound field can be enlarged to give a more realistic sound. By
connecting the panoramic shifting speakers, the angle of the speakers will shift in accordance with the respective Panoramic Surround mode:
DANCE CLUB, HALL, CINEMA, CHURCH, DOME.
DOME: wil} shift outward 20°.
HALL/CHURCH: will shift outward 15°.
DANCE CLUB _ will shift outward 10°.
CINEMA: will shift inward 23°.
Notes
* Panoramic shifting speakers inside the speaker cabinet will shift corresponding to the respective Panoramic Surround mode . The speakers
shift automatically inward or outward to give you the dynamic sound fields. The mode can be set from either the Unit or the Remote.
« When you select CINEMA, the speakers will shift inward to make the spoken words easier to hear.
+ Normally, the speakers face directly forward.
Selecting Panoramic Surround Mode
PANORAMIC
TUNER CD __/SEA When using the Remote:
1. Set the TUNER/CD/PANORAMIC SEA selector to the PANORAMIC SEA position.
: 2, Press the desired Panoramic Surround mode button.
Canee rue WALL DANCE CLUB gives a throbbing bass beat.
LIVE gives the feeling of a live stage.
DOME gives the spacious feeling of a domed stadium.
CINEMA = CHURCH HALL gives clear vocals and the feeling of a recital hall.
CHURCH reproduces the echo effect of a stone-walled church.
(s) When you use the Unit, just press the desired Panoramic Surround mode button directly.
K
To change the speaker angle from the Remote.
Press the IN or OUT button to change the angle (3°, 8°, 13°, 18° and 23°).
The indicator blinks to indicate the speaker's direction of movement.
* Press the IN button to shift the speakers inward.
+ Press the OUT button to shift the speakers outward.
— Ifthe speaker angle is changed when CINEMA is selected, the Panoramic Surround
mode will change from CINEMA to the previously selected one.
——— SPEAKER CONTROL_———
To get back the preset speaker angle for the Panoramic Surround mode
selected
Press the AUTO button.
Notes
* You can apply Panoramtic Surround modes when you record.
+ A sound cannot be dubbed with the Panoramic Surround modes (at either normal or high
speeds).
Toa cancel the Panoramic Surround mode
Press the PANORAMIC SURROUND on the Unit or PANORAMIC ON/OFF on the Remote so
that the indicator on the Unit goes off.
Each time you press the button, the panoramic surround mode turn on and off repeatedly.
Page 20
EXCITING
RELAXING
Page 21
Using Mood Menu
The Mood Menu allows you to select one of four special effect sound modes. Selecting a mode
will set the respective SEA pattern and shift panoramic shifting speaker angle automatically. The
Individual Mode allows you to store your own settings in memory.
EXCITING
Press the EXCITING button,
Regardless of the music source, a sharp, upbeat sound is produced.
RELAXING
Press the RELAXING button.
A beautiful, subtle sound is obtained. The sound feels like a refreshing breeze which gives a
relaxed feeling.
SOOTHING
Press the SOOTHING button,
By controlling the dynamic range, a rich, easy listening sound can be maintained. Low-volume
sounds drowned out by larger-volume sounds are boosted and peak sounds are suppressed.
INDIVIDUAL
Press the INDIVIDUAL button so that the stored setting is called up.
You can use the Individual Mode to create your own customized sound effect. The individual
mode settings can be stored in memory.
To store your own settings into the Individual Mode
1. Select the desired Panoramic Surround mode or SEA pattern. (See page 18 or 20.)
2. Adjust the frequency range if you want. (See page 19.)
3. Press and hojd the INDIVIDUAL button to store your own pattem.
Note
Do not keep the INDIVIDUAL button pressed to call up the stored setting; otherwise, you may
Store a new Setting rather than calling up the previous one.
