RX-G
7ORBK

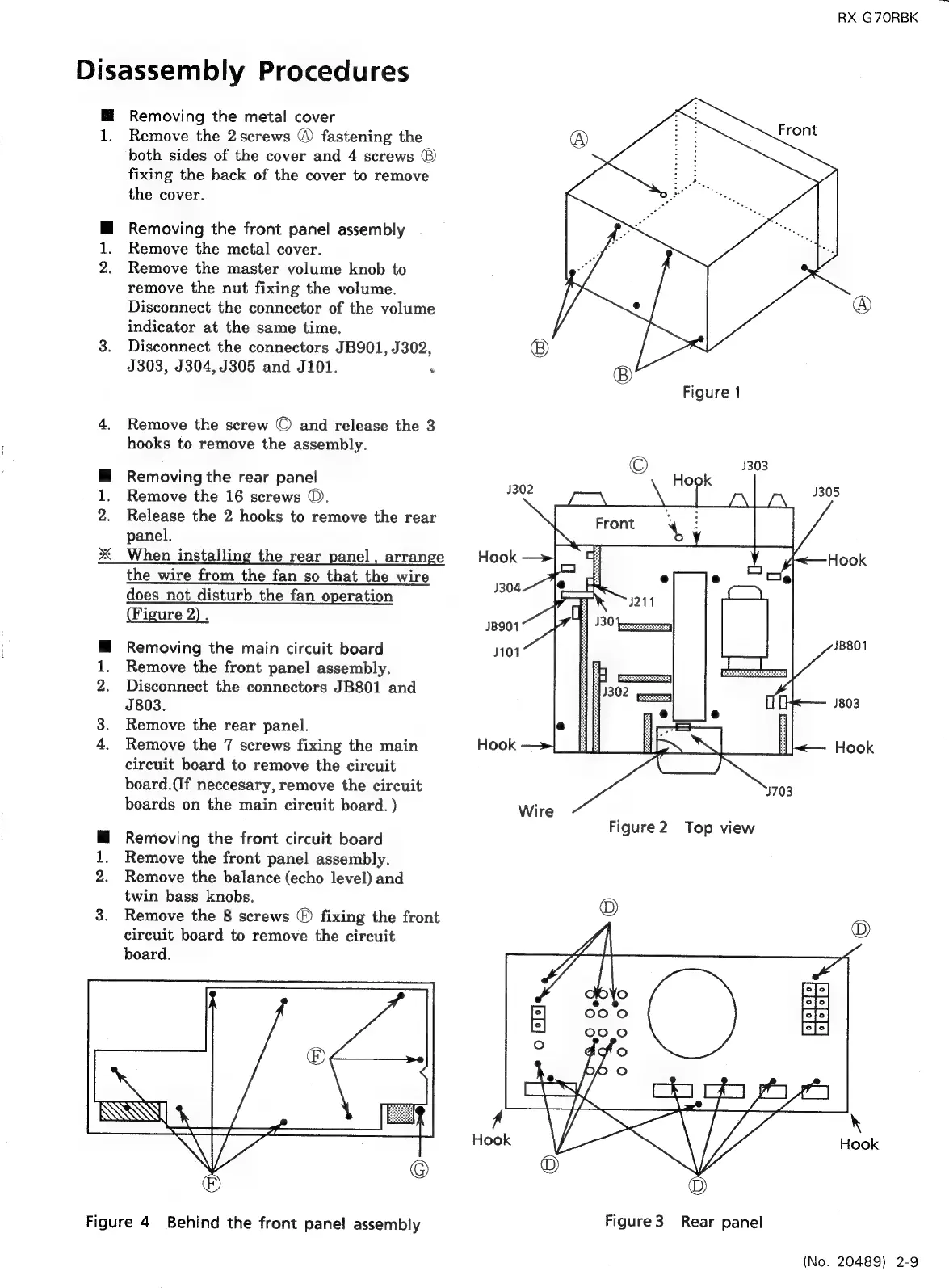

Disassembly
Procedures
M@
Removing
the
metal
cover
1.
Remove
the
2screws
®
fastening
the
both
sides
of
the
cover
and
4
screws
®
fixing
the
back
of
the
cover
to
remove
the
cover.
M
Removing
the
front
panel
assembly
1.
Remove
the
metal
cover.
2.
Remove
the
master
volume
knob
to
remove
the
nut
fixing
the
volume.
Disconnect
the
connector
of
the
volume
indicator
at
the
same
time.
3.
Disconnect
the
connectors
JB901,
J302,
J303, J304,
J305
and
J101.
*
Figure
1
4.
Remove
the
screw
©
and
release
the
3
hooks
to
remove
the
assembly.
M
Removing
the
rear
panel
1.
Remove
the
16
screws
O.
2.
Release
the
2
hooks
to
remove
the
rear
panel.
When
installing
the
rear
panel,
arrange
Hook
the
wire
from
the
fan
so
that
the
wire
does
not
disturb
the
fan
operation
oe
(igure
2).
JB901
M
Removing
the
main
circuit
board
J101
1.
Remove
the
front
panel
assembly.
2.
Disconnect
the
connectors
JB801
and
J803.
3.
Remove
the
rear
panel.
4.
Remove
the
7
screws
fixing
the
main
Hook
circuit
board
to
remove
the
circuit
board.(If
neccesary,
remove
the
circuit
boards
on
the
main
circuit
board.
)
M
Removing
the
front
circuit
board
1.
Remove
the
front
panel
assembly.
2.
Remove
the
balance
(echo
level)
and
twin
bass
knobs.
3.
Remove
the
8
screws
©
fixing
the
front
circuit
board
to
remove
the
circuit
board.
Figure
4
Behind
the
front
pane!
assembly
Figure
3
Rear
panel
(No.
20489)
2-9
