RX-G7ORBK

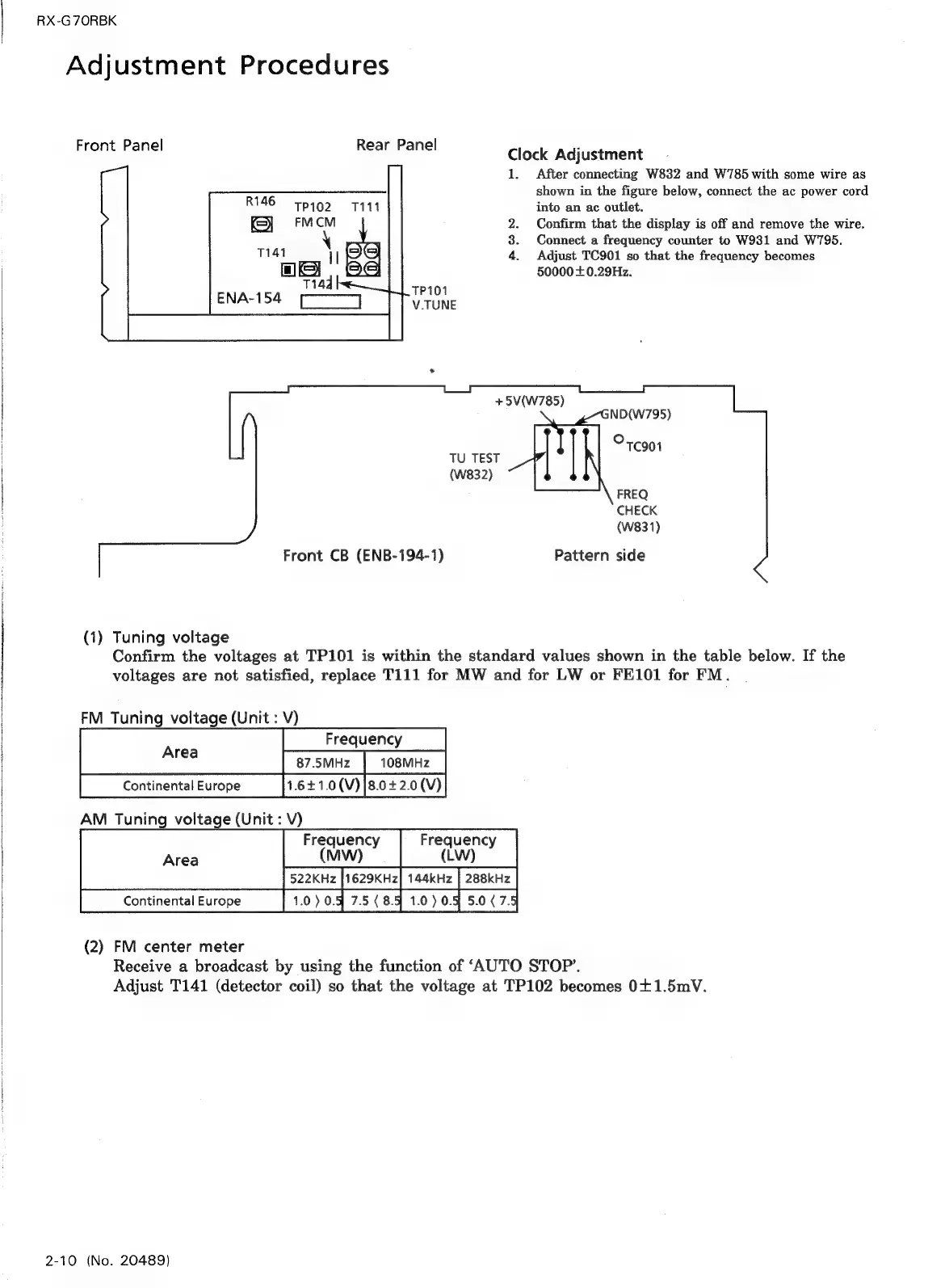

Adjustment Procedures
Front
Panel
Rear
Panel
Clock
Adjustment
R146 tpig2 T1111
TU TEST
(W832)
Front CB (ENB-194-1)
(1) Tuning voltage
1.
Cee
+5V(W785)
After connecting W832 and W785 with some wire as
shown in the figure below, connect the ac power cord
into an ac outlet.
Confirm that the display is off and remove the wire.
Connect a frequency counter to W931 and W795.
Adjust TC901 so that the frequency becomes
50000 +0.29Hz.
ND(W795)
| | © +901
FREQ
CHECK
(W831)
Pattern side
Confirm the voltages at TP101 is within the standard values shown in the table below. If the
voltages are not satisfied, replace T111 for MW and for LW or FE101 for FM.
FM Tuning voltage (Unit: V)
re Frequency
rea
87.5MHz 108MHz
Continental Europe 1.6+1.0(V)/8.0+2.0(V)
AM Tuning voltage (Unit : V)
Frequency Frequency
Area (MW) (LW
)
(2) FM center meter
Receive a broadcast by using the function of ‘AUTO STOP’.
Adjust T141 (detector coil) so that the voltage at TP102 becomes 0+1.5mV.
2-10 (No. 20489)
