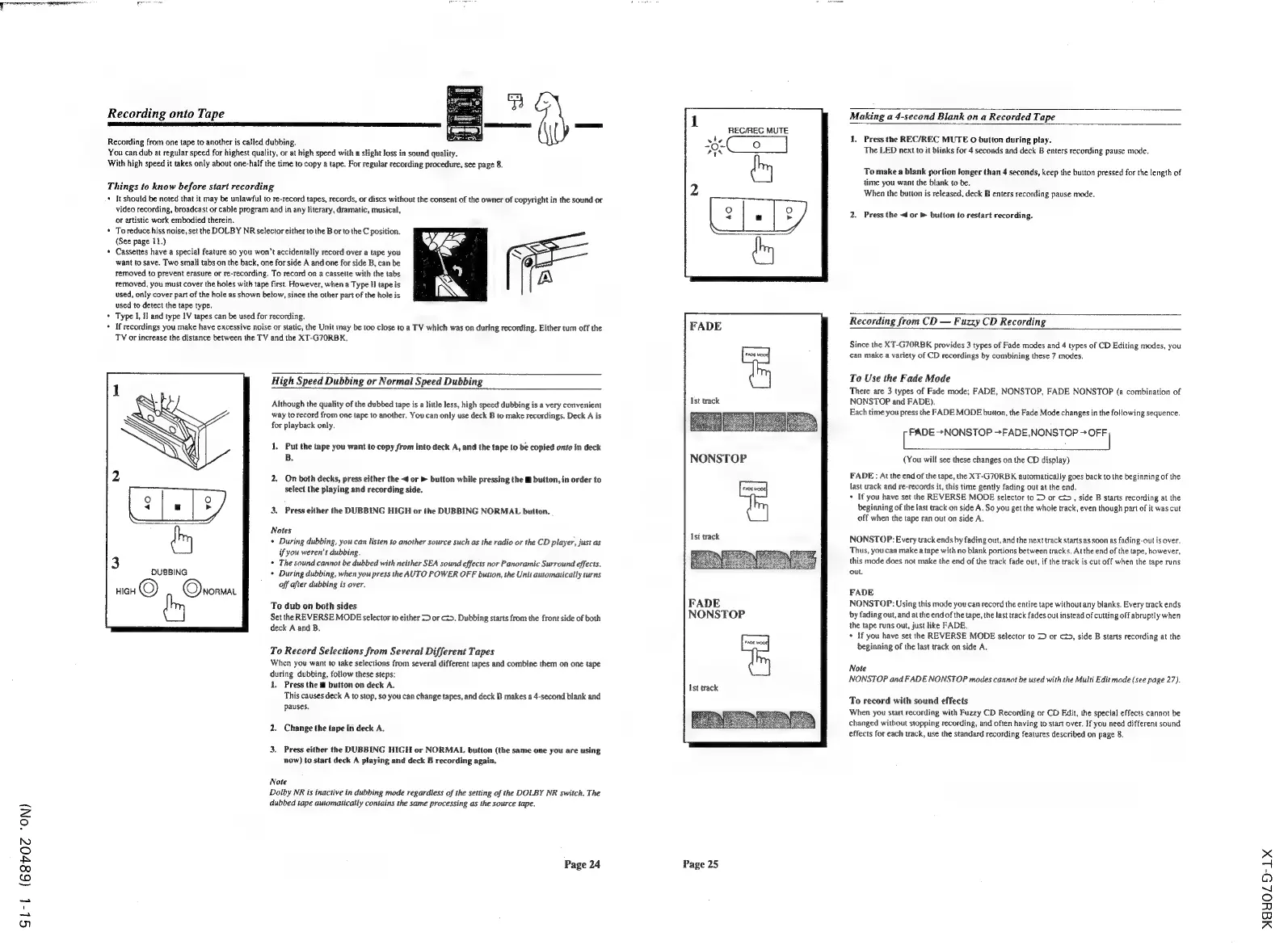

JVC XT-G70RBK - Recording and Dubbing Procedures

{68702 “ON)
SL-L
Recording onto Tape
Recording from one tape to another is called dubbing.
You can dub at regular speed for highest quality, or at high speed with a slight loss in sound quality.
With high speed it takes only about one-half the time to copy a tape. For regular recording procedure, see page 8.
Things to know before start recording
+ It should be noted that it may be unlawful to re-record tapes, records, or discs without the consent of the owner of copyright in the sound or
video recording, broadcast or cable program and in any literary, dramatic, musical,
or artistic work embodied therein.
* Toreduce hiss noise, set the DOLBY NR selector either to the B or to the C position.
(See page 11.)
* Cassettes have a special feature so you won't accidentally record over a tape you
want to save. Two small tabs on the back, one for side A and one for side B, can be
removed to prevent erasure or re-recording. To record on a cassette with the tabs
removed, you must cover the holes with tape first. However, when a Type II tape is
used, only cover part of the hole as shown below, since the other part of the hole is
used to detect the tape type,
* Type I, I and type IV tapes can be used for recording.
+ If recordings you make have excessive noise or static, the Unit may be too close to a TY which was on during recording. Either turn off the
TV or increase the distance between the TV and the XT-G70RBK,
3
HIGH ©
DUBBING
fm
NORMAL
High Speed Dubbing or Normal Speed Dubbing
Although the quality of the dubbed tape is a little less, high speed dubbing is a very convenient
way to record from one tape to another. You can only use deck B to make recordings. Deck A is
for playback only.
1, Put the tape you want to copy from into deck A, and the tape to be copied onto in deck
B.
2, On both decks, press either the <4 or ® button while pressing the @ button, in order to
select the playing and recording side.
3. Press either the DUBBING HIGH or the DUBBING NORMAL button.
Notes
+ During dubbing, you can listen to another source such as the radio or the CD player, just as
if you weren't dubbing.
+ The sound cannot be dubbed with neither SEA sound effects nor Panoramic Surround effects.
+ During dubbing, when you press the AUTO POWER OFF button, the Unit automatically turns
off after dubbing is over.
To dub on both sides
Set the REVERSE MODE selector to either > or >. Dubbing starts from the front side of both
deck A and B.
To Record Selections from Several Different Tapes
When you want to take selections from several different tapes and combine them on one tape
during dubbing, follow these steps:
1. Press the @ button on deck A.
This causes deck A to stop, so you can change tapes, and deck B makes a 4-second blank and
pauses.
2. Change the tape in deck A.
3. Press either the DUBBING HIGH or NORMAL button (the same one you are using
now) to start deck A playing and deck B recording again,
Note
Dolby NR is inactive in dubbing mode regardless of the setting of the DOLBY NR switch. The
dubbed tape automatically contains the same processing as the source tape.
Page 24
REC/REC MUTE
NONSTOP
FADE
NONSTOP
Page 25
a
Making a 4-second Blank on a Recorded Tape
1. Press the REC/REC MUTE 0 button during play.
The LED next to it blinks for 4 seconds and deck B enters recording pause mode.
To make a blank portion longer than 4 seconds, keep the button pressed for the length of
time you want the blank to be.
When the button is released, deck B enters recording pause mode.
2. Press the <4 or > button to restart recording.
Recording from CD — Fuzzy CD Recording
Since the XT-G70RBK provides 3 types of Fade modes and 4 types of CD Editing modes, you
can make a variety of CD recordings by combining these 7 modes.
To Use the Fade Mode
There are 3 types of Fade mode; FADE, NONSTOP, FADE NONSTOP (a combination of
NONSTOP and FADE).
Each time you press the FADE MODE button, the Fade Mode changes in the following sequence.
(eee re >FADE,NONSTOP + OFF
(You will see these changes on the CD display)
FADE : At the end of the tape, the XT-G70RBK automatically goes back to the beginning of the
last track and re-records it, this time gently fading out at the end,
+ If you have set the REVERSE MODE selector to > or c25 , side B starts recording at the
beginning of the last track on side A. So you get the whole track, even though part of it was cut
off when the tape ran out on side A.
NONSTOP: Every track ends by fading out, and the next track starts as soon as fading-out is over.
Thus, you can make a tape with no blank portions between tracks. At the end of the tape, however,
this mode does not make the end of the track fade out, if the track is cut off when the tape runs
out.
FADE
NONSTOP: Using this mode you can record the entire tape without any blanks. Every track ends
by fading out, and at the end of the tape, the last track fades out instead of cutting off abruptly when
the tape runs out, just like FADE.
+ If you have set the REVERSE MODE selector to 2D or <2, side B starts recording at the
beginning of the last track on side A.
Note
NONSTOP and FADE NONSTOP modes cannot be used with the Multi Edit mode (see page 27).
To record with sound effects
When you start recording with Fuzzy CD Recording or CD Edit, the special effects cannot be
changed without stopping recording, and often having to start over. If you need different sound
effects for each track, use the standard recording features described on page 8.
