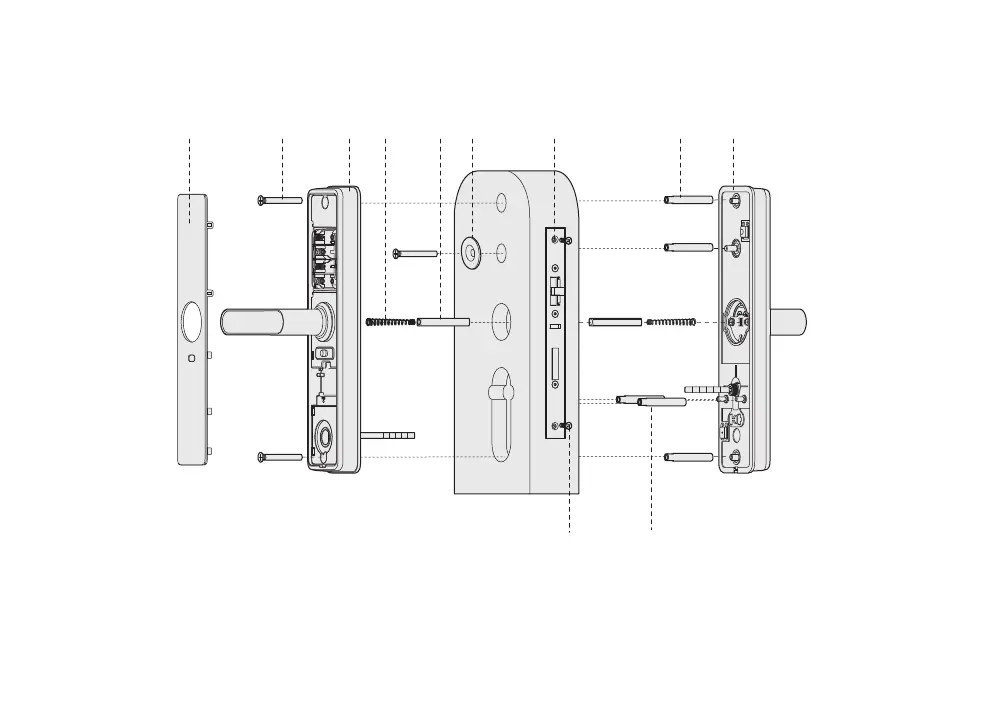

Explosive View
1.Inside escutcheon cover
2.Mounting screw(3pcs)
3.Inside escutcheon assembly
4.Pressure spring （2pcs）
5.Square shaft （2pcs）
6.Mounting plate (1pcs)
7.Mortise (1pcs)
8.Connecting screw bolt(M6)（3pcs）
9.Outside escutcheon assembly
10.Screw for mortise (2pcs)
11.Connecting screw bolt(M5) (2pcs)
Notice: the pressure spring have to screw in the square shaft.
