Connecting cable
for mortise
Connecting cable
for front panel

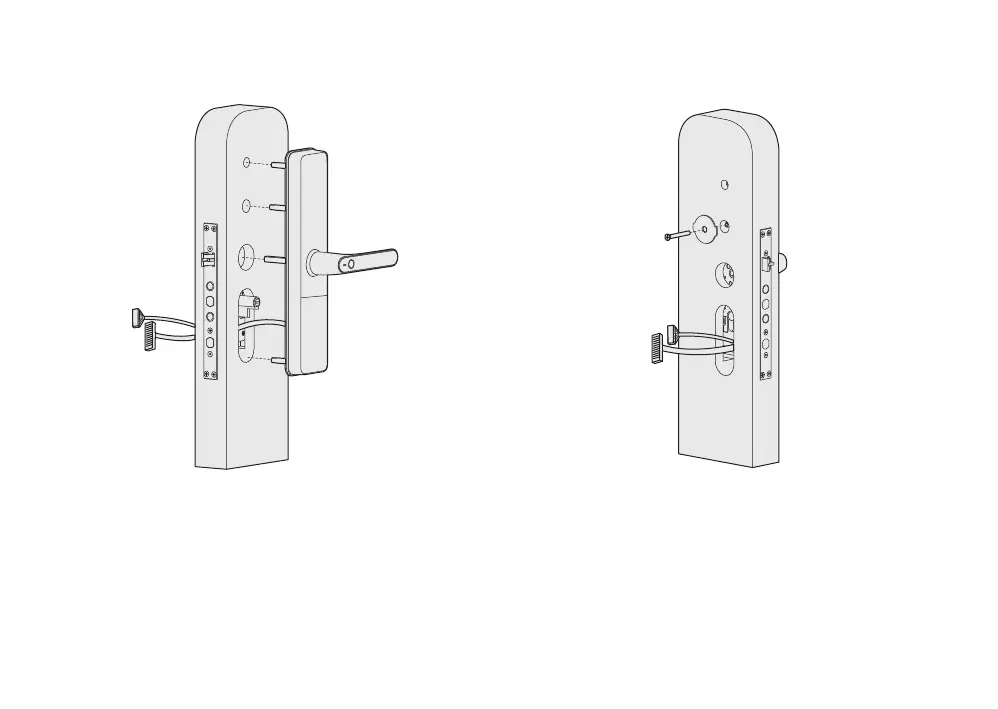

4. Pass the connection wire through the bottom bore. Then align and
insert square shaft into mortise holes to make the front panel fit
against the door closely.
5. Install the mounting plate with fixing scews tightly against the
door surface to fix the front panel.
Mounting screw
Connecting cable
for mortise
Connecting cable
for front panel
