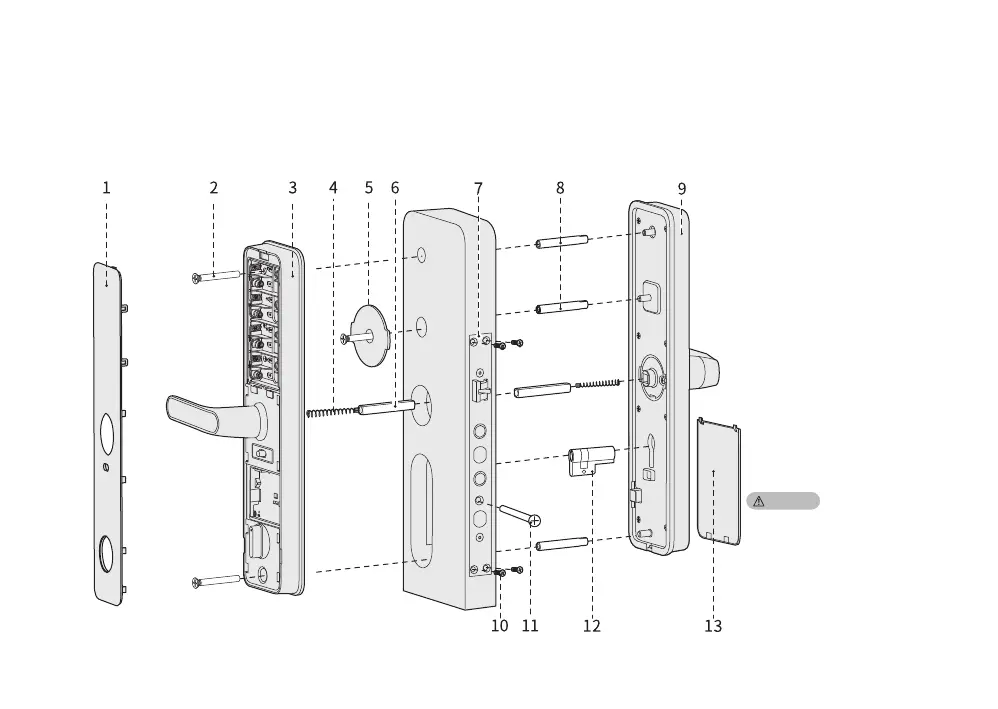

Exploded view
Understanding the installation of three-dimensional assembly is benifit to know the structure of the lock.
1. Back cover
2. Mounting screw(3 pcs)
3. Back panel
4. Pressure spring(2 pcs)
5. Mounting plate
6. Square shaft(2 pcs)
7. Mortise
8. Connecting screw bolt(3 pcs)
9. Front panel
10. Fixed screw(4 pcs)
11. Fixed screw for key cylinder
12. Key cylinder
13. Mechanical key cover
Caution:
Please pressing the spring into the
end of the square shaft before
installing them.
