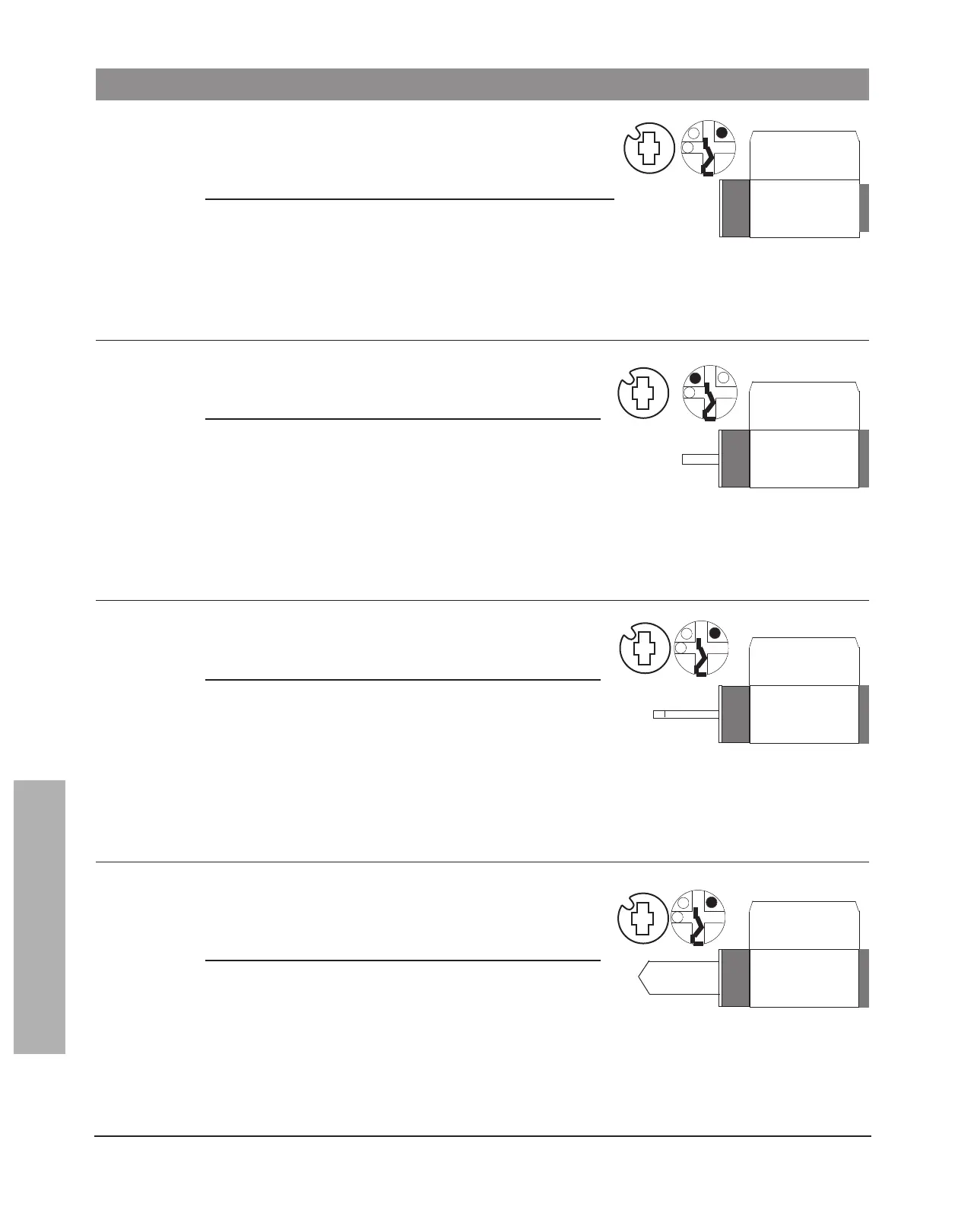

ALCON Older X Series grade 1 knobs and unit locks
with one-piece (capless) knobs and knob hole bushings
8400-xx-1295-21 factory combinated
8400-xx-1095 uncombinated and use*
3400-xx-1295-21 factory combinated
3
400-xx-1095 uncombinated and use*
*3450-80-2003 spacing washer
*use existing tailpiece from Falcon cylinder, horizontal.
KABA 1411 padlock
8400-xx-1299-41 factory combinated
8400-xx-1099 uncombinated
+
and use*
3400-xx-1299-41 factory combinated
3400-xx-1099 uncombinated
+
and use*
*1410-82-2000 P tailpiece horizontal
*3450-80-2003 spacing washer
LSDA LX1000 grade 1 levers, L100 grade 2 levers,
600 series 'clutch' lever (1998)
8400-xx-1299-18 factory combinated
8400-xx-1099 uncombinated and use*
3400-xx-1299-18 factory combinated
3400-xx-1099 uncombinated and use*
*1590-80-2000 SD/3A tailpiece, vertical
*3450-80-2003 spacing washer
SD/3A
“99”plug & shell
large diameter
plug requires
J or K series
bottom pins
LSDA LH1000 grade 1 knobs
8400-xx-1299-17 factory combinated
8400-xx-1099 uncombinated and use*
3400-xx-1299-17 factory combinated
3400-xx-1099 uncombinated and use*
*1590-80-2000 SD/3A tailpiece, horizontal
*3450-80-2003 spacing washer
“99” plug & shell
large diameter
plug requires
J or K series
bottom pins
SD/3A
“99” plug & shell
large diameter
plug requires
J or K series
bottom pins
large diameter
plug requires
J or K series
bottom pins
“95” plug & shell
with
small plug face
Key-In-Knob Cylinders
NOTE: If Falcon tailpiece needs replace-
ment, Kaba FX tailpiece (4700-80-2003)
can be used, but must be ordered
s
eparately.
+
NOTE: When ordering cylinder uncom-
binated, P tailpiece must be requested.
