Section 2 - 14
Product Information

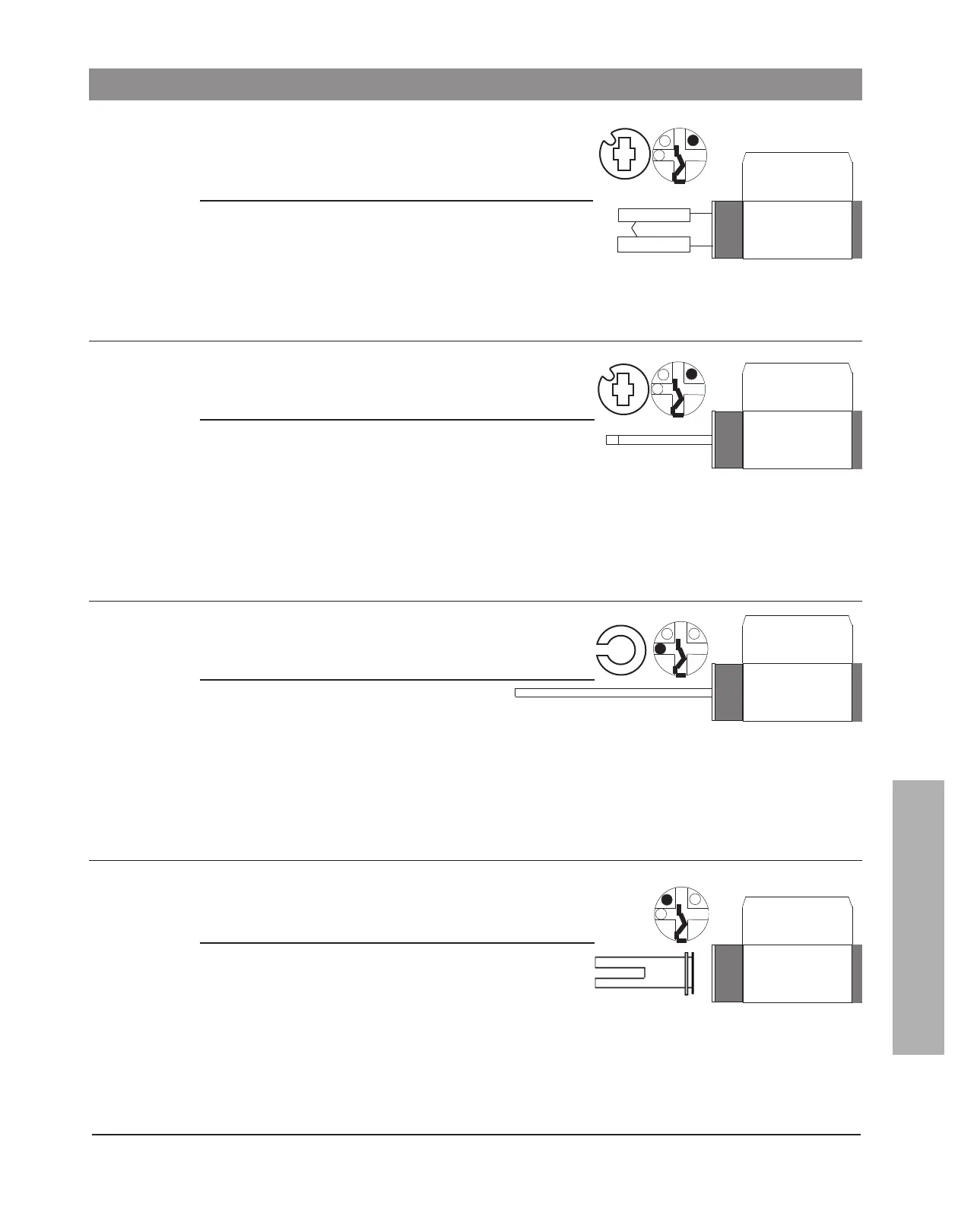

LSDA LX1000 grade 1 levers (prior to 1994)
Field modification required.
8
400-xx-1299-18 factory combinated
8400-xx-1099 uncombinated and use*
3400-xx-1299-18 factory combinated
3400-xx-1099 uncombinated and use*
*3450-80-2003 spacing washer
*1590-80-2000 SD/3A tailpiece, vertical, modified as shown
cut away
cut away
“99” plug & shell
large diameter
plug requires
J or K series
bottom pins
S
D/3A
“99” plug & shell
large diameter
plug requires
J or K series
bottom pins
LSDA Single cylinder deadlocks
8400-xx-1299-90 factory combinated
8400-xx-1099 uncombinated and use*
3400-xx-1299-90 factory combinated
3400-xx-1099 uncombinated and use*
*3450-00-2000 lost motion tailpiece
*3450-80-2004 timing washer
Or, use LSDA tailpiece and driver.
“99” plug & shell
large diameter
plug requires
J or K series
bottom pins
“99” plug & shell
large diameter
plug requires
J or K series
bottom pins
LSDA Double cylinder deadlocks
8400-xx-1299-01 factory combinated
8400-xx-1099 uncombinated and use*
3400-xx-1299-01 factory combinated
3400-xx-1099 uncombinated and use*
*LSDA tailpiece assembly.
LSDA double cylinder tailpiece assembly not supplied.
LSDA (LS)100B, 100P and 100T grade 2 knobs
8400-xx-1299-14 factory combinated
8400-xx-1099 uncombinated and use*
3400-xx-1299-14 factory combinated
3400-xx-1099 uncombinated and use*
*4700-80-2001 SA/3B tailpiece, horizontal
*3450-80-2003 spacing washer
SA/3B
Key-In-Knob Cylinders
