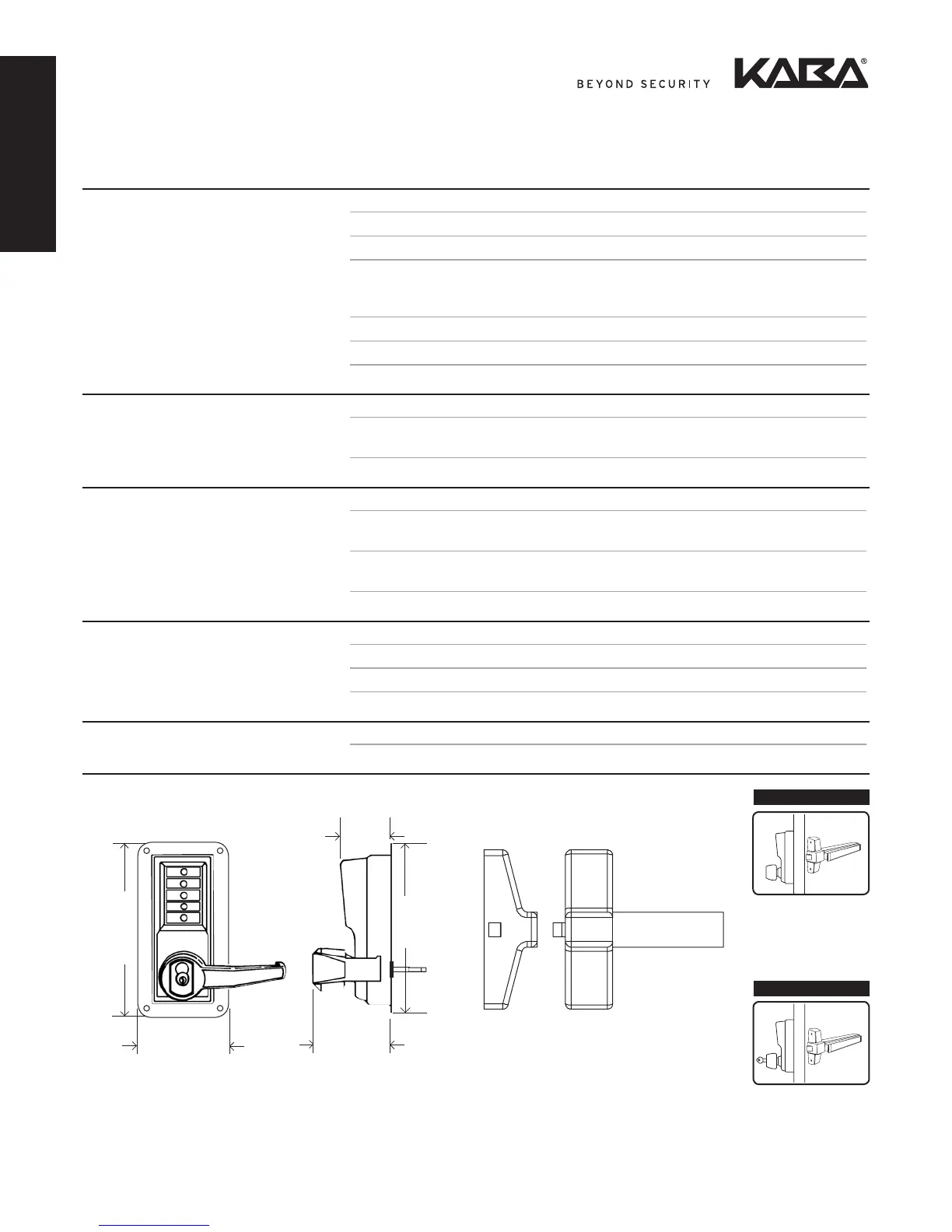

Kaba Simplex LP1000 Series Owner's Manual

26
Simplex
®
LP1000 Series
Exterior
8
3
⁄4"
(222 mm)
4
3
⁄8"
(111 mm)
• Combination Entry
• Egress with Exit
Device (not supplied)
• Exterior Combination
Change (only)
LP1010
• Combination Entry
• Egress with Exit
Device (not supplied)
• Key Override
(not supplied)
• Exterior Combination
Change (only)
LP1020
Door handing must be
speciedwhenordering.
Mechanical Features (continued)
Exit Device: Not supplied (see list for compatibility on prior page)
Exit Device Strike: Supplied with Exit Device
Exit Device Hub Rotation: Up to 60°, counterclockwise for left hand and clockwise for right hand
Tailpiece: 2¾" (70 mm) tailpiece for Exit Device operation from outside
Optional 5" (125 mm) tailpiece for freezer doors
(sold separately, part # 74773-000-01)
Minimum Stile Recommended: 5" (127 mm)
Weight: 8 lbs. (3.6 kg)
Key Override
Interchangeable Cores: Small format—Best and equivalents (6 or 7-pin length); core not included
Removable Cores: Large format—Medeco/ASSA/Yale/Abloy (5 or 6-pin length), Corbin Russwin,
Schlage, and Sargent; core not included
Installation
Door Preparation: Recessed through bolts may be required for Exit Device preparation
Door Thickness: 1⅜" (35 mm) to 2¼" (57 mm)
Optional 5" (127 mm) tailpiece (sold separately, part # 74773-000-01)
Items Supplied Include: Installation manual, full-scale template, combination change tool, and required
lock installation hardware only
CerticationandTesting
Accessibility Standard: Americans with Disabilities Act (ADA); xed ADA-compliant lever
Durability: Weather resistant
Fire Rating: 3-hour UL/ULC re rating for "A" labeled doors
Warranty
Warranty: 3-year warranty
Exit Trim
Exterior Side
3
15
⁄16"
(100 mm)
1
2
3
4
5
8
3
⁄4"
(222 mm)
2
3
⁄8"
(60 mm)
Interior
(not supplied)
LP1000 Series
