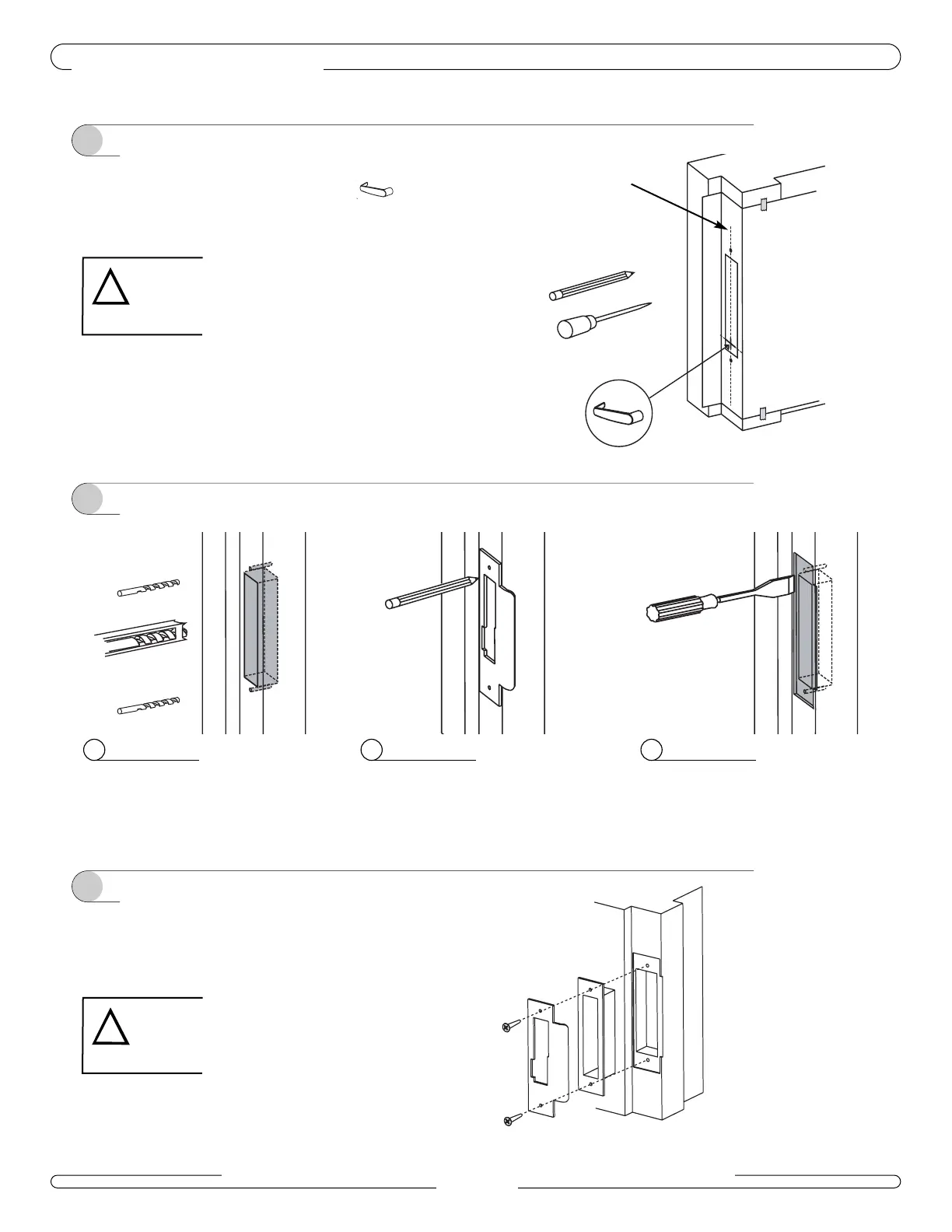

III INSTALL THE STRIKE
710-II/740 SERIES INSTALLATION GUIDE • PK2710/08/02
Page 5
Align the paper template at the desired handle height ( ), and along the
vertical center line of the mortise (
C
L
), which is also the center line of the door,
allowing for any bumpers on the door frame.
Respect applicable building codes regarding handle height.
Note that the vertical centerline of an ESM mortise does
NOT pass through the screw holes on the strike.
Mark the locations of the dust box cutout and mounting screws.
For ASM, install the dust box (optional for wood door frames, required for metal
door frames), and check the strike handing on the template. Install the strike
using the screws provided.
1 Mark the Location of the Strike
2 Prepare the Doorframe
A
Mortise the doorframe to receive the dust box,
and drill the pilot holes for the mounting screws
(dimensions and depths marked on template).
B
Position the strike against the doorframe and
align it precisely with the mounting screw holes.
Trace the outline of the strike.
B
With a chisel, remove material from within the
strike outline so that the strike will be flush with
the doorframe.
3 Install the Dust Box and Strike
(
C
L
)
Use only the strike and dust box supplied.
Use of non-approved parts may void the
lock warranty.
!
!
To Next Page
