Kaba Solitaire 710-II Series User Manual

A

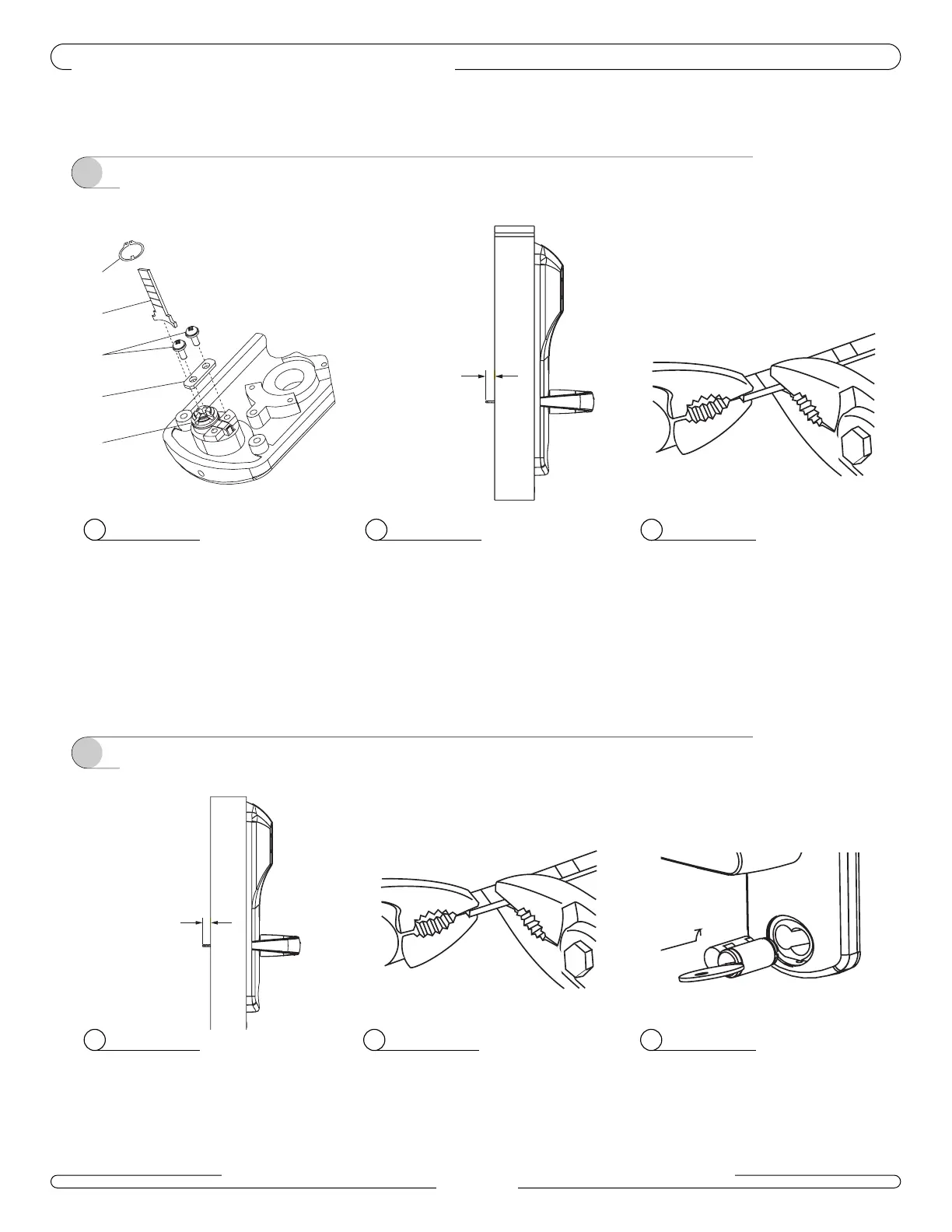

Assemble the key cylinder (D) in the rear of the
outside housing, and secure it using the bridge
(E) and two 8-32 x
9
/16” (14mm) Phillips
screws (F).
Install the tailpiece (G) horizontally in the cylin-
der, and secure it with the retaining clip (W),
using an external ring plier.
C
Break off the tailpiece at the mark using two
pairs of pliers.
B
Hold the outside housing against the door. The
tailpiece should extend between
1
/4” and
5
/8”
beyond the rear face of the door. Mark the tail-
piece accordingly.
V PREPARE THE MECHANICAL OVERRIDE
710-II/740 SERIES INSTALLATION GUIDE • PK2710/08/02
Page 7
2 Removable Core Cylinder Mechanical Override
1 Key-in-Knob Mechanical Override
If you have an electrical override lock, continue on page 8.
A
Hold the outside housing against the door. The
tailpiece should extend between
1
/4” and
5
/8”
beyond the rear face of the door. Mark the tail-
piece accordingly.
B
Break off the tailpiece at the mark using two
pairs of pliers.
C
Install the key cylinder from the front of the out-
side housing, using the control key.
1
/ 4 ” to
5
/ 8 ”
(6.3 to 16mm)
W
G
F
E
D
1
/ 4 ” to
5
/ 8 ”
(6.3 to 16mm)
