KACIFIC MDM2010 - Coaxial Cable Installation Procedure

MDM2010 – ILB3210 Installation Guide
8 | Page

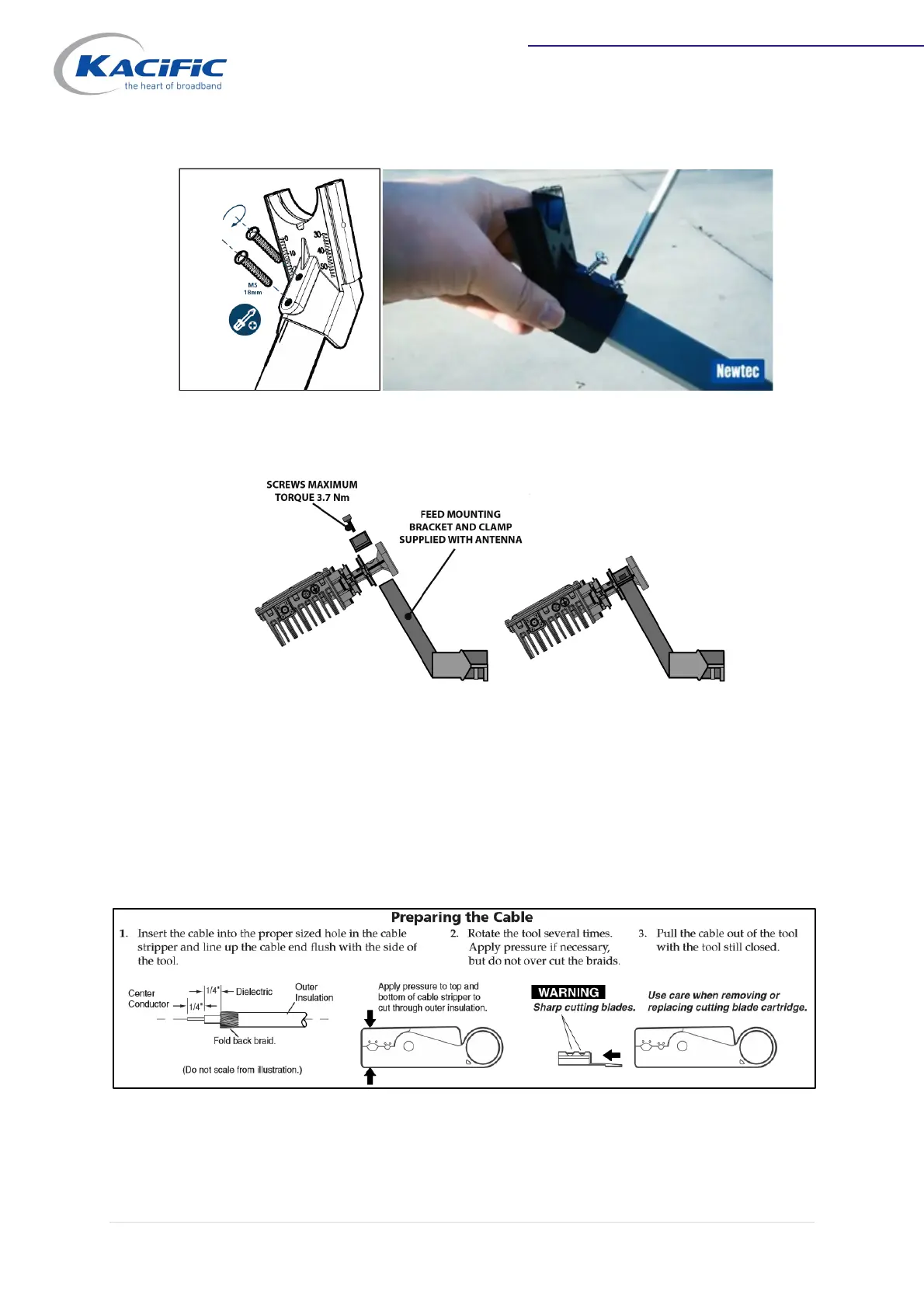

5. Feed clamp assembly:
6. ILB3210 mounting to feed clamp
2.2 Coaxial Cable Installation between Modem and Transceiver
2.2.1 Cable Preparation
Tx and Rx of the iLNB are connected by a single coaxial cable.
