2 Terminal Installation
2.1 Azureshine Antenna ANT2010 Ka-Band 75 cm
2.1.1 Antenna Components

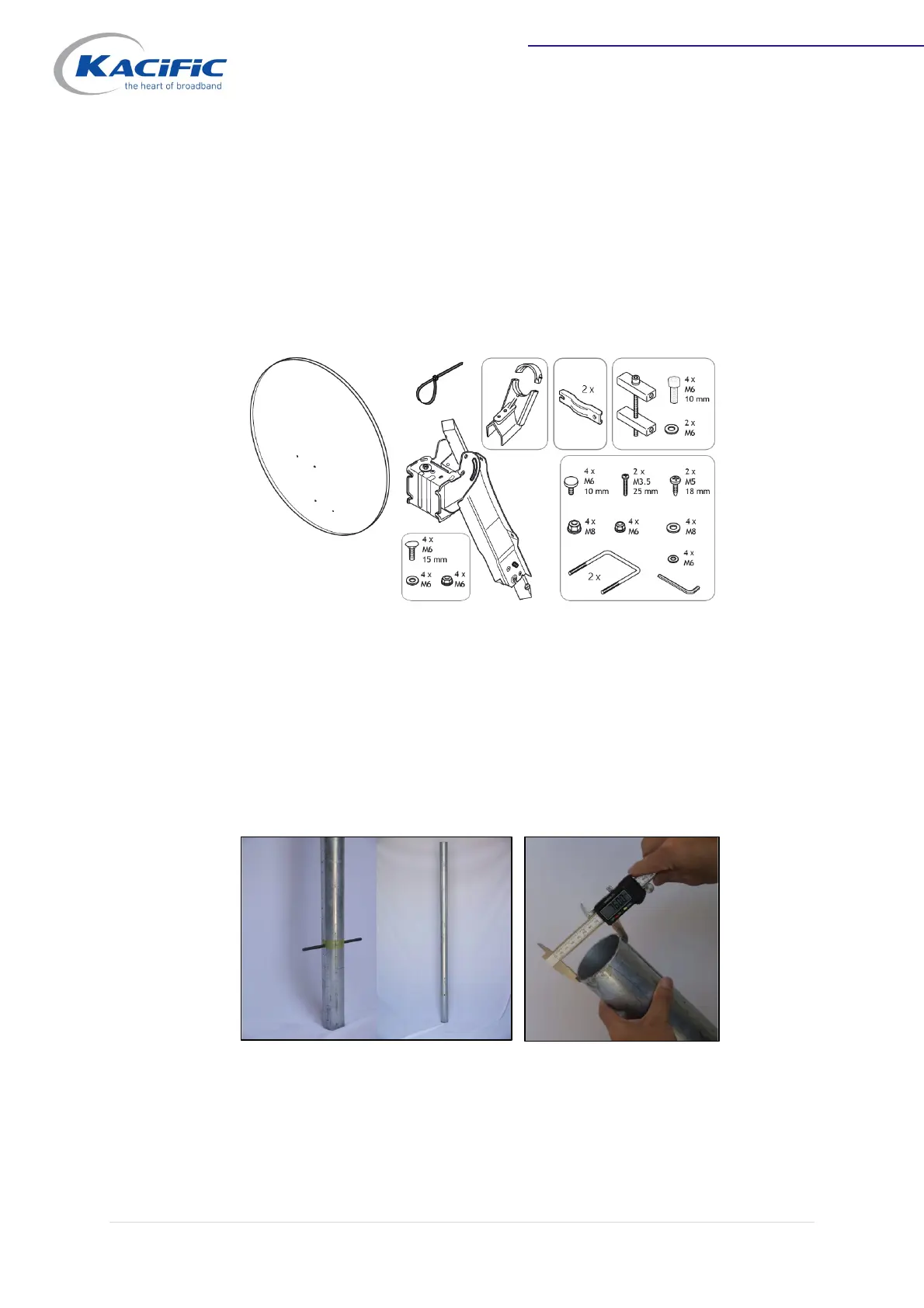

Manufactured by Azureshine, it is a metal plate antenna delivered in a box – see
pictures below:
Picture of detailed antenna components
Ka-band terminals require a rigid antenna fixation so that the antenna remains well
pointed to the satellite even during windy conditions. The pipe must not be too long
to prevent vibrations or flexibility.
Kacific recommends an easy and cheap ground installation that requires only a hot
galvanized pipe and some cement.
1. Hot galvanized steel or aluminium
2. Maximum length 180 cm with 90 cm above ground
3. Outer diameter between 60 mm and maximum 70mm (3 inches)
4. Thickness 2mm or greater
