MDM2010 – ILB3210 Installation Guide
14 | Page

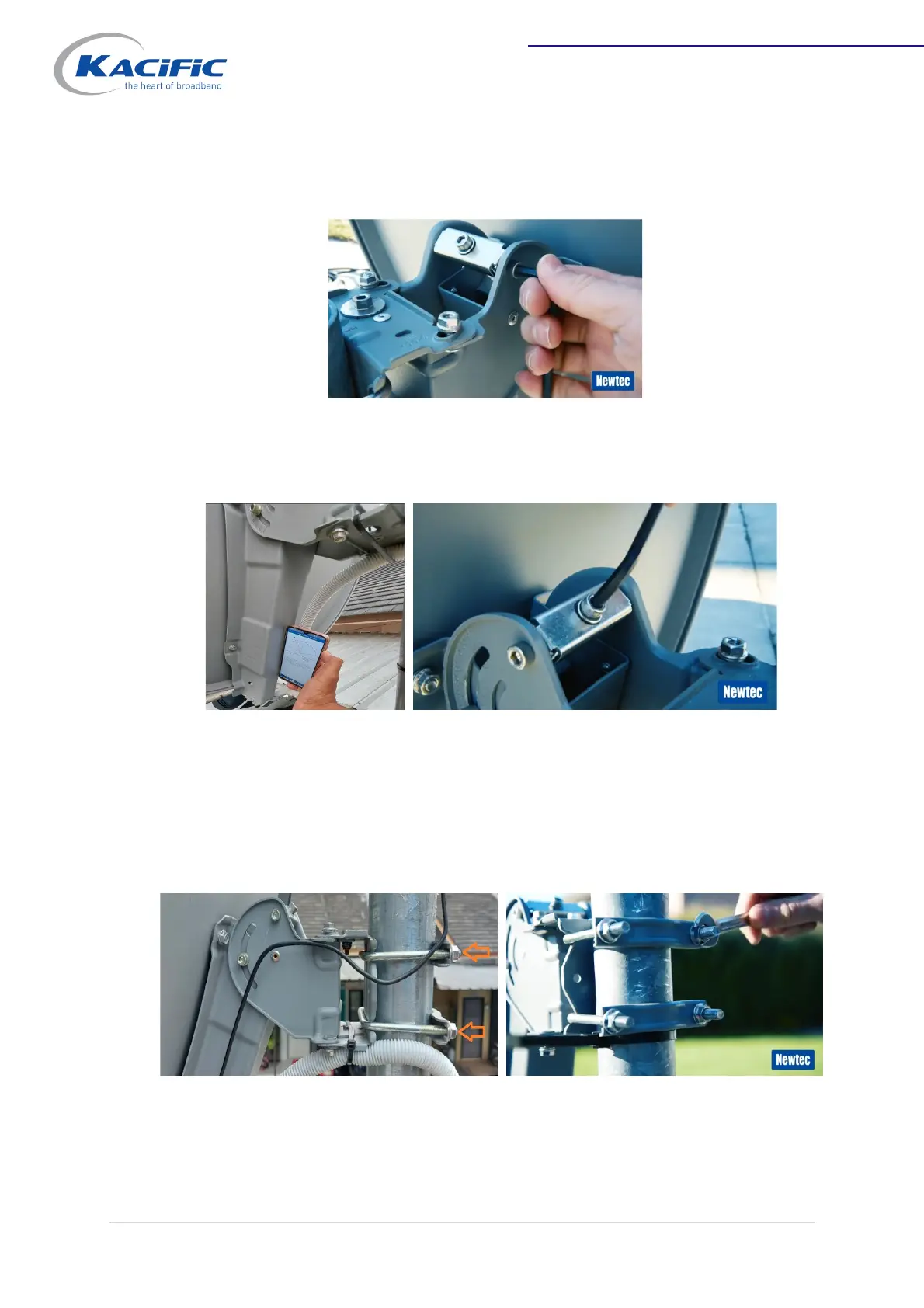

Elevation Adjustment (Azureshine Antenna Only)
Loosen the dish elevation bolts and adjust the elevation to point to the satellite.
Hold the long edge of the smartphone on the line printed on the rear side of the
antenna.
Adjust the elevation by hand, slowly (+/- 0.5° each time), until the red line becomes
green. The elevation is now correct.
Azimuth Adjustment
Go behind the antenna, loosen the azimuth bolts just enough to rotate around the pole.
