MDM2010 – ILB3210 Installation Guide
17 | Page

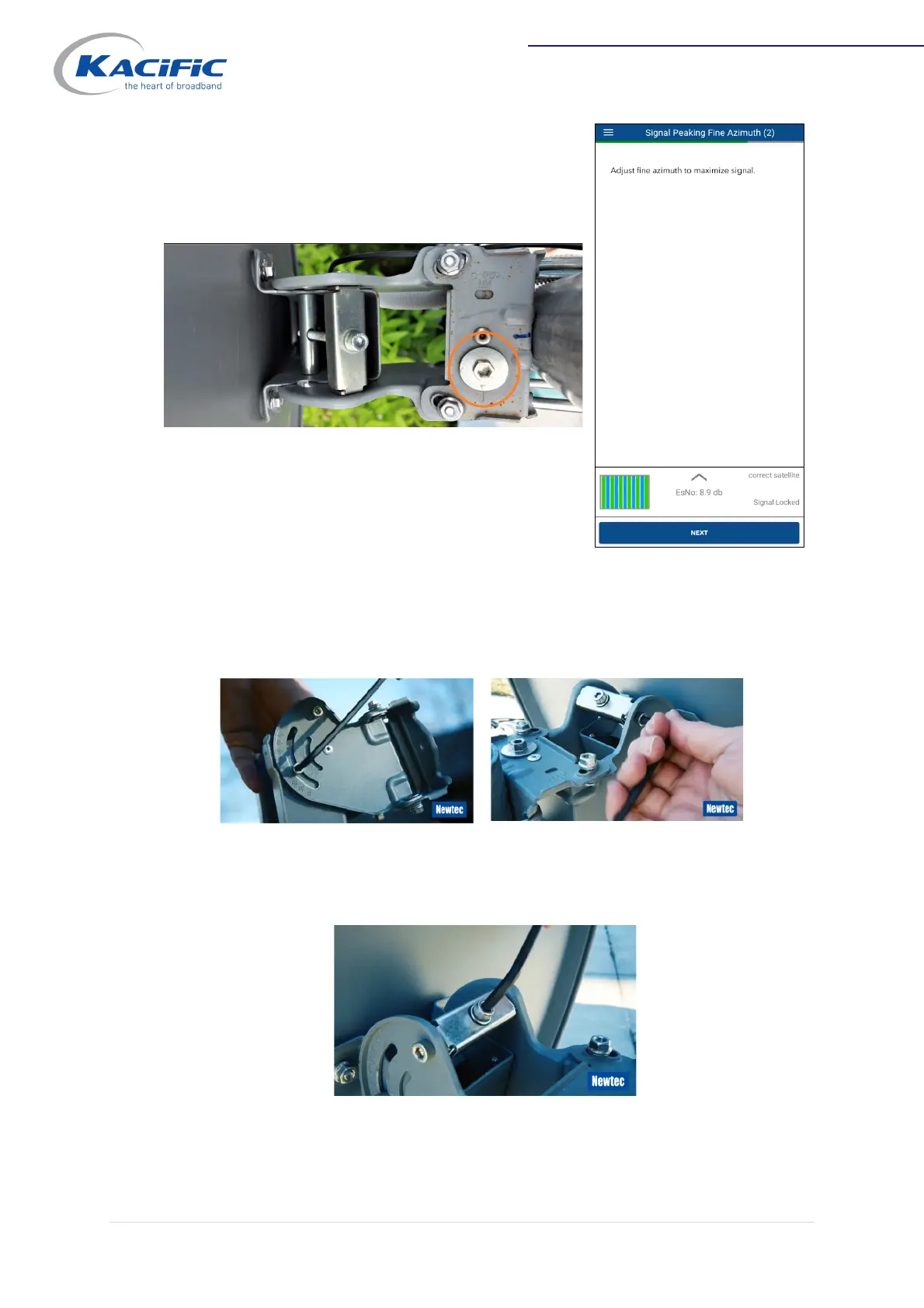

Loosen both sides of elevation bolts by ¼ turn.
If the elevation fine adjustment screw does not actuate properly, loosen the elevation
bolts more.
Adjust elevation slowly with the smaller steps to maximize the EsNo
value displayed on
the application. Stop when it reaches maximum EsNo (
Elevation peaking signal).
When the maximum signal is reached for both Azimuth and Elevation:
Tighten the rough elevation bolts alternatively so that the signal stays at its
maximum.
