1.4 Identification
You will find the name plate with the following data for service and other require-
ments specific to installation on the right side panel of the product:
 Product name
 Part no.
 Serial no.
 Date of manufacture
 Technical data
 Disposal information
 Certification marking, CE marking.
KACO new energy
Carl-Zeiss-Straße 1
74172 Neckarsulm
Made in Germany
KACO blueplanet 125 TL3 M1 WM OD IIP0
Part number 1001623
Serial number 125TL01654321 Year Q4 / 18
Input
Vmax PV / lsc PV (max) / Inom PV 1500 V / 300 A / 160 A
V-MPP at Pnom / V- range 875V - 1300V / 875V - 1450V
Output
Nominal voltage
600 V (3P+PE)
Voltage range continuous operation 480 V - 760 V (Ph-Ph)
Current (maximum continuous) 3 x 132,3 A
Frequency range 45 Hz - 65 Hz
Output
Power
Snom at 600 V Unom 125 000 VA
Smax at 600 V Unom
137 500 VA
Reactive power cos phi 0,3-1 ind/cap
Environ-
ment
Temperature range - 25...+60°C / -13...+140 °F
Protection class / Ingress protection I / IP66 / NEMA 4X
ARC fault circuit protection none
Interface protection according to country specific requirements, details see manual
Grid Support Interactive Inverter
Max. Backfeed Current 0 A
Conf. to UL 1741 & UL 62109-1
Cert. to CSA C22.2 No. 107.1 &
CAN/CSA Std. C22.2 No. 62019-1
CAN/CSA Std. C22.2 No. 62109-2
No galvanic separation / Ungrounded Arrays Only

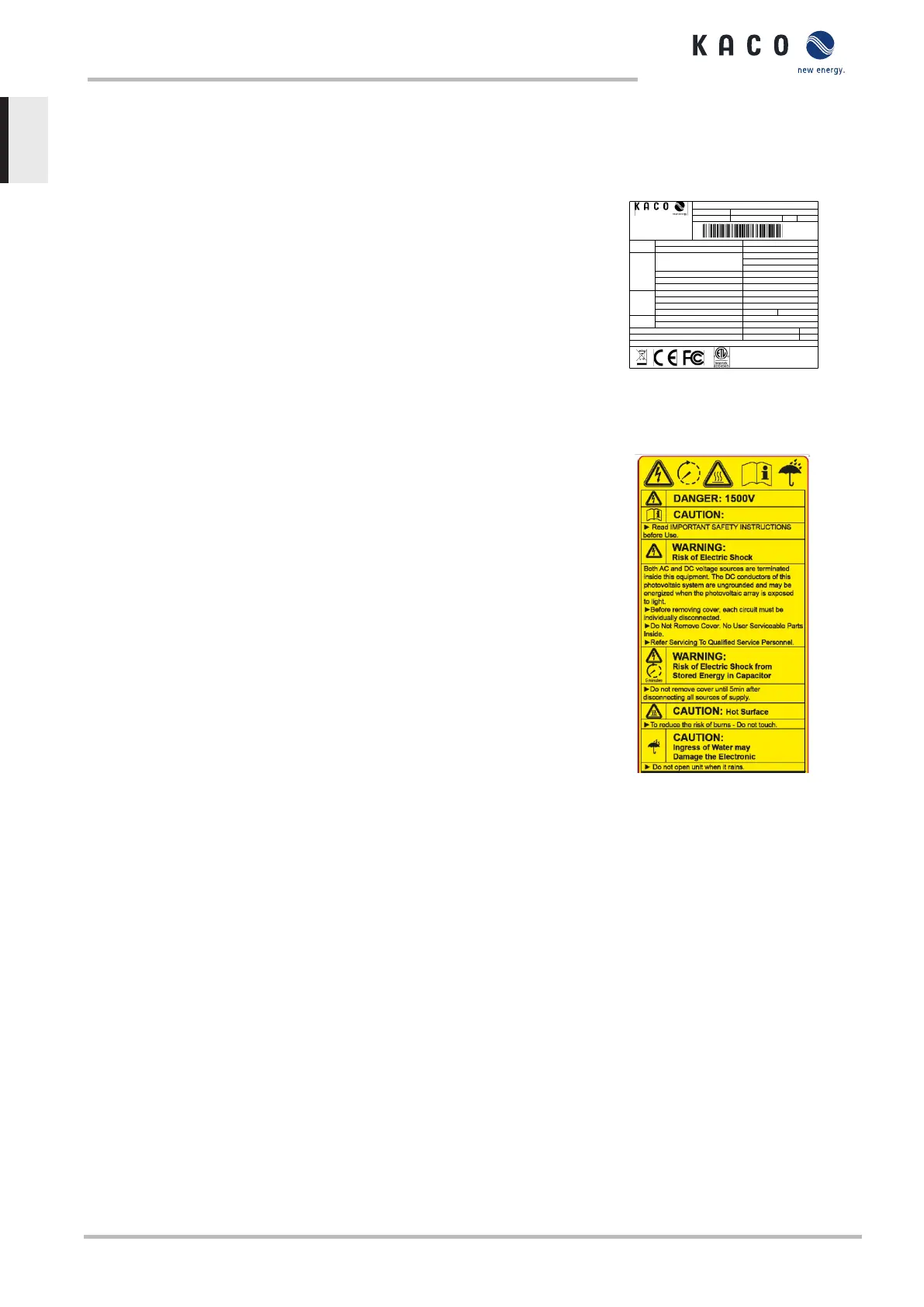

Fig.1: Name plate
1.5 Warnings on the device
A warning sticker is affixed to the device. Read the warnings carefully.
Do not remove the sticker. If the sticker is missing or is illegible, please contact a
KACO representative or distributor.
 Article number:
Fig.2: Warning sticker
1.6 Target group
All activities described in the document may only be carried out by specially trained personnel with the following qualifi-
cations:
 Knowledge about how an inverter functions and operates.
 Training in the handling of hazards and risks during the installation and operation of electrical devices and systems.
 Education concerning the installation and start-up of electrical devices and systems.
 Knowledge of applicable standards and directives.
 Knowledge and adherence to this document with all safety notices.
KACO blueplanet 87.0 TL3 KACO blueplanet 92.0 TL3 KACO blueplanet 110 TL3 KACO blueplanet 125 TL3
KACO blueplanet 137 TL3 KACO blueplanet 150 TL3
Page 6
EN-US
