KAIWEETS
RECEPTACLE TESTER
KM117B INSTRUCTION
Designed to detect common wiring
problems in standard and GFCI receptacles.
In addition, the tester with the LCD can measure the Phase Voltage,
Leakage Voltage and Current
Diagnostics chart
Indicator | Condition Explanation
CORRECT Receptacle is wired correctly
OPEN GROUND
Ground contact is not connected;|
Ground wire is not connected to the|
ground.
OPEN NEUTRAL
Neutral contact is not connected
HOT/GRD
REVERSE
Hot and ground connections are
reversed
HOT/NEU
REVERSE
Hot and neutral connections are|
reversed
HOT/GRD
REVERSE, OPEN
GRD
Reverse connection between the)|
hot line and ground line, and the|
ground line is unconnected.
@ Indicator llluminated O Indicator Not llluminated
support@kaiweets.com

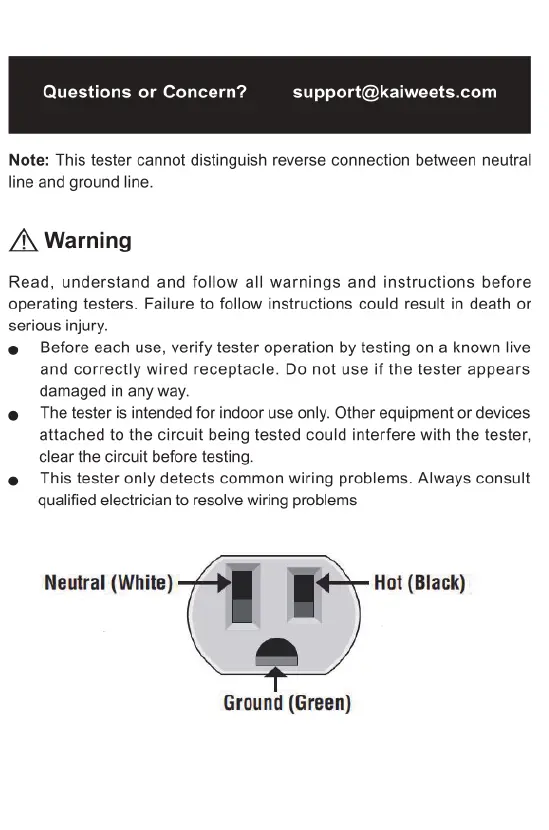

Questions or Concern?
Note: This tester cannot distinguish reverse connection between neutral
line and ground line.
/\ Warning
Read, understand and follow all warnings and instructions before
operating testers. Failure to follow instructions could result in death or
serious injury.
e Before each use, verify tester operation by testing on a known live
and correctly wired receptacle. Do not use if the tester appears
damaged in any way.
e Thetester is intended for indoor use only. Other equipment or devices
attached to the circuit being tested could interfere with the tester,
clear the circuit before testing
e This tester only detects common wiring problems. Always consult
qualified electrician to resolve wiring problems
Neutral (White) Hot (Black)
Ground (Green)
