Kampmann KaCool D 1 - Connection Dimensions

13KaCool D02.02.2017

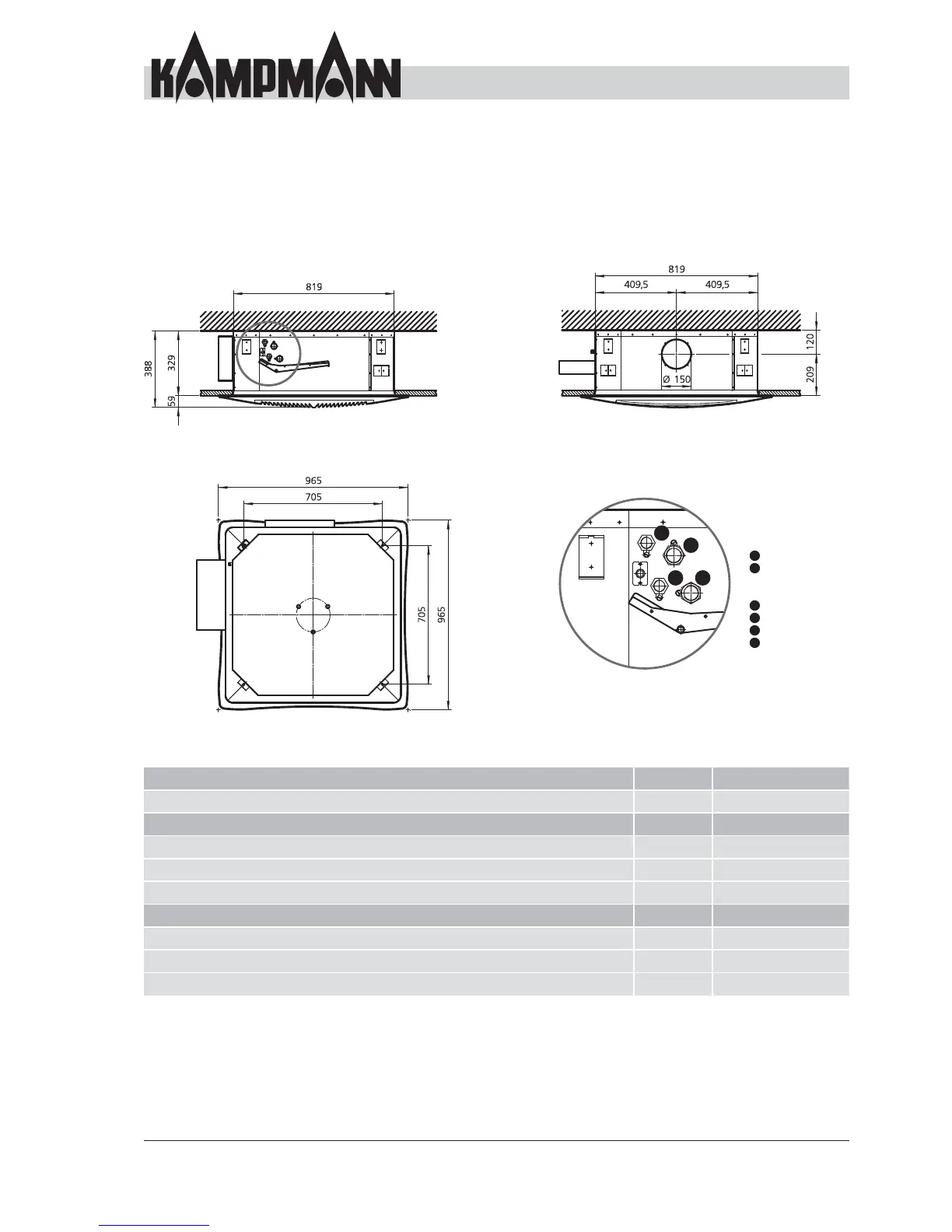

Model 4-6 (dimensions in mm)
Unit size Model 4–6
Condensation connection 1/2"
Connections without valve kit
Water inlet/outlet 2-pipe Inches 3/4"
Water inlet/outlet 4-pipe cooling Inches 3/4"
Water inlet/outlet 4-pipe heating Inches 1/2"
Connections with valve kit
Water inlet/outlet 2-pipe Inches 1"
Water inlet/outlet 4-pipe cooling Inches 1"
Water inlet/outlet 4-pipe heating Inches 3/4"
Front view Side view
Top view Details
2-pipe
3
Water inlet
4
Water outlet
4-pipe
1
Hot water inlet
2
Hot water outlet
3
Cold water inlet
4
Cold water outlet
1
2
3
4
