Installation and Connection
Requirements at the installation site
6 Installation and Connection
6.1 Requirements at the installation site
Only install the unit if the following conditions are met:
The installation site will bear the unit's weight
( Chapter 3 "Technical Data" on page 14).
The unit is guaranteed to be overload-proof and free of
vibrations (consult a structural engineer or architect if
necessary, also for wall or ceiling openings).
The required minimum clearances from the unit to the wall/
ceiling/fl oor are observed (P. 28).
The air fl ow must be able to circulate freely.
Drilling positions for drilling work to install the unit are
positioned away from electrical cables or pipes.
Adequately dimensioned connections for the water supply
and drainage are available on site (
Chapter 3 "Technical
Data" on page 14).
Mounting of units without mechanical torsion or stress must
be guaranteed at any installation site.
An electrical power supply is available on site ( Chapter 3
"Technical Data" on page 14).

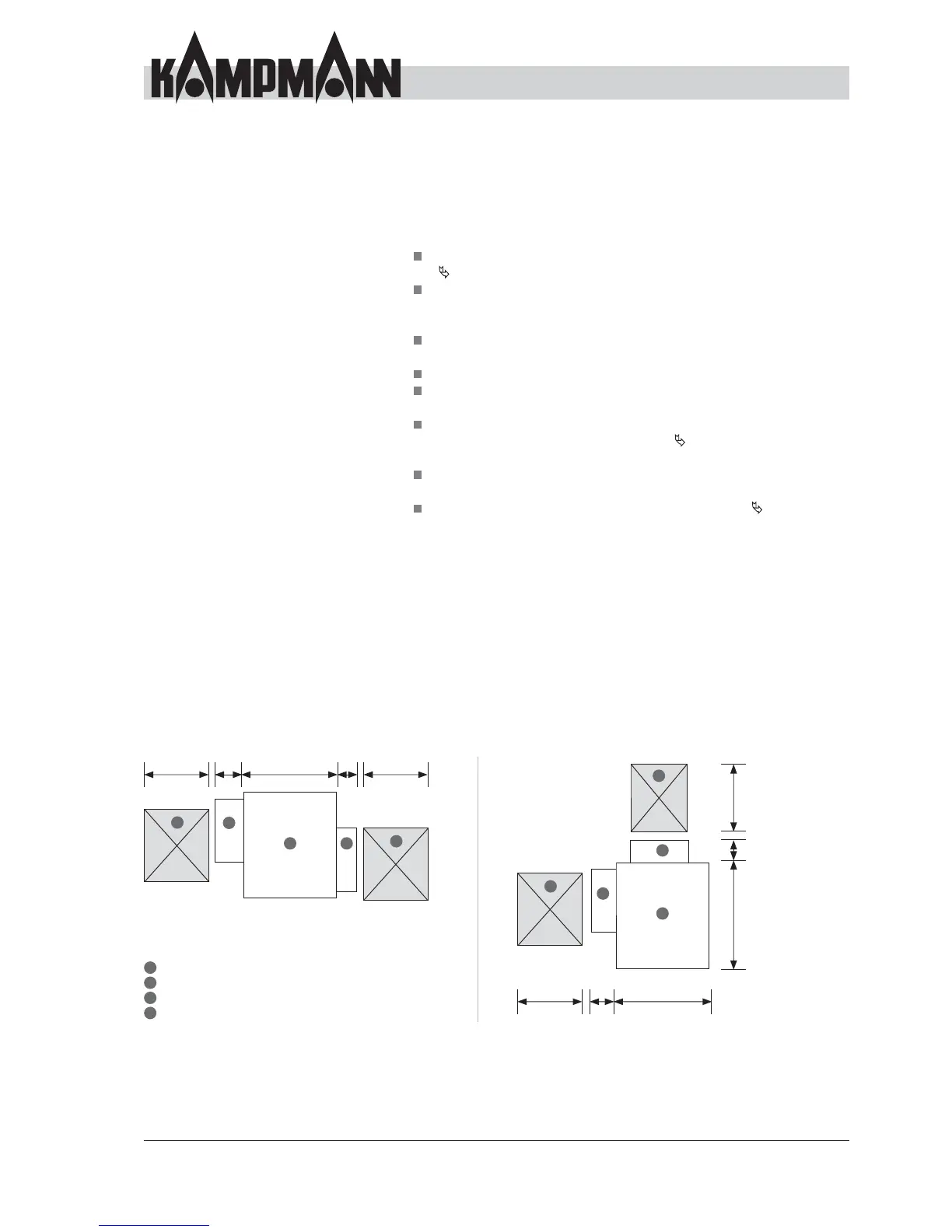

6.2 Inspection Openings with a Sealed Ceiling
Inspection opening connection Two inspection openings are needed for each cassette
to maintain and service ceiling cassettes with sealed ceiling
systems.
1
3
4
500
500
820180
182
2
820
Model 4 – 6Model 1 – 3
1
Condensation tray for valves
2
Chilled water cassette
3
Electrical control box
4
Service fl aps (500 x 500 mm recommended)
4
182
1
2 3
500 500572182
4
4
4
