Installation and Connection
Accessories: External condensation pump
Accessories: External air outlets
Up to two air pipes can be connected to the cassettes to supply
adjacent rooms (e.g. changing rooms) with conditioned air
from the cassette. Two pre-punched openings with a diameter
of 150 mm have to be removed on the sides of the cassette
to which on-site fl anges have to be fi tted. Insulated air ducts
and outlets can be connected to them. Seal the respective air
outlets with an adhesive tape.
Accessories: External condensation pump, art. no. 325007000410
If the condensation pumps installed in the cassettes do not
reach the max. head (650 mm), you can use an additional
external condensation pump. This can be fi tted adjacent to or
onto the cassette. To do this, insert the condensation hose of
the cassette into the collecting vessel of the external pump.
Please refer to the supplementary leafl et relating to the
external condensation pump for further technical data about
the pump.
The power supply must be provided via a separate supply line.
The fault alarm contact must be integrated in the controls of
the cooling valve and this must be switched off in case of a
fault.
The external condensation pump produces higher noise levels.
This must be taken into consideration when choosing the
installation site!

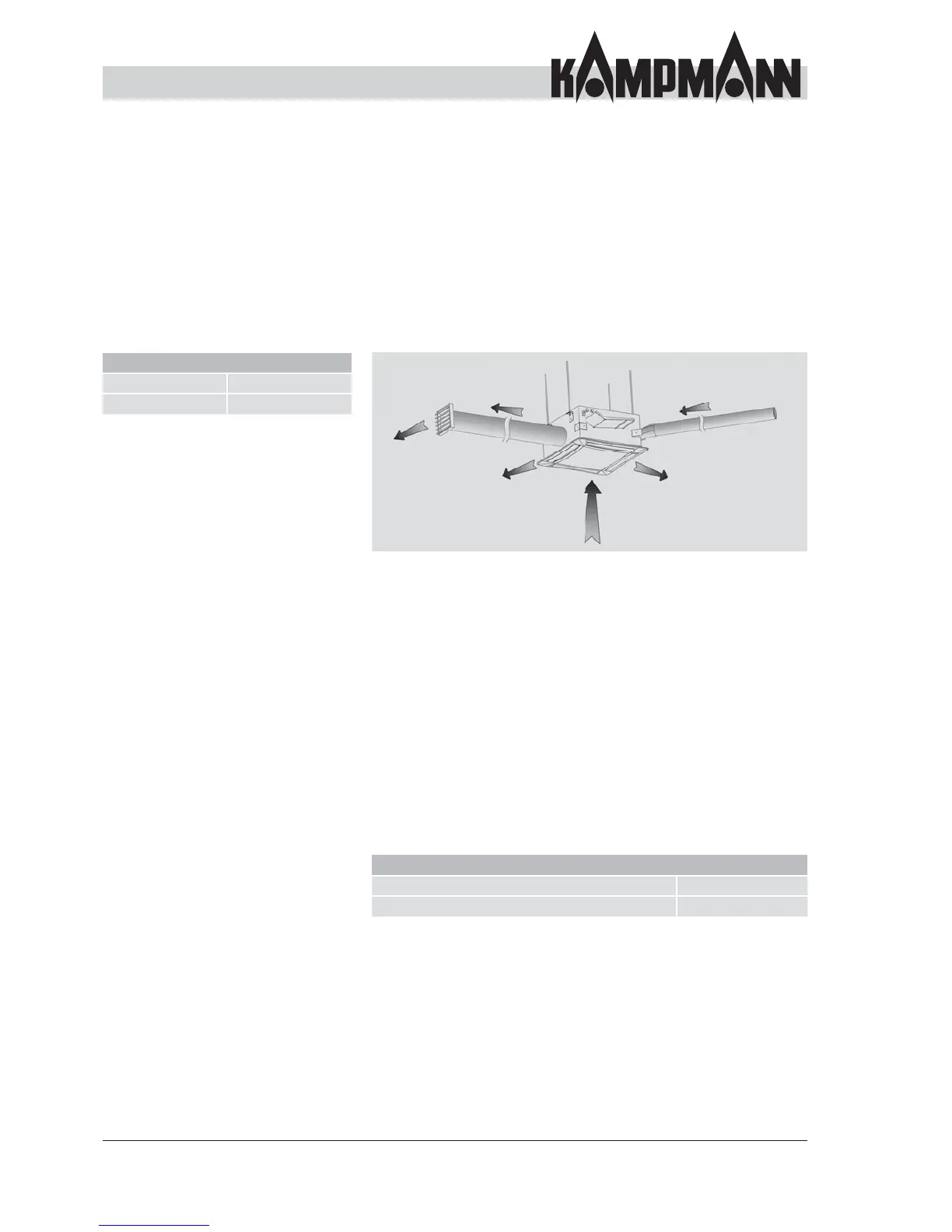

Air distribution Primary air fl ow
Recirculating air
Connection dimensions
Model 1–3 Model 4–6
150 mm 180 mm
Technical data:
Max. head: 4.6 Meter
Maximum number of connectable cassettes: 2 no. 2 Stück
