2.3 Twisted Pair Cable Connection & Termination Scheme
The twisted pair used in this extender MUST be a straight-through cable.
3. System Connection
3.1 System Diagram

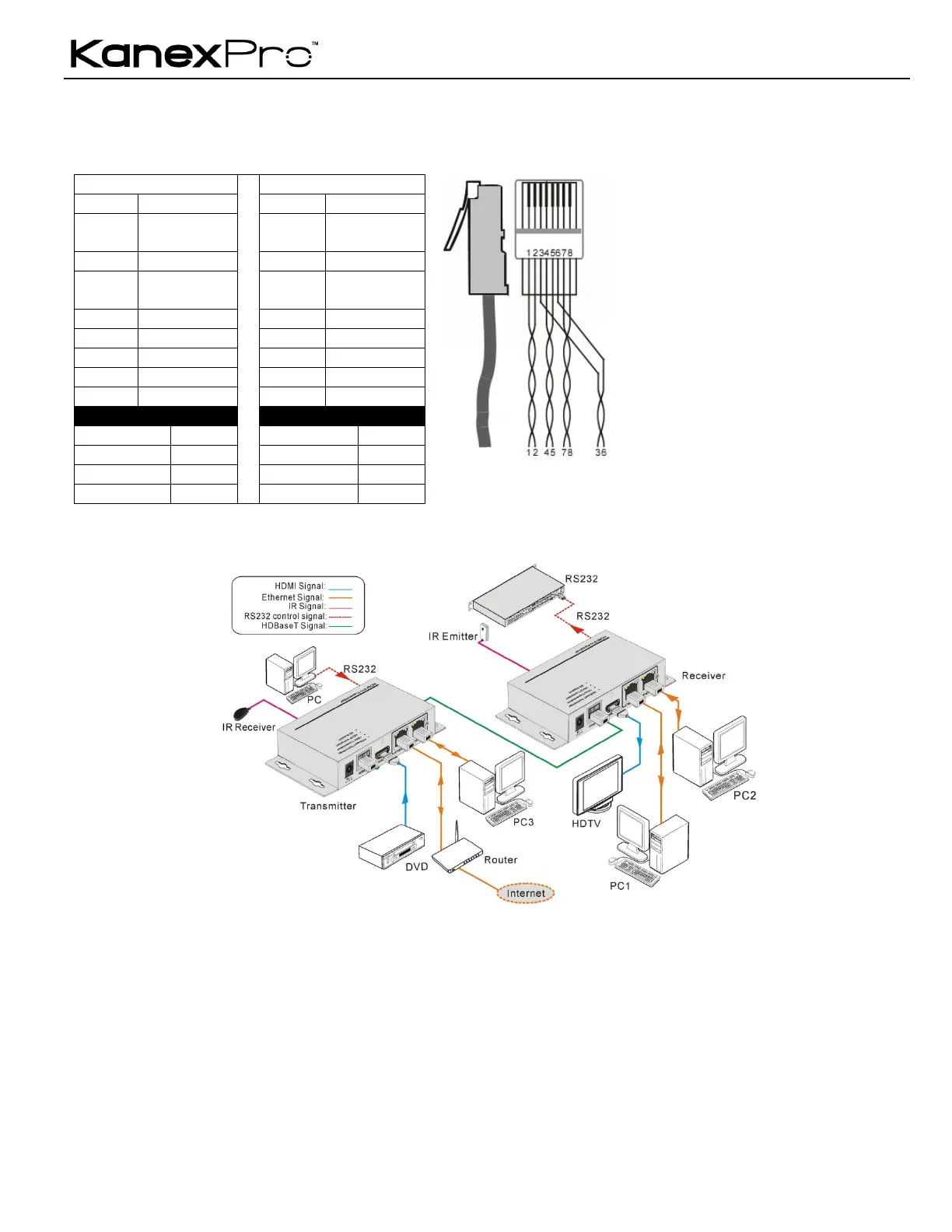

Figure 3 System Diagram
TIA/EIA T568A
TIA/EIA T568B
Pin
Cable color
Pin
Cable color
1
Green white
1
Orange
white
2
Green
2
Orange
3
Orange
white
3
Green white
4
Blue
4
Blue
5
Blue white
5
Blue white
6
Orange
6
Green
7
Brown white
7
Brown white
8
Brown
8
Brown
1st Ground
4--5
1st Ground
4--5
2nd Ground
3--6
2nd Ground
1--2
3rd Group
1--2
3rd Group
3--6
4th Group
7--8
4th Group
7--8
