HAND-HELDS
19
Enabling the Isolation Circuit in the KAM
1. Refer to the Assembly and Disassembly section for instructions if necessary and remove the
KAM from its case.

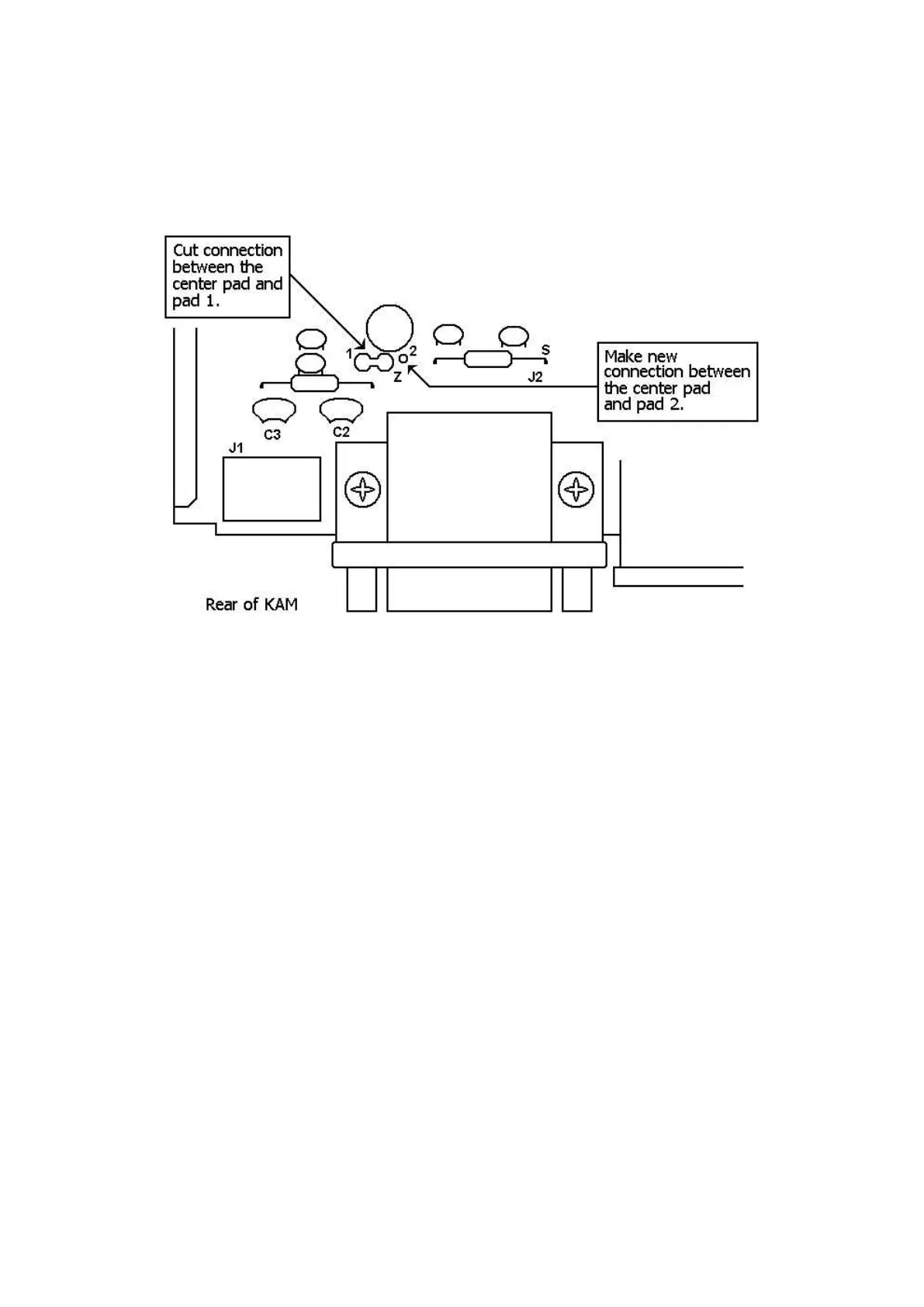

2. Locate point Z on the PC board. This point is at the rear, near the HF radio output port and
power jack.
3. Locate the three pads associated with Z. Note, that the center pad and the pad marked 1 is
larger than the pad marked 2.
4. Carefully cut the connection between the center pad and pad and 1.
5. Make a new connection between the center pad 2. You may wish to make this connection on
the bottom of the PC board instead of the component side.
6. Connect the AFSK and PTT lines together.
