8 English

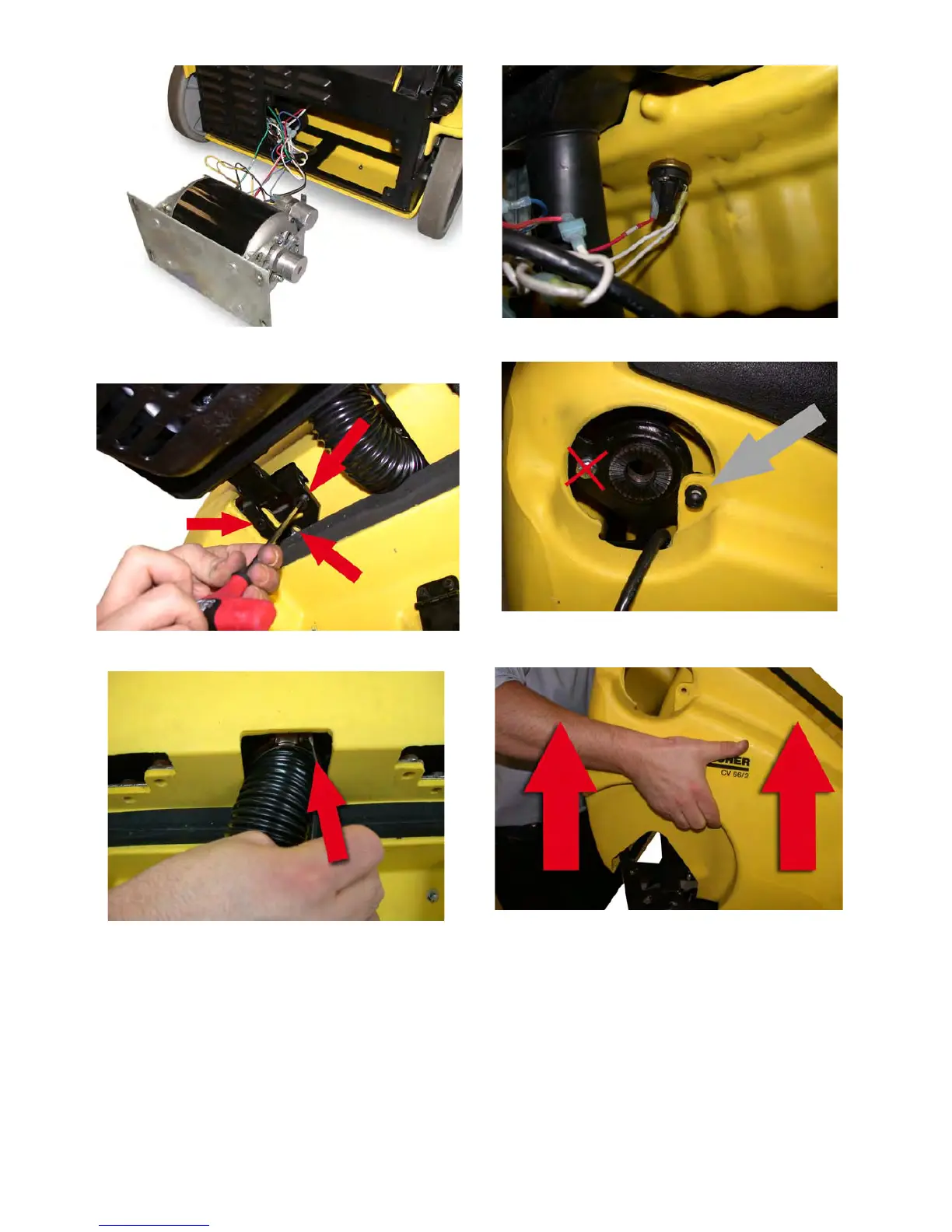

Î Disconnect the cables of the brush motor at the connectors
Î Tilt appliance back
Î Remove the cover with filter basket
Î Unscrew the screws on the hinge (increased force: The
screws are secured with screw adhesive
Î Disconnect the micro switch cable in the appliance from the
connections
Î Loosen the hose clamp on the suction hose, do not pull off
Î Pull the suction hose off the brush head
Î Remove the cover from the appliance and set aside
Î Remove the suction turbine and disconnect the connections
Î Disconnect the connector on the pressure switch
Î Do not remove the pressure switch
Î Unscrew the fastening screw at the top of the frame
Î Slide the wire harness into the appliance sot that it will not be
pinched when the hood is lifted
Î Lift the hood off evenly toward the top, agitate a little
Î If you are unable to lift off the appliance hood, pull the side
parts apart a little.
Î There is a support strut in the frame. If the hood gets stuck on
it, it must be removed.
