English 5.905-945.0 Rev. 00 (06/15) 29
When working on the device, please always use the cur-
rent circuit diagram in DISIS.

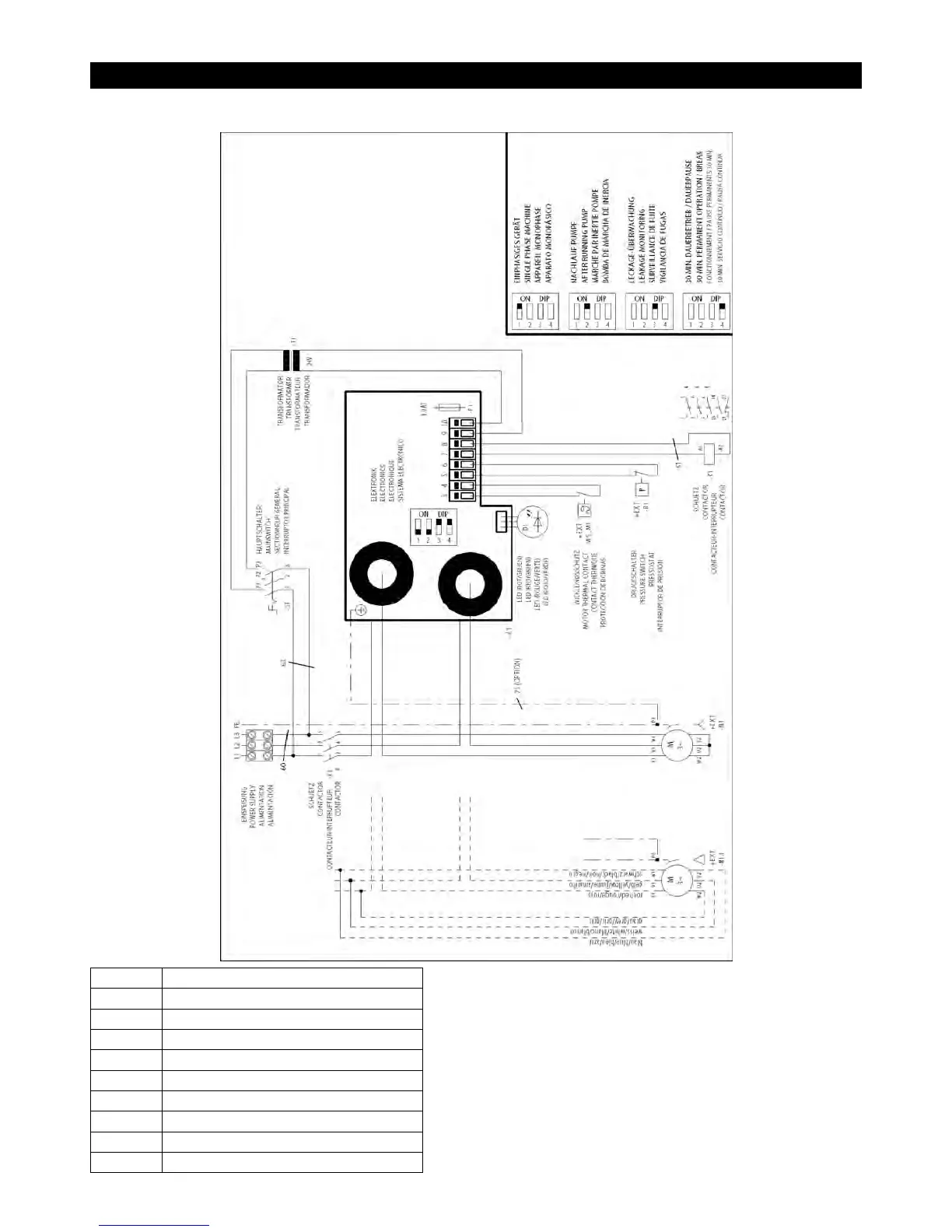

11 Circuit diagram
A1 Control chip
B1 Pressure switch
D1 Operating display (LED)
F1 Fuse
K1 Contactor
M1 Motor
Q1/S1 Power switch
Q2 Pressure switch
T1 Transformer
WS_M1 Winding protection contact
