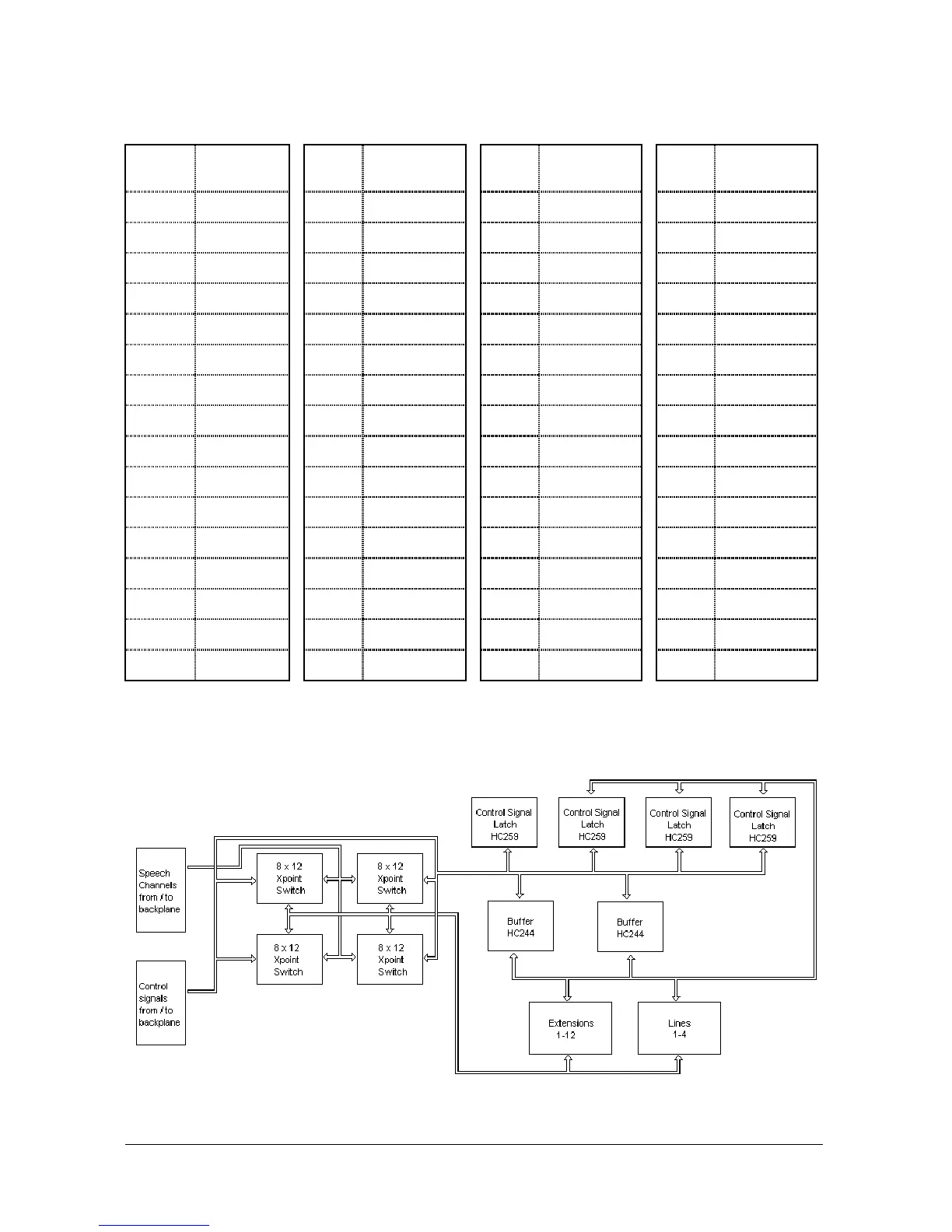

MS128 EX1B/EX2B – BPL128 Connector
Pin Signal Pin Signal Pin Signal Pin Signal
1 + 1 VDC 17 X13 33 + 12 VDC 49 X7
2 - 5 VDC 18 X12 34 - 5 VDC 50 X8
3 CONT3 19 GNDCPU 35 A0 51 GNDCPU
4 - 20 X11 36 A1 52 X16
5 CONT1 21 X9 37 A2 53 X10
6 - 22 X17 38 CS 54 X14
7 CONT2 23 X15 39 DATA 55 X5
8 B 24 X0 40 RD 56 X22
9 DA1 25 X1 41 WR 57 X21
10 DA2 26 X2 42 - 58 X20
11 A 27 X18 43 DA0 59 X19
12 C 28 X3 44 D 60 X23
13 - 29 + 5 VDC 45 - 61 + 5 VDC
14 VAG 30 RING 46 VAG 62 RING
15 X4 31 GND 47 X6 63 GND
16 + 5 VDC 32 - 24 VDC 48 + 5 VDC 64 - 24 VDC
There is a LED on the front panel of MS128 EX1 / MS128 EX2 cards. This LED
turns on when any port on the card is in use. During Reset or Parameter Download
these LEDs remain on.
Figure A-9
