Installation Instructions – 40649TL
For Technical Support Call: 800-343-7486 Monday-Friday 7AM - 4 PM (PST) Page 11

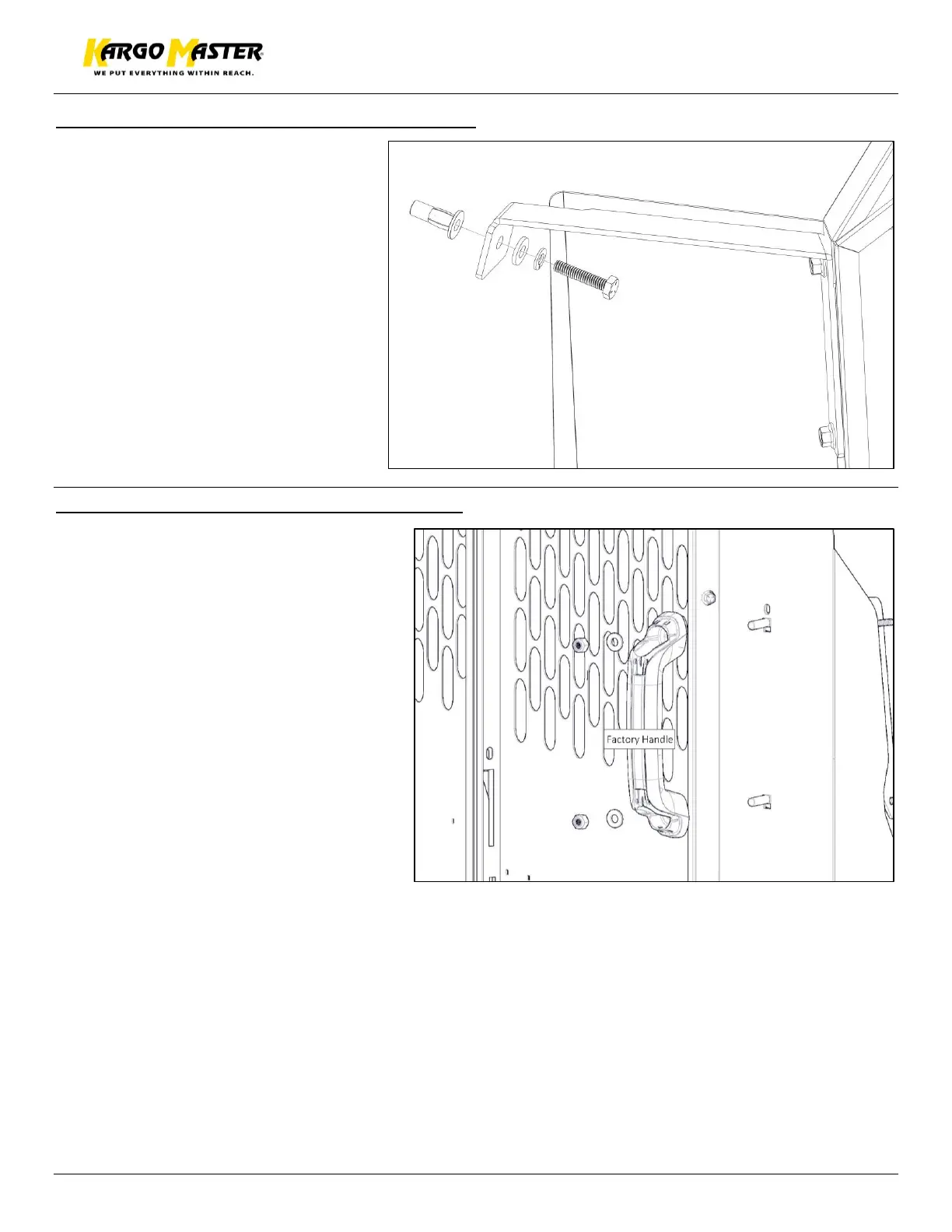

Step 10 – Installing Roof Support to Van Siding
 On the driver’s side of van, the roof
support should line up with a factory
hole high in van siding.
 Install a plus nut into the existing
hole in the van siding.
 Bolt through the roof support into
the plus nut using a
1/4" x 1-1/4” hex bolt, 1/4” lock
washer, and a 1/4" washer.
 Snug tighten.
Step 11 – Installing Handle to Handle Bracket
 From the backside, using two
5/16” x 1-1/4” carriage bolts, two
5/16” flat washers, and two 5/16” lock
nuts, bolt through the rectangular slots
in the previously installed handle
mount, the passenger side wing, and
then through factory handle.
 Snug tighten.
