Karma S-Ergo 100 Series User Manual

15
While completing step 2, never put your fingers around
the sides or under the wheelchair as they can be trapped
between the seat and the frame. (See the right figure.)
4.1.2 Folding
4.1.2.1 Flip up the footplates. (See Figure 4.7.)
4.1.2.2 Pull down the release pin and pull up the rigidifying push-bar. (For S-106,
see Figure 4.8 and 4.9.)
4.1.2.3 Pull up the seat upholstery by holding its central portion of the front and
rear ends. (See Figure 4.10.)
4.1.2.4 Fold down the backrest by pressing the back joints. (See Figure 4.11.)
4.1.2.5 Folding is now completed.
4.1.3 Flip Back Armrest (for S-Ergo 125)
4.1.3.1 You may flip back the armrest by put your hand across the tube and
pressing the lever located at the front base of armrest. Upon pressing the
lever, you can lift and flip the armrest backwards.（See Figure 4.12）。
4.1.3.2 Pull down the armrest until fix stop to re-assemble.（See Figure 4.13）。

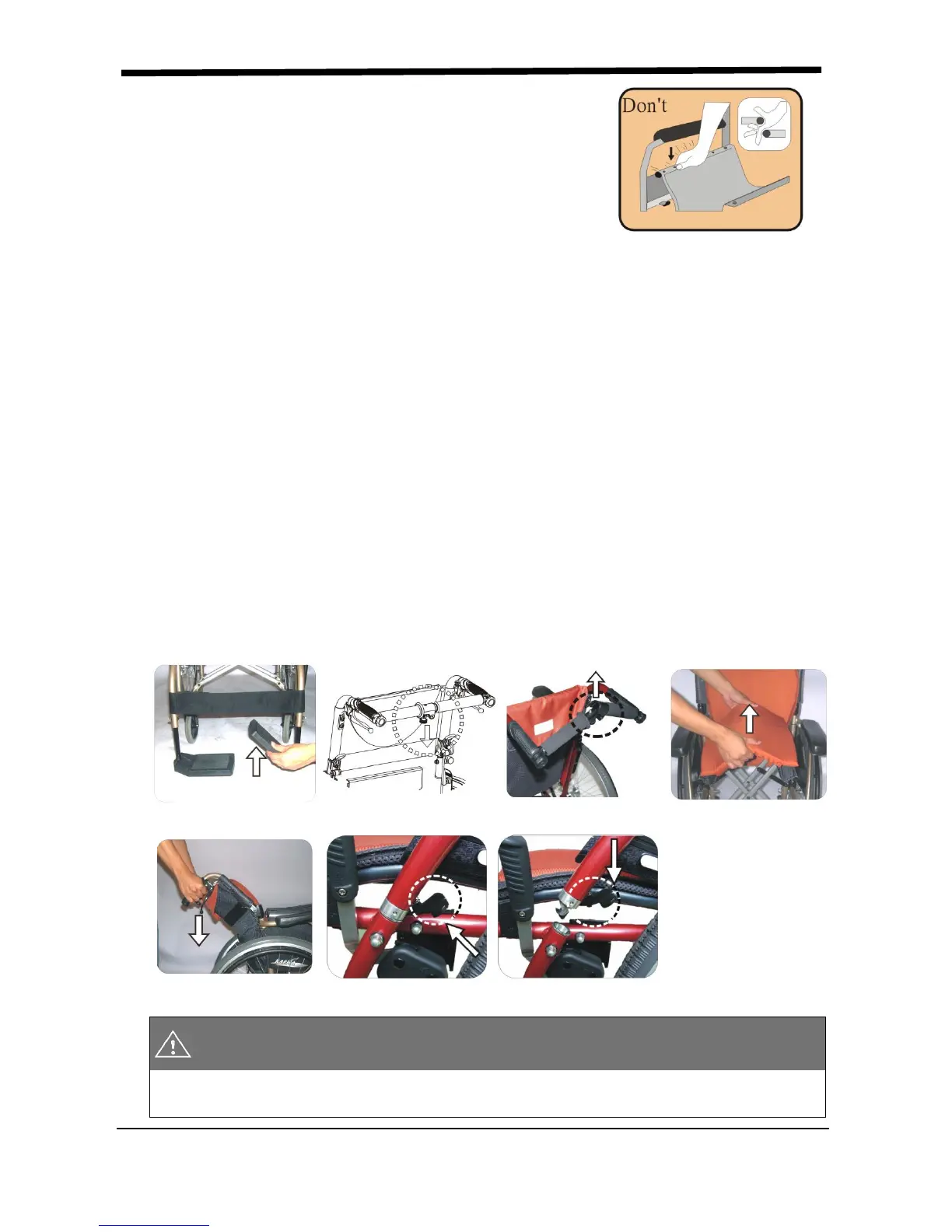

Figure 4.7
Figure 4.8
Figure 4.9
Figure 4.10
Figure 4.11
Figure 4.12
Figure 4.13
CAUTION:
● Be careful not to get your fingers caught when folding the wheelchair.
