Karma S-Ergo 100 Series User Manual

16

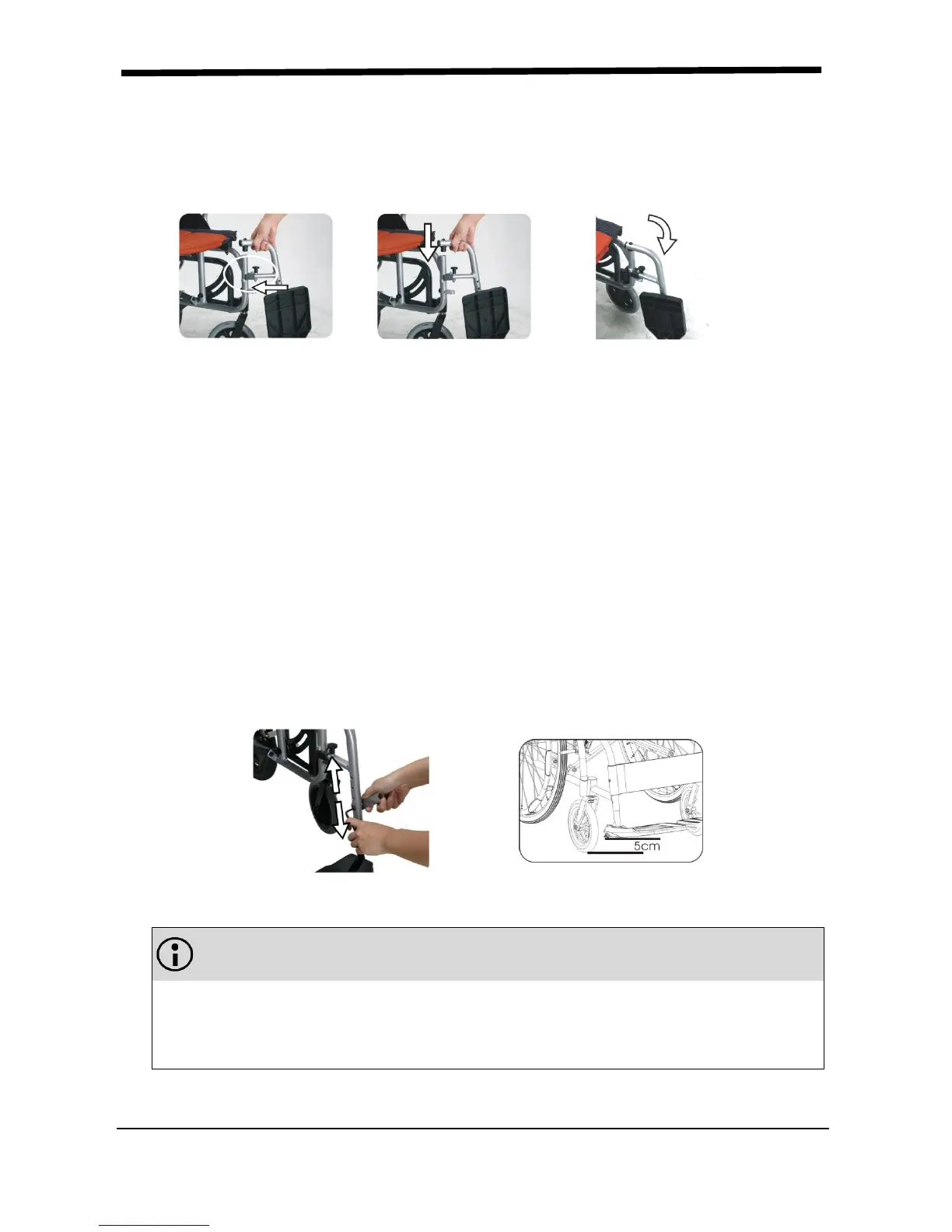

4.1.4 Install footrest (S-Ergo 115)
4.1.4.1 Holding the swing-away footrest, lower it into its coupling at 45° from the
side. Swing the footrest towards the middle until you hear it click into
place. (See Figure 4.14~4.16)
Figure 4.14
Figure 4.15
Figure 4.16
4.1.5 Important DO's and DON'Ts
4.1.5.1 Do: keep axles clean and lubricate with light oil or maintenance spray.
4.1.5.2 Do: maintain correct tyre pressure if pneumatic tyres are used.
4.1.5.3 Do not: Try to detach the wheels while the wheelchair is occupied even it is
installed with anti-tippers.
4.1.6 Adjust Footplate Height
4.1.6.1 To adjust footplate height, use the KARMA tool provided to loosen the bolt
at the side of the footrest arm.
4.1.6.2 Adjust it to the desired height, re-tighten the screw and make sure the
footplate is firm. Then tighten the nut as a locknut from outside. (See
Figure 4.17)
Figure 4.17
Figure 4.18
4.1.7 Adjust Backrest (for S-106)
4.1.7.1 To suit the user's need, the backrest can be adjust to 95°, 100°, 105°
SUGGESTION:
● Make sure that the footplate height is adjusted properly according to the
users calf length to reduce pressure on the body.
● The footplate height must be at least 5cm from the ground. (See Figure
4.18.)
