Set of 5 Interchangeable Nozzles (5)
# Item Part # Qty
1 3/8” x 2.25” Bolt 820097 1
2 3/8” x 4” bolt 820090 1
3 Linden Nozzle 820111 1
4 Sequoia Nozzle 820131 1
5 Juniper Nozzle 820140 1
6 Willow Nozzle 820150 1
7 Cypress Nozzle 820120 1
8 Collar for Cypress Nozzle 820115 1
Also Included:
• Mooring Rope Tube Weights (2)
• Cord in separate box (1) (depending on size of
cord)
• Control Box (C-25 for 120V units in Float box
or C-85 for 240V units in separate box) (1) (Not
Pictured)
TOOLS & SUPPLIES NEEDED
• Anchors or stakes for installing unit (2)
• # 2 Phillips head screw driver
• 120V or 240V Electrical Supply near pond on a
post with room for mounting the C-25 or C-85
• #10 x 1” long or longer screw(s) for mounting the
C-25 (3) or C-85 (4)
• 7/16” Socket and Ratchet
• 7/16” Wrench
• 11/32” wrench (for #8 fasteners)

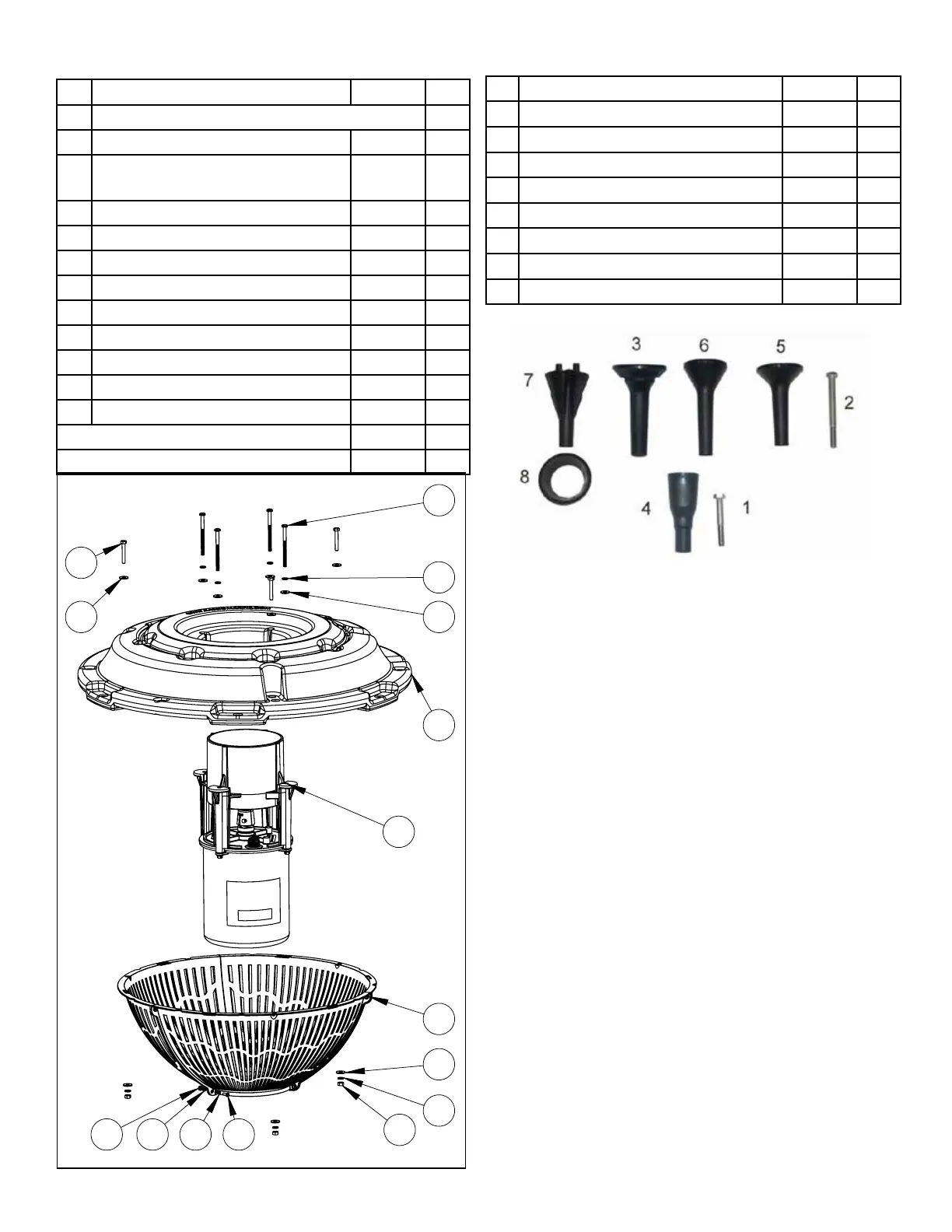

3400JF, 3400HJF Parts Included
# Item Part# Qty
1 3400JF Aerator 1
2 Float 242001 1
3 1/4-20 x 3 1/2” Phillips Pan Head
Screw
251210 4
4 1/4” split washers 840537 7
5 1/4” (3/4” OD) Flat Washer 251300 10
6 1/4 -20 x 1-3/4” Hex Head Bolt 475630 3
7 Bottom Screen Section 361540 3
8 1/4”-20 Nut 840536 3
9 #8 nut 771034 6
10 #8 at washer 361543 12
11 #8 lock washer 771033 6
12 #8 x 3/4” screw 361545 6
Mooring ropes 990700 2
