Kasco 3400JF - 3400 JF, 3400 HJF Assembly

5
B
3
4
5
C
9
10 10
11
12
E
6
5
5
4
8

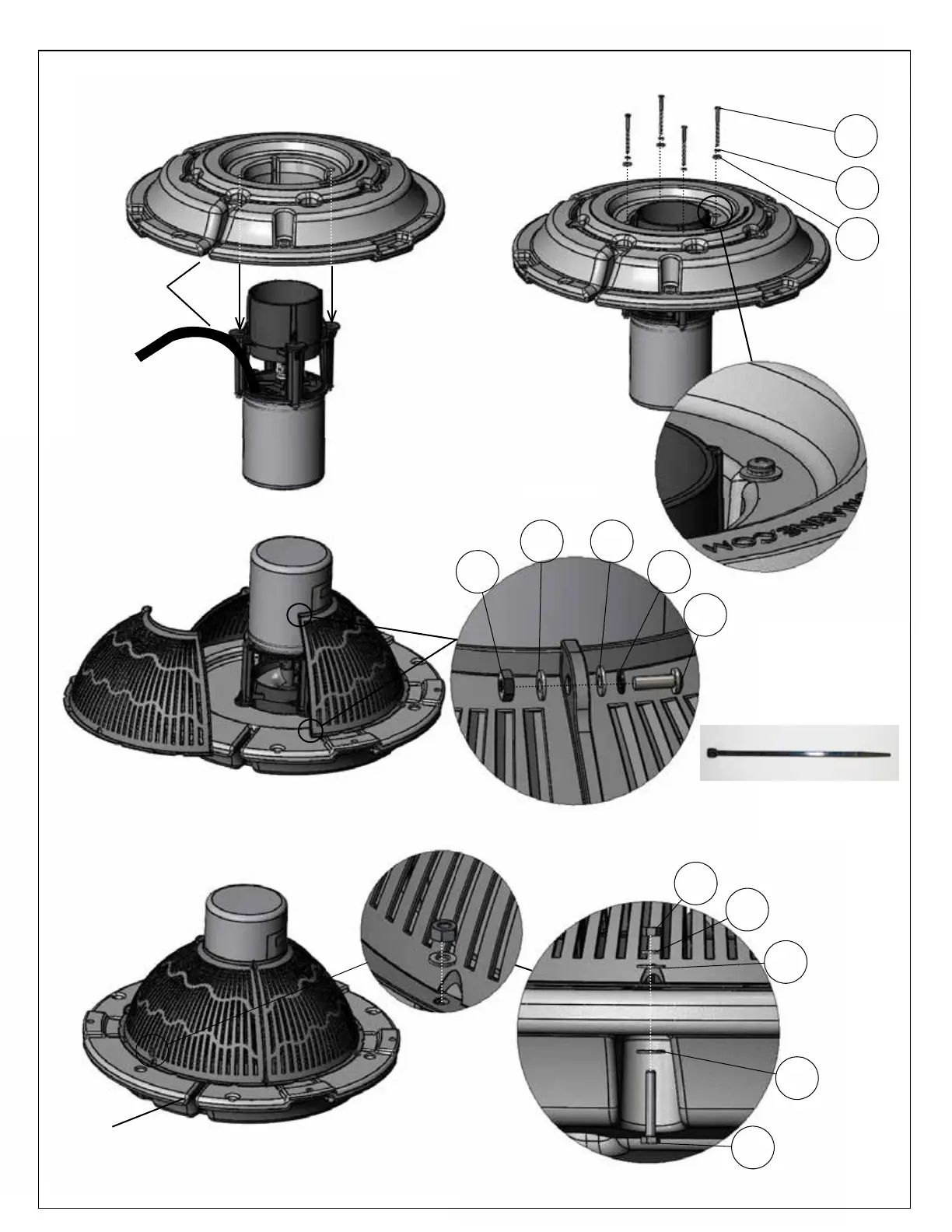

3400JF, 3400HJF Assembly
1. Rest the oat on
the 4 legs of the
housing.
Align power
cord with notch
Align bolt holes
with legs
2. Lock washer goes
between bolt and
at washer. Tighten
down in 4 places
3. Turn over. Bring
bottom screen
sections together
4. Tighten down in 6
places to hold the
screen together.
For quicker assembly:
Use cable tie instead
5. Secure the bottom screen
to the oat in 3 places.
Make sure cord is
sticking out of notch
