Kasco 3400JF - 4400 JF, 4400 HJF Assembly

8
B
6
3
4
5
C
10
11 11
12
13
E
7
5
5
4
9
H

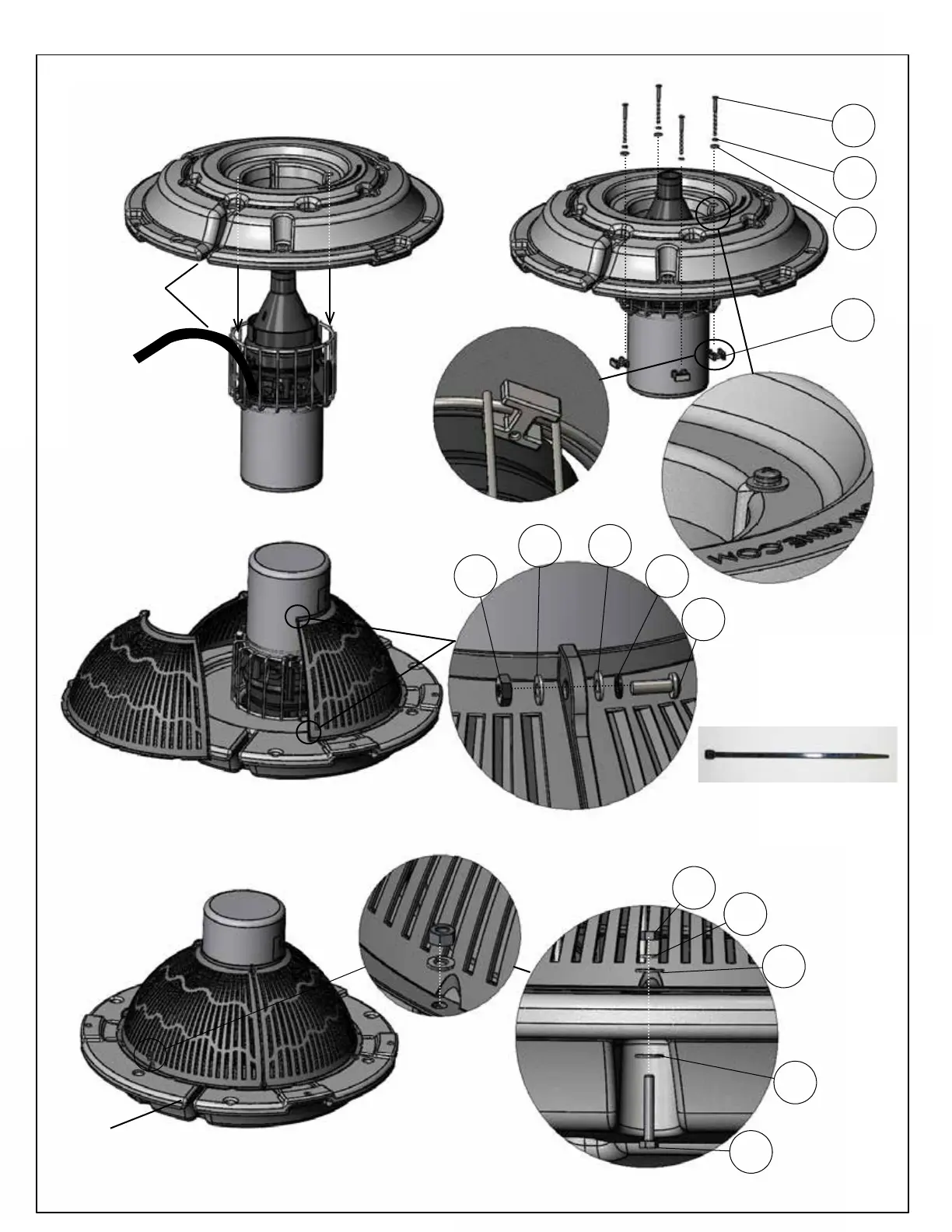

4400JF, 4400HJF Assembly
1. Rest the oat on
the Cage
Align power
cord with notch
2. Lock washer goes
between bolt and
at washer. Tighten
down in 4 places to
the oat retaining
clips
3. Turn over. Bring
bottom screen
sections together
4. Tighten down in 6
places to hold the
screen together.
For quicker assembly:
Use cable tie instead
5. Secure the bottom screen
to the oat in 3 places.
Make sure cord is
sticking out of notch
Secure to top
ring of cage
