WLAN VDSL Gateway User Manual
16

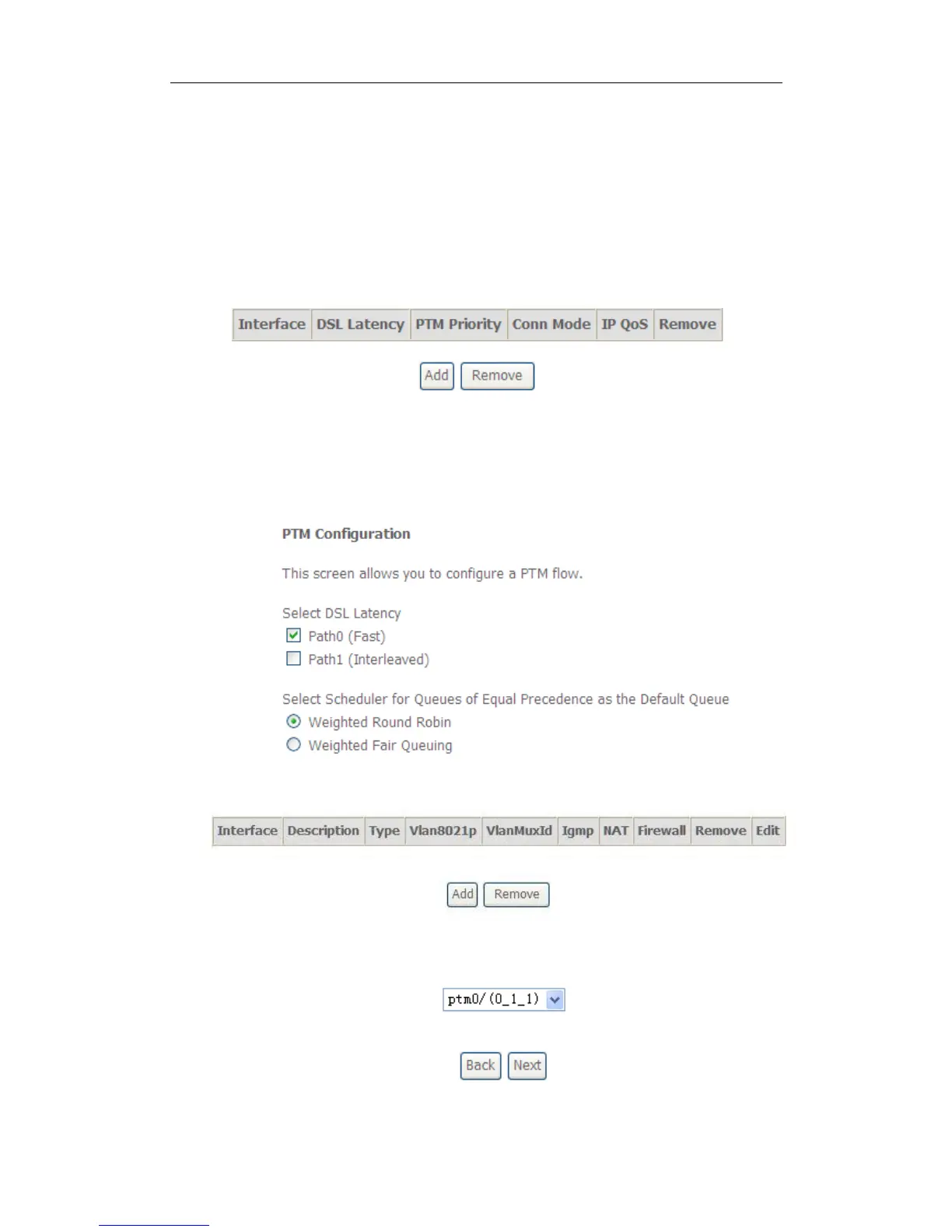

5.2.2 VDSL Setup
From home page, you can find Advanced Setup option on the left router
configuration page.
1. From Layer2 Interface, click PTM Interface. you can set it up according to
the following steps. You Choose Add, or Remove to configure DSL PTM
interfaces.
2.Click Add to configure PTM Priority, select DSL latency and select connection
mode according to your local occasion. After the configuration, you need to click
Apply/Save.
3. Click WAN Service from the left menu.
4.Click Add to select a layer 2 interface for this service and then click Next.
