1 Hardware Description

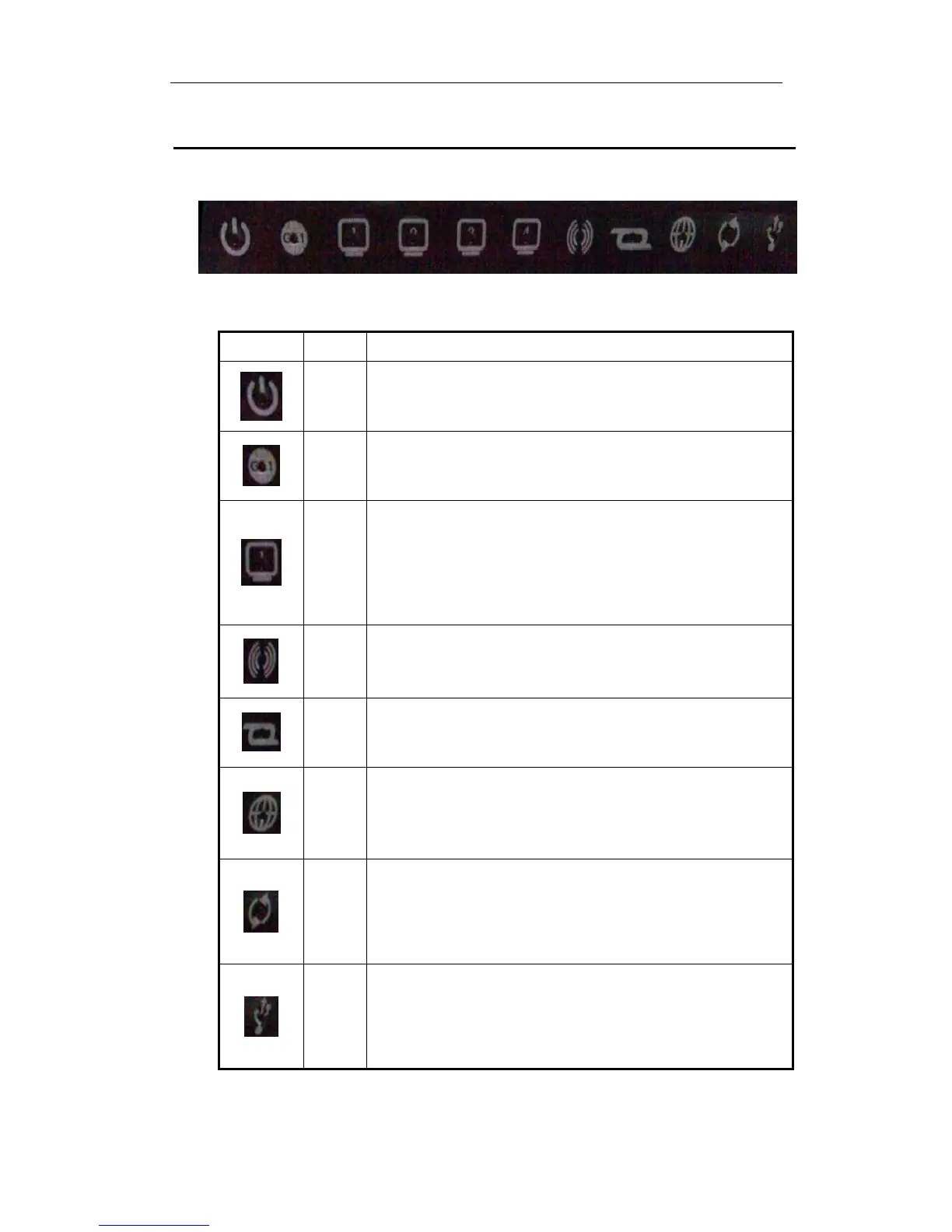

Front Panel
LED
Color
Function
Green
On: Power on
Off: No power
Green
On: GE LAN port link established and active via LAN port
Blinking: DSL data activity occurs
Off: No GE LAN port link via LAN port
Green
On: LAN link established and active via LAN port
Blinking: DSL data activity occurs
Off: No LAN link via LAN port
Green
On: The wireless module is ready and idle
Blinking: Data transmitting or receiving over WLAN
Off: The wireless is not installed.
Green
On: DSL link established and active
Quick blinking: DSL is trying to establish a connection
Slow blinking: No DSL link
Green
On: IP connected.
Blinking: IP connected and IP traffic is passing through the
device.
Off: DSL connnection not present.
Green
On: WPS connection is established
Blinking: Trying to establish a WPS connection
Off: WPS function is off or no WPS connection
Green
On: USB connection is established
Off: no USB connection
