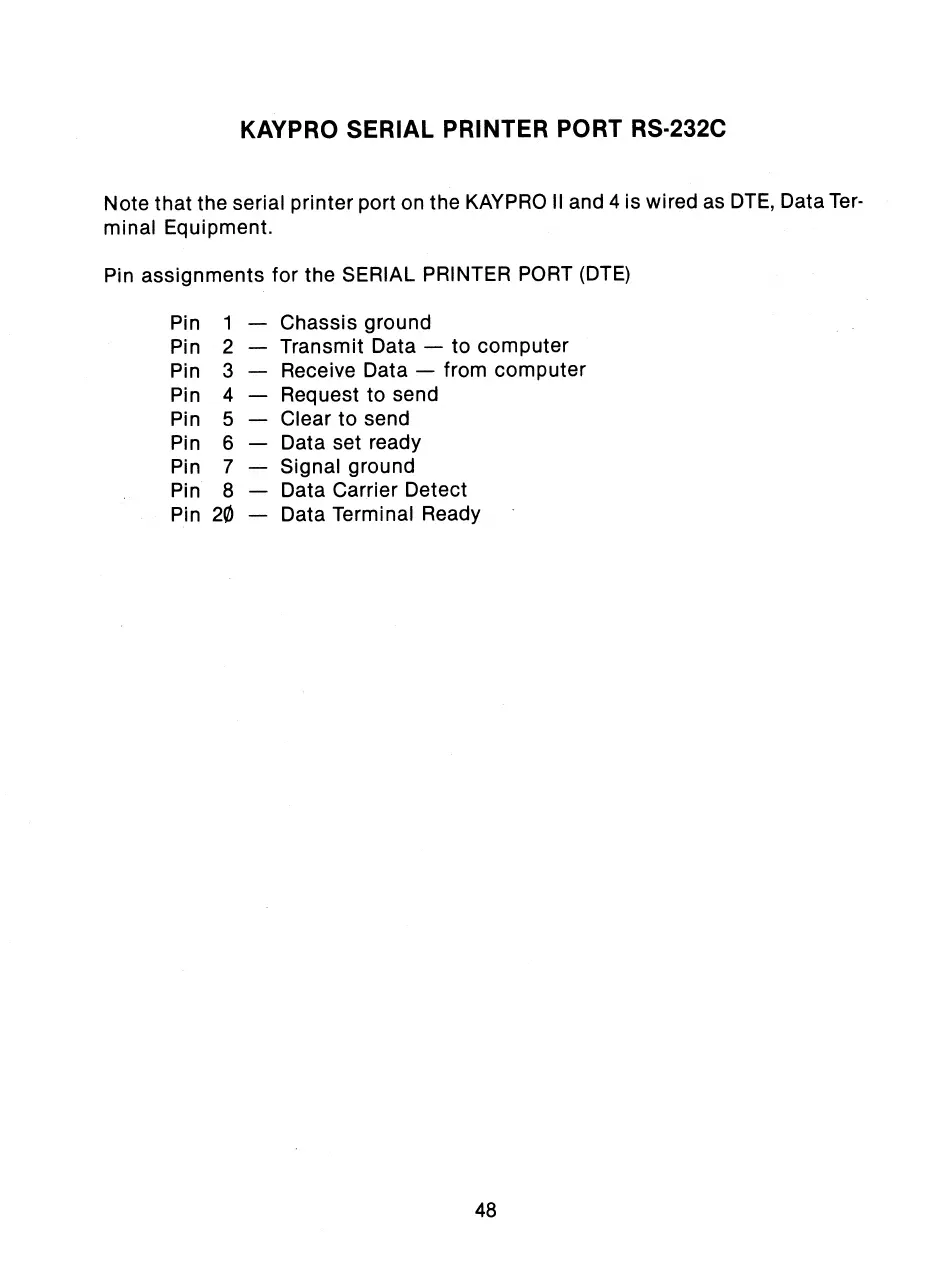

KAYPRO SERIAL PRINTER PORT RS-232C
Note that the serial printer port on the KAYPRO II and 4 is wired as DTE, Data Ter-
minal Equipment.
Pin assignments for the SERIAL PRINTER PORT (DTE)
Pin 1 — Chassis ground
Pin 2 — Transmit Data — to computer
Pin 3 — Receive Data — from computer
Pin 4 — Request to send
Pin 5
Clear to send
Pin 6 — Data set ready
Pin 7 -- Signal ground
Pin 8 — Data Carrier Detect
Pin 20 — Data Terminal Ready
48
