“The Right Control for Your Application.”
12095 NW 39 Street, Coral Springs, FL 33065-2516
KB Electronics, Inc. Phone: 954-346-4900; Fax: 954-346-3377
! "#"$ &%$'() *,+.-/01 &%$'(324 (5 "
#(617 "#"8 9%8'() *:+.-/01 &%$'(32; (5 "! "#"$ &%$'() *,+.-/01 &%$'(324 (5 "
#(617 "#"8 9%8'() *:+.-/01 &%$'(32; (5 "
(A40288) - Rev. E - 6/6/2005 - Z3562E00 Page 3 of 20

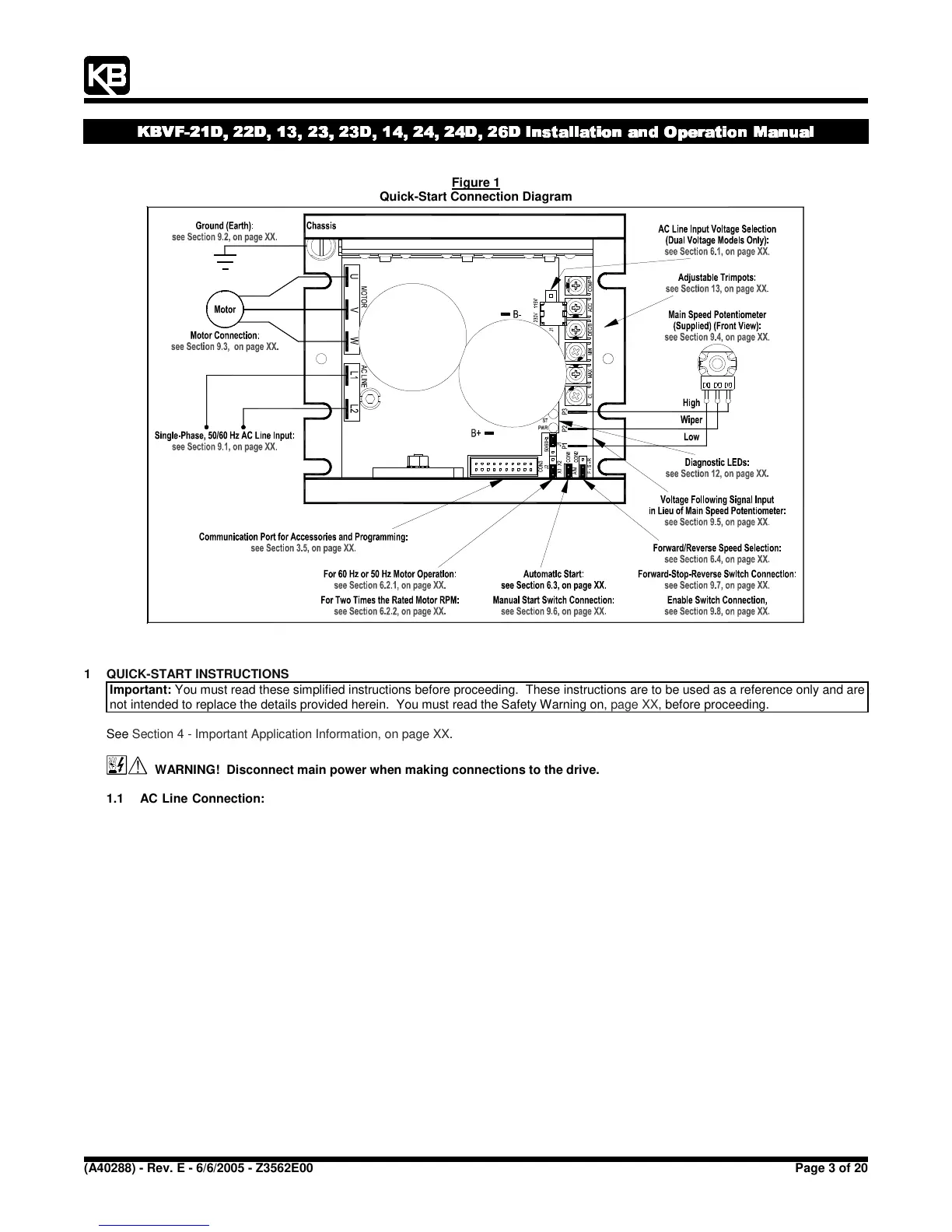

Figure 1
Quick-Start Connection Diagram
1 QUICK-START INSTRUCTIONS
Important: You must read these simplified instructions before proceeding. These instructions are to be used as a reference only and are
not intended to replace the details provided herein. You must read the Safety Warning on,
page XX, before proceeding.
See Section 4 - Important Application Information, on page XX.
WARNING! Disconnect main power when making connections to the drive.
1.1 AC Line Connection: Wire the single-phase AC line input to Terminals "L1" and "L2", as shown in Figure 16, on page XX. See
Section 9.1, on page XX.
Note: The rated AC line voltage of the drive must match the actual AC line input voltage. On Models KBVF-21D, 22D, 23D, 24D, 26D, the setting of
Jumper J1 (on upper PC board) must match the AC line input voltage.
Models KBVF-13, 14: Rated for 115 Volt AC line input only.
Models KBVF-23, 24: Rated for 208/230 Volt AC line input only.
Models KBVF-21D, 22D, 23D, 24D, 26D*: Rated for 208/230 Volt AC line input with Jumper J1 (on upper PC board) set to the
"230V" position (factory setting). Rated for 115 Volt AC line input with Jumper J1 (on upper PC board) set to the "115V" position ).
* On Model KBVF-26D, Jumper J1 is labeled "115VAC" and "230VAC".
1.2 Ground Connection: Connect the ground wire (earth) to the ground screw, as shown in
Figure 16, on page XX. See Section 9.2,
on page XX.
Note: Model KBVF-21D, due to its double insulated design, does not contain a ground screw.
1.3 AC Line Fusing: It is recommended that a fuse(s) or circuit breaker be installed in the AC line. Fuse each conductor that is not at
ground potential. For the recommended fuse size, see
Table 1, on page XX. Also see Section 10, on page XX.
